記錄一次docker叢集中搭建mongodb副本集

1.建立三個裝有mongo的docker容器，這裡使用docker-compose，配置如下

mongo:
    image: mongo
    command: mongod -f /etc/mongo.conf
    volumes:
      - ${DATA_PATH_HOST}/mongo:/data/db
      - ${CONF_PATH}/mongo/mongo_yaml.conf:/etc/mongo.conf
      - ${CONF_PATH}/mongo/access.key:/etc/access.key
    expose:
      - 27017
    ports:
      - 27017:27017
    networks:
      - backend

mongo2:
    image: mongo
    command: mongod -f /etc/mongo.conf
    volumes:
        - ${DATA_PATH_HOST}/mongo2:/data/db
        - ${CONF_PATH}/mongo/mongo_yaml.conf:/etc/mongo.conf
        - ${CONF_PATH}/mongo/access.key:/etc/access.key
    expose:
        - 27017
    ports:
        - 27018:27017
    networks:
        - backend

mongo3:
    image: mongo
    command: mongod -f /etc/mongo.conf
    volumes:
        - ${DATA_PATH_HOST}/mongo3:/data/db
        - ${CONF_PATH}/mongo/mongo_yaml.conf:/etc/mongo.conf
        - ${CONF_PATH}/mongo/access.key:/etc/access.key
    expose:
        - 27017
    ports:
        - 27019:27017
    networks:
        - backend

其中mongo.conf 為yaml格式的mongodb配置檔案，内容如下

processManagement:
   fork: false
net:
   bindIp: 127.0.0.1
   port: 27017
storage:
   dbPath: /data/db
systemLog:
   #destination: file
   #path: log/mongo27017.log
   logAppend: true
storage:
   journal:
      enabled: true
replication:
   oplogSizeMB: 500
   replSetName: "r1"
   secondaryIndexPrefetch: "all"

執行docker-compose up -d mongo mongo2 mongo3 建立三個mongo容器 并指定副本集 r1

2. 登入任意一台機器的MongoDB執行：因為是全新的副本集是以可以任意進入一台執行；要是有一台有資料，則需要在有資料上執行；要多台有資料則不能初始化。我個人是mongo中有資料但是mongo2和mong3是空的資料庫，是以我登入mongo1進行副本集初始化。

    執行指令 docker-compose exec mongo bash 進入容器

    執行指令  mongo  在容器内部連接配接mongo

    執行一下指令初始化副本集

> use admin
switched to db admin
> config = { "_id": "r1", "members": [{ "_id": 0, "host": "mongo:27017", "priority": 1 }, { "_id": 1, "host": "mongo2:27017", "priority": 1 }, { "_id": 2, "host": "mongo3:27017", "priority": 1 }] }
{
	"_id" : "r1",
	"members" : [
		{
			"_id" : 0,
			"host" : "mongo:27017",
			"priority" : 1
		},
		{
			"_id" : 1,
			"host" : "mongo2:27017",
			"priority" : 1
		},
		{
			"_id" : 2,
			"host" : "mongo3:27017",
			"priority" : 1
		}
	]
}
> rs.initiate(config)
{
	"ok" : 1,
	"operationTime" : Timestamp(1539830924, 1),
	"$clusterTime" : {
		"clusterTime" : Timestamp(1539830924, 1),
		"signature" : {
			"hash" : BinData(0,"AAAAAAAAAAAAAAAAAAAAAAAAAAA="),
			"keyId" : NumberLong(0)
		}
	}
}

副本集初始化完成，可以使用指令rs.status()檢視目前副本集狀态，至此mongodb副本集設定完成

3.加入鑒權機制，如果服務端需要開啟auth認證，則在啟動時通過keyFile三個節點之間的通信授權

使用指令生成keyFile檔案

openssl rand -base64 745 > /docker/conf/mongo/mongo-keyfile

ch

如果伺服器啟動時加入了參數--keyFile = /docker/conf/mongo/mongo-keyfile  則mongo服務端啟動時會自動開啟auth，故應先建立賬号。

建立了賬号  root   pass  auth庫為admin  （步驟省略）

停止所有節點，重新啟動mongo服務，并加上 --keyFile參數

發現報錯

mongo3_1     | 2018-10-24T06:13:06.323+0000 I CONTROL  [main] Automatically disabling TLS 1.0, to force-enable TLS 1.0 specify --sslDisabledProtocols 'none'

mongo3_1     | 2018-10-24T06:13:06.331+0000 I ACCESS   [main] permissions on /etc/access.key are too open

mongo2_1     | 2018-10-24T06:13:06.591+0000 I CONTROL  [main] Automatically disabling TLS 1.0, to force-enable TLS 1.0 specify --sslDisabledProtocols 'none'

mongo2_1     | 2018-10-24T06:13:06.605+0000 I ACCESS   [main] permissions on /etc/access.key are too open

mongo_1      | 2018-10-24T06:13:06.609+0000 I CONTROL  [main] Automatically disabling TLS 1.0, to force-enable TLS 1.0 specify --sslDisabledProtocols 'none'

mongo_1      | 2018-10-24T06:13:06.614+0000 I ACCESS   [main] permissions on /etc/access.key are too open

這是因為keyfile權限問題，執行指令将keyfile權限設定為600

chmod 600 /docker/conf/mongo/access.key

再次啟動，成功。

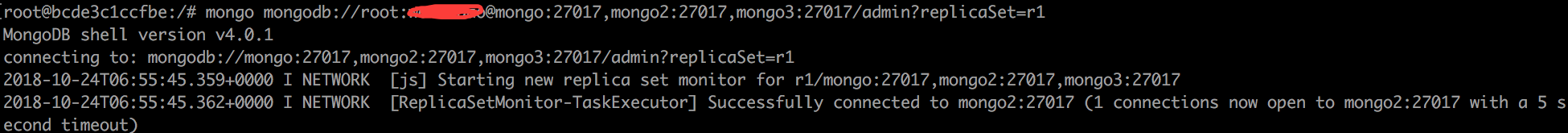

進入某一容器執行副本集連結操作，系統提示已成功連接配接到副本集
