【Arduino基礎教程】RS1307時鐘子產品

RS1307時鐘子產品

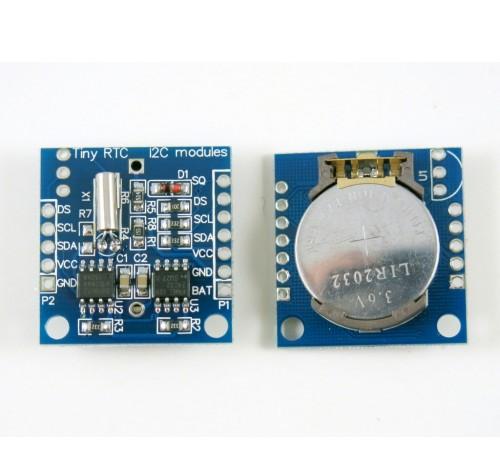

RS1307是一個低功耗的外置時鐘子產品，它可以讓你的項目即使在斷電的情況下，也能保證在重新啟動後走時正确。

所需材料

• 1x Arduino UNO
• 1x RS1307時鐘子產品
• 4x 跳線

接線示意圖

RS1307/RS1302與Arduino相連的接線圖

RS1307	Arduino
SDA	->	Analog A4
SCL		Analog A5
VCC		5V
GND

加載庫檔案

• 在 這裡 下載下傳RTClib庫，然後手動加載到Arduino IDE中。

示例代碼

#include <Wire.h>
#include "RTClib.h"

RTC_DS1307  rtc; // Create a RealTimeClock object

void setup() {
  Serial.begin(9600);
  Serial.println("YourDuino.com DS1307 Real Time Clock - Set / Run Utility");

 #if def AVR
   Wire.begin();
 #else
   Wire1.begin();
 #end if

  rtc.begin();
// Start the RTC library code
/*----( SET the date and time. Comment OUT these lines after setting )----*/
// Put these "//" in front of the line you do NOT want to use // following line sets the RTC to the date & time this sketch was compiled
  rtc.adjust(DateTime(F(__DATE__), F(__TIME__))); // This line sets the RTC with an explicit date & time, for example to set
// May 21, 2015 at 6pm you would call: (use 24 hour time)
// rtc.adjust(DateTime(2015, 5, 21, 18, 0, 0));
}
//--(end setup )---
void loop(){
  DateTime now = rtc.now(); // Read data from the RTC Chip
  Serial.print(now.year(), DEC);
  Serial.print('/');
  Serial.print(now.month(), DEC);
  Serial.print('/');
  Serial.print(now.day(), DEC);
  Serial.print(' ');
  Serial.print(now.hour(), DEC);
  Serial.print(':');
  Serial.print(now.minute(), DEC);
  Serial.print(':');
  Serial.print(now.second(), DEC);
  Serial.println();
  delay(3000);
}//--(end main loop )---
/*-----( Declare User-written Functions )-----*/
//NONE//*********( THE END )***********


輸出結果

---------------------( COPY )--------------------------
              2015/4/26 19:29:32
              2015/4/26 19:29:35
              2015/4/26 19:29:38
     -----------------( END COPY )----------------------
