Gitlab添加K8S叢集

介紹如何在Gitlab項目中添加K8S叢集，以便使用K8S叢集部署gitlab-runner幫我們運作gitlab的CI/CD。

參考官方文檔：https://docs.gitlab.com/ee/user/project/clusters/add_remove_clusters.html#add-existing-cluster

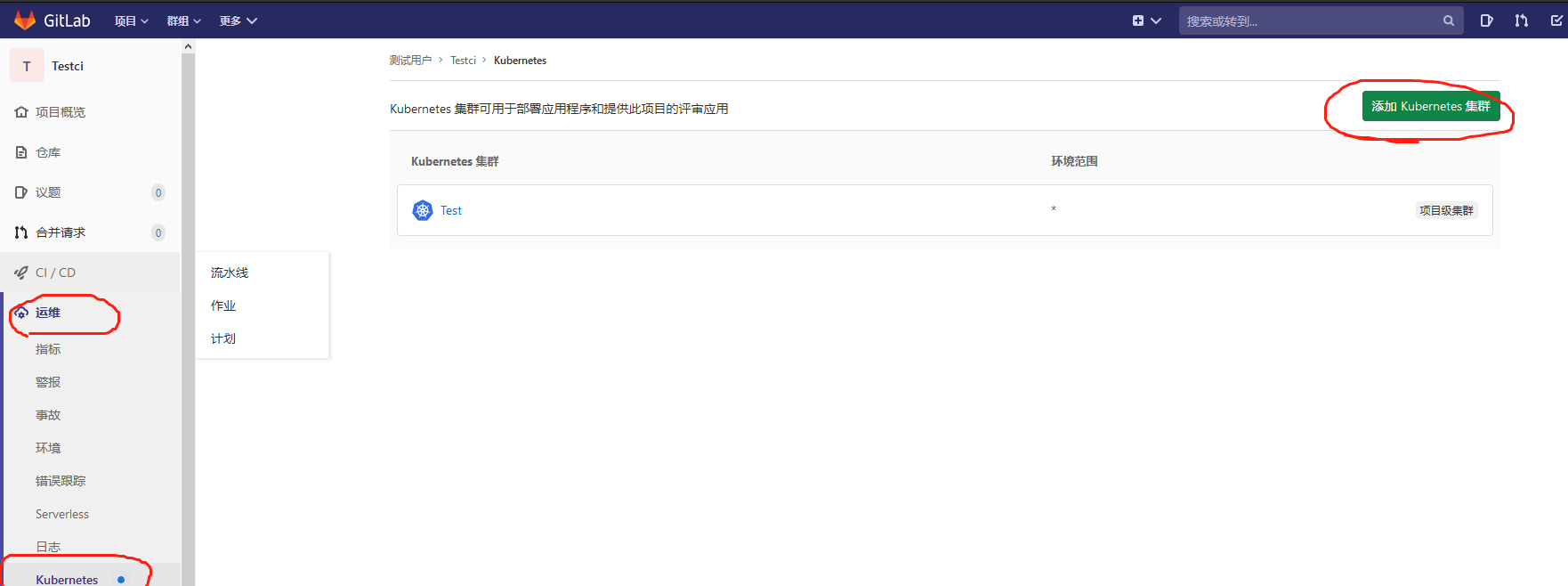

1.登入gitlab後，進入自己的項目首頁，菜單欄 Operations => Kubernetes => Add Kubernetes cluster，選擇頁簽 Add existing cluster。

2.隻需要擷取響應的值填錄到該表單即可。Kubernetes cluster name叢集名稱随意填，Project namespace可不填。

2.1 擷取API URL

運作以下指令得到輸出值：

kubectl cluster-info | grep 'Kubernetes master' | awk '/http/ {print $NF}'

2.2 擷取CA Certificate

kubectl get secrets # 擷取一個類似default-token-xxxxx的名稱，填寫在下面這個指令<secret name>
kubectl get secret <secret name> -o jsonpath="{['data']['ca\.crt']}" | base64 --decode

2.3 擷取Token

建立檔案gitlab-admin-service-account.yaml：

vim gitlab-admin-service-account.yaml

apiVersion: v1
kind: ServiceAccount
metadata:
  name: gitlab
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
  name: gitlab-admin
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
  - kind: ServiceAccount
    name: gitlab
    namespace: kube-system

kubectl apply -f gitlab-admin-service-account.yaml
kubectl -n kube-system describe secret $(kubectl -n kube-system get secret | grep gitlab | awk '{print $1}')

添加完成之後，可以在叢集中安裝你想用的插件了，例如gitlab-runner。

官方操作步驟：

Add existing cluster

If you have an existing Kubernetes cluster, you can add it to a project, group, or instance.

NOTE: Note: Kubernetes integration is not supported for arm64 clusters. See the issue Helm Tiller fails to install on arm64 cluster for details.

Existing Kubernetes cluster

To add a Kubernetes cluster to your project, group, or instance:

Navigate to your:
1. Project's {cloud-gear} Operations > Kubernetes page, for a project-level cluster.
2. Group's {cloud-gear} Kubernetes page, for a group-level cluster.
3. Admin Area > {cloud-gear} Kubernetes page, for an instance-level cluster.
Click Add Kubernetes cluster.
Click the Add existing cluster tab and fill in the details:
1. Kubernetes cluster name (required) - The name you wish to give the cluster.
2. Environment scope (required) - The associated environment to this cluster.
3. API URL (required) - It's the URL that GitLab uses to access the Kubernetes API. Kubernetes exposes several APIs, we want the "base" URL that is common to all of them. For example, https://kubernetes.example.com rather than https://kubernetes.example.com/api/v1
  .

  Get the API URL by running this command:
```
kubectl cluster-info | grep 'Kubernetes master' | awk '/http/ {print $NF}'

```
4. CA certificate (required) - A valid Kubernetes certificate is needed to authenticate to the cluster. We will use the certificate created by default.
  1. List the secrets with kubectl get secrets , and one should be named similar to default-token-xxxxx . Copy that token name for use below.
  2. Get the certificate by running this command:
```
kubectl get secret <secret name> -o jsonpath="{['data']['ca\.crt']}" | base64 --decode

```
    NOTE: Note: If the command returns the entire certificate chain, you need copy the root ca certificate at the bottom of the chain.
5. Token - GitLab authenticates against Kubernetes using service tokens, which are scoped to a particular namespace . The token used should belong to a service account with cluster-admin privileges. To create this service account:
  1. Create a file called gitlab-admin-service-account.yaml with contents:
```
apiVersion: v1
kind: ServiceAccount
metadata:
  name: gitlab
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
  name: gitlab-admin
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
  - kind: ServiceAccount
    name: gitlab
    namespace: kube-system

```
  2. Apply the service account and cluster role binding to your cluster:
```
kubectl apply -f gitlab-admin-service-account.yaml

```
    You will need the container.clusterRoleBindings.create permission to create cluster-level roles. If you do not have this permission, you can alternatively enable Basic Authentication and then run the kubectl apply command as an admin:
```
kubectl apply -f gitlab-admin-service-account.yaml --username=admin --password=<password>

```
    NOTE: Note: Basic Authentication can be turned on and the password credentials can be obtained using the Google Cloud Console.

    Output:
```
serviceaccount "gitlab" created
clusterrolebinding "gitlab-admin" created

```
  3. Retrieve the token for the gitlab service account:
```
kubectl -n kube-system describe secret $(kubectl -n kube-system get secret | grep gitlab | awk '{print $1}')

```
    Copy the <authentication_token> value from the output:
```
Name:         gitlab-token-b5zv4
Namespace:    kube-system
Labels:       <none>
Annotations:  kubernetes.io/service-account.name=gitlab
             kubernetes.io/service-account.uid=bcfe66ac-39be-11e8-97e8-026dce96b6e8

Type:  kubernetes.io/service-account-token

Data
====
ca.crt:     1025 bytes
namespace:  11 bytes
token:      <authentication_token>

```
  NOTE: Note: For GKE clusters, you will need the container.clusterRoleBindings.create permission to create a cluster role binding. You can follow the Google Cloud documentation to grant access.
6. GitLab-managed cluster - Leave this checked if you want GitLab to manage namespaces and service accounts for this cluster. See the Managed clusters section for more information.
7. Project namespace (optional) - You don't have to fill it in; by leaving it blank, GitLab will create one for you. Also:
  - Each project should have a unique namespace.
  - The project namespace is not necessarily the namespace of the secret, if you're using a secret with broader permissions, like the secret from default
  - You should not use default as the project namespace.
  - If you or someone created a secret specifically for the project, usually with limited permissions, the secret's namespace and project namespace may be the same.
Finally, click the Create Kubernetes cluster button.

After a couple of minutes, your cluster will be ready to go. You can now proceed to install some pre-defined applications.
