【産品功能】配置網卡從此與關機無緣，彈性網卡支援熱插拔功能

背景

在雲計算飛速發展的今天，使用者ECS伺服器身處的網絡環境越來越複雜，彈性網卡讓ECS伺服器完美遊走在日益複雜的網絡環境中。但是以前伺服器必須是

Stopped

狀态才可以進行彈性網卡(

ENI

)的插拔，這樣可能會影響運作在伺服器上的業務。現在很高興的向大家宣布：彈性網卡從今天開始支援熱插撥，即ECS伺服器隻要處在穩定狀态(

Running

Stopped

)，就可以對彈性網卡進行插拔操作。

彈性網卡熱插拔：控制台

• 控制台操作彈性網卡的位置：進入控制台 -> 雲伺服器 ECS -> 彈性網卡。

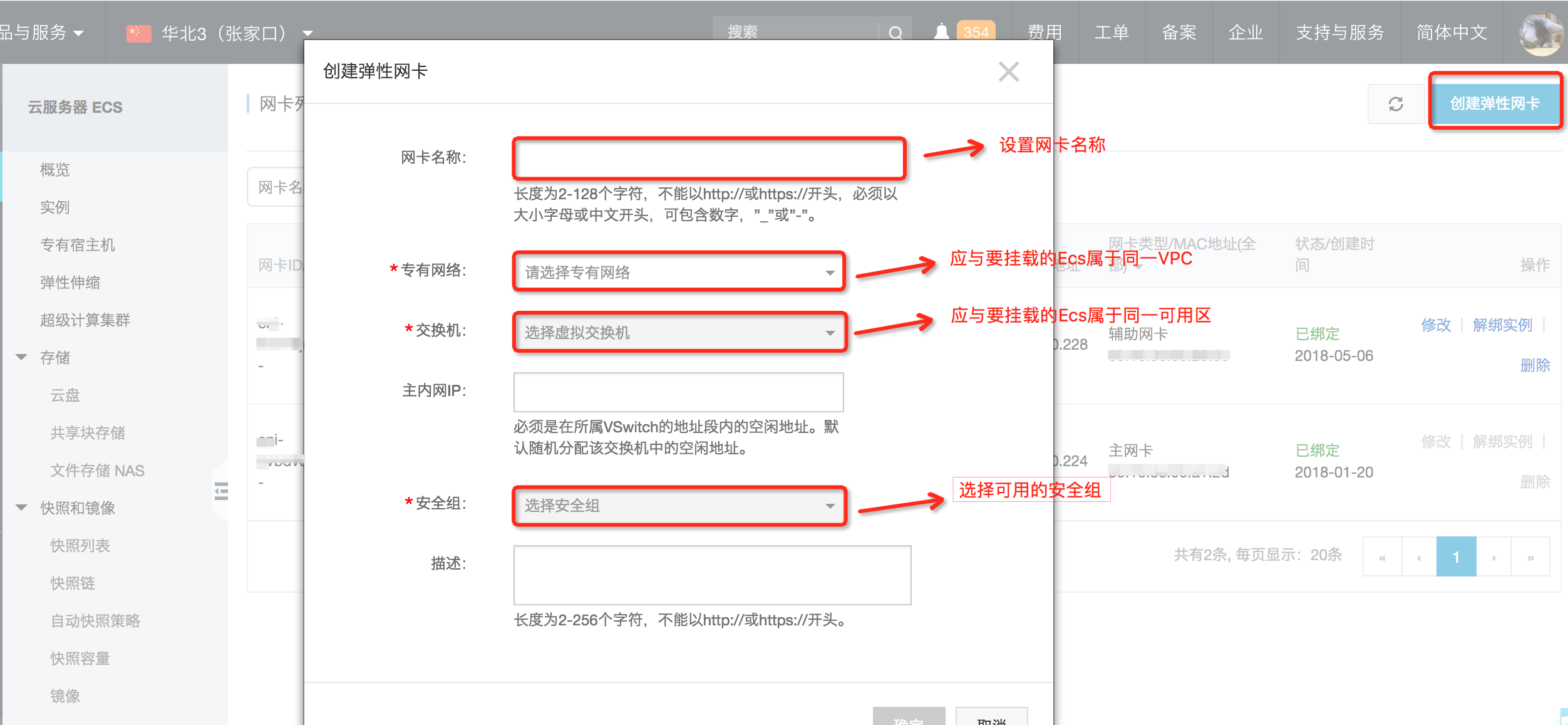

• 建立彈性網卡：點選

  建立彈性網卡

  按鈕，在彈窗中填寫網卡名稱，選擇專有網絡 交換機 安全組等資訊後建立彈性網卡。



• 熱挂載彈性網卡：點選彈性網卡對應的

  綁定執行個體

  按鈕，在彈窗中選擇要綁定執行個體。執行個體狀态隻要求為穩定狀态(

  Running

  Stopped

  )。



• 熱解除安裝彈性網卡：點選彈性網卡對應的

  解綁執行個體

  按鈕，确定即可解綁。執行個體狀态隻要求為穩定狀态(

  Running

  Stopped



彈性網卡熱插拔：OpenAPI

attach_eni detach_eni 分别可以根據彈性網卡ID，執行個體ID，進行彈性網卡的熱插拔。相關API參考幫助文檔：

挂載彈性網卡

，

解除安裝彈性網卡

。

#  coding=utf-8

# if the python sdk is not install using 'sudo pip install aliyun-python-sdk-ecs'
# if the python sdk is install using 'sudo pip install --upgrade aliyun-python-sdk-ecs'
# make sure the sdk version is 4.7.1, you can use command 'pip show aliyun-python-sdk-ecs' to check

import json
import logging

from aliyunsdkcore import client
from aliyunsdkecs.request.v20140526.CreateNetworkInterfaceRequest import CreateNetworkInterfaceRequest
from aliyunsdkecs.request.v20140526.AttachNetworkInterfaceRequest import AttachNetworkInterfaceRequest
from aliyunsdkecs.request.v20140526.DetachNetworkInterfaceRequest import DetachNetworkInterfaceRequest
from aliyunsdkecs.request.v20140526.DeleteNetworkInterfaceRequest import DeleteNetworkInterfaceRequest

# configuration the log output formatter, if you want to save the output to file,
# append ",filename='ecs_invoke.log'" after datefmt.

logging.basicConfig(level=logging.INFO,
                    format='%(asctime)s %(filename)s[line:%(lineno)d] %(levelname)s %(message)s',
                    datefmt='%a, %d %b %Y %H:%M:%S')


# send open api request
def _send_request(request):
    request.set_accept_format('json')
    try:
        response_str = clt.do_action(request)
        logging.info(response_str)
        response_detail = json.loads(response_str)
        return response_detail
    except Exception as e:
        logging.error(e)


# create eni
def create_eni(vSwitchId, securityGroupId, networkInterfaceName=None, primaryIpAddress=None, description=None,
               clientToken=None):
    request = CreateNetworkInterfaceRequest()
    request.set_VSwitchId(vSwitchId)
    request.set_SecurityGroupId(securityGroupId)
    if (networkInterfaceName != None):
        request.set_NetworkInterfaceName(networkInterfaceName)
    if (primaryIpAddress != None):
        request.set_PrimaryIpAddress(primaryIpAddress)
    if (description != None):
        request.set_Description(description)
    if (clientToken != None):
        request.set_ClientToken(clientToken)
    _send_request(request)


# attach eni to instance
def attach_eni(eniId, instanceId):
    request = AttachNetworkInterfaceRequest()
    request.set_NetworkInterfaceId(eniId)
    request.set_InstanceId(instanceId)
    _send_request(request)


# detach eni from instance
def detach_eni(eniId, instanceId):
    request = DetachNetworkInterfaceRequest()
    request.set_NetworkInterfaceId(eniId)
    request.set_InstanceId(instanceId)
    _send_request(request)


# delete eni
def delete_eni(eniId):
    request = DeleteNetworkInterfaceRequest()
    request.set_NetworkInterfaceId(eniId)
    _send_request(request)


if __name__ == '__main__':
    clt = client.AcsClient('Your Access Key Id', 'Your Access Key Secrect', 'cn-zhangjiakou')
    vSwitchId = "vsw-test"
    securityGroupId = "sg-test"
    # create_eni(vSwitchId=vSwitchId, securityGroupId=securityGroupId)

    attach_eniId = "eni-test"
    attach_instanceId = "i-test"
    # attach_eni(attach_eniId, attach_instanceId)

    detach_eniId = "eni-test"
    detach_instanceId = "i-test"
    # detach_eni(detach_eniId, detach_instanceId)

    delete_eniId = "eni-test"
    # delete_eni(delete_eniId)


小結

現在的彈性網卡熱插拔隻要求執行個體為穩定狀态即可，改進了以前執行個體隻能為

Stopped

狀态才能插拔彈性網卡的現狀。提升了使用者體驗，現在伺服器不用關機就能輕松配置彈性網卡，更加靈活實用。
