<b>位址彙總</b>

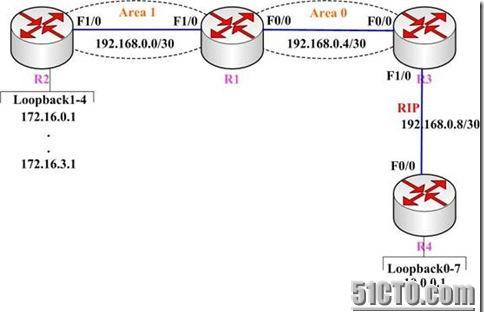

<b>拓撲圖</b>
<b></b>
<b>實作步驟</b>
1.配置路由器接口IP位址，配置OSPF協定，RIP協定，實作全網互通<b>。</b>
①配置R1
1）配置接口IP位址
R1(config)#interface e0/0-
R1(config-if)#ip add 192.168.0.1 255.255.255.252
R1(config-if)#no shutdown
R1(config-if)#exit
R1(config)#interface e0/1
R1(config-if)#ip address 192.168.0.5 255.255.255.252
R1(config)#interface loopback 0
R1(config-if)#ip address 1.1.1.1 255.255.255.255
2）配置路由
R1(config)#router ospf 1
R1(config-router)#router-id 1.1.1.1
R1(config-router)#network 192.168.0.1 0.0.0.0 area 1
R1(config-router)#network 192.168.0.5 0.0.0.0 area 0
②配置R2
1）配置接口IP位址及Loopback接口位址
R2(config)#interface e0/0
R2(config-if)#ip address 192.168.0.2 255.255.255.252
R2(config-if)#no shutdown
R2(config-if)#exit
R2(config)#interface loopback 0
R2(config-if)#ip address 2.2.2.2 255.255.255.255
R2(config)#interface loopback 1
R2(config-if)#ip address 172.16.0.1 255.255.255.0
R2(config)#interface loopback 2
R2(config-if)#ip address 172.16.1.1 255.255.255.0
R2(config)#interface loopback 3
R2(config-if)#ip address 172.16.2.1 255.255.255.0
R2(config)#interface loopback 4
R2(config-if)#ip address 172.16.3.1 255.255.255.0
R2(config)#router ospf 1
R2(config-router)#router-id 2.2.2.2
R2(config-router)#network 192.168.0.2 0.0.0.0 area 1
R2(config-router)#network 2.2.2.2 0.0.0.0 area 1
R2(config-router)#network 172.16.0.1 0.0.0.0 area 1
R2(config-router)#network 172.16.1.1 0.0.0.0 area 1
R2(config-router)#network 172.16.2.1 0.0.0.0 area 1
R2(config-router)#network 172.16.3.1 0.0.0.0 area 1
③配置R3
R3(config)#interface e0/0
R3(config-if)#ip address 192.168.0.9 255.255.255.252
R3(config-if)#no shutdown
R3(config-if)#exit
R3(config)#interface e0/1
R3(config-if)#ip address 192.168.0.6 255.255.255.252
R3(config)#interface loopback 0
R3(config-if)#ip address 3.3.3.3 255.255.255.255
R3(config)#router ospf 1
R3(config-router)#router-id 3.3.3.3
R3(config-router)#network 192.168.0.6 0.0.0.0 area 0
R3(config-router)#network 3.3.3.3 0.0.0.0 area 0
R3(config)#router rip
R3(config-router)#version 2
R3(config-router)#no auto-summary
R3(config-router)#network 192.168.0.8
④配置R4
R4(config)#interface e0/0
R4(config-if)#ip address 192.168.0.10 255.255.255.252
R4(config-if)#no shutdown
R4(config-if)#exit
R4(config)#interface loopback 0
R4(config-if)#ip address 10.0.0.1 255.255.255.0
R4(config)#interface loopback 1
R4(config-if)#ip address 10.0.1.1 255.255.255.0
R4(config)#interface loopback 2
R4(config-if)#ip address 10.0.2.1 255.255.255.0
R4(config)#interface loopback 3
R4(config-if)#ip address 10.0.3.1 255.255.255.0
R4(config)#interface loopback 4
R4(config-if)#ip address 10.0.4.1 255.255.255.0
R4(config)#interface loopback 5
R4(config-if)#ip address 10.0.5.1 255.255.255.0
R4(config)#interface loopback 6
R4(config-if)#ip address 10.0.6.1 255.255.255.0
R4(config)#interface loopback 7
R4(config-if)#ip address 10.0.7.1 255.255.255.0
R4(config)#router rip
R4(config-router)#version 2
R4(config-router)#no auto-summary
R4(config-router)#network 192.168.0.8
R4(config-router)#network 10.0.0.0
R4(config-router)#network 10.0.1.0
R4(config-router)#network 10.0.2.0
R4(config-router)#network 10.0.3.0
R4(config-router)#network 10.0.4.0
R4(config-router)#network 10.0.5.0
R4(config-router)#network 10.0.6.0
R4(config-router)#network 10.0.7.0
<b>2.</b><b>在</b><b>R3</b><b>（</b><b>HSBR</b><b>）上配置（</b><b>RIP</b><b>和</b><b>OSPF</b><b>）路由重分發</b>
R3(config-router)#redistribute ospf 1 metric 3
R3(config-router)#exit
R3(config-router)#redistribute rip subnets
<b>3.</b><b>檢視各路由器的路由表</b>
①R1
②R2
③R3
④|R4
<b>4.</b><b>配置路由彙總</b>
①在R1（ABR）上配置區域間彙總
R1(config-router)#area 1 range 172.16.0.0 255.255.255.252
②在R3（ASBR）上配置外部路由彙總
R3(config-router)#summary-address 10.0.0.0 255.255.248.0
5.檢視各路由器的路由表，與步驟3進行比較
④R4
