前面幾篇文章，我們完全領略了redis的string,hash,list,set資料類型的實作方法，相信對redis已經不再神秘。
本篇我們将介紹redis的最後一種資料類型: zset 的相關實作。
本篇過後，我們對redis的各種基礎功能，應該不會再有疑惑。有可能的話，我們後續将會對redis的進階功能的實作做解析。（如複制、哨兵模式、叢集模式）
回歸本篇主題，zset。zset 又稱有序集合(sorted set)，即是序版本的set。經過上篇的介紹，大家可以看到，redis的讀取功能相當有限，許多是基于随機數的方式進行讀取，其原因就是set是無序的。當set有序之後，查詢能力就會得到極大的提升。1. 可以根據下标進行定位元素; 2. 可以範圍查詢元素; 這是有序帶來的好處。
那麼，我們不妨先思考一下，如何實作有序？兩種方法：1. 根據添加順序定義，1、2、3... ; 2. 自定義排序值; 第1種方法實作簡單，添加時複雜度小，但是功能受限；第2種方法相對自由，對于每次插入都可能涉及重排序問題，但是查詢相對穩定，可以不必完全受限于系統實作;
同樣，我們以功能清單，到資料結構，再功能實作的思路，來解析redis的zset有序集合的實作方式吧。
零、redis zset相關操作方法
zset: Redis 有序集合是string類型元素的集合,且不允許重複的成員。每個元素都會關聯一個double類型的分數，通過分數來為集合中的成員進行從小到大的排序。
使用場景如: 儲存任務隊列，該隊列由背景定時掃描; 排行榜;
從官方手冊上查到相關使用方法如下：
1> ZADD key score1 member1 [score2 member2]
功能: 向有序集合添加一個或多個成員，或者更新已存在成員的分數
傳回值: 添加成功的元素個數(已存在的添加不成功)
2> ZCARD key
功能: 擷取有序集合的成員數
傳回值: 元素個數或0
3> ZCOUNT key min max
功能: 計算在有序集合中指定區間分數的成員數
傳回值: 區間内的元素個數
4> ZINCRBY key increment member
功能: 有序集合中對指定成員的分數加上增量 increment
傳回值: member增加後的分數
5> ZINTERSTORE destination numkeys key [key ...]
功能: 計算給定的一個或多個有序集的交集并将結果集存儲在新的有序集合 key 中
傳回值: 交集元素個數
6> ZLEXCOUNT key min max
功能: 在有序集合中計算指定字典區間内成員數量
7> ZRANGE key start stop [WITHSCORES]
功能: 通過索引區間傳回有序集合指定區間内的成員
傳回值: 區間内元素清單
8> ZRANGEBYLEX key min max [LIMIT offset count]
功能: 通過字典區間傳回有序集合的成員
9> ZRANGEBYSCORE key min max [WITHSCORES] [LIMIT]
功能: 通過分數傳回有序集合指定區間内的成員
10> ZRANK key member
功能: 傳回有序集合中指定成員的索引
傳回值: member的排名或者 nil
11> ZREM key member [member ...]
功能: 移除有序集合中的一個或多個成員
傳回值: 成功移除的元素個數
12> ZREMRANGEBYLEX key min max
功能: 移除有序集合中給定的字典區間的所有成員
13> ZREMRANGEBYRANK key start stop
功能: 移除有序集合中給定的排名區間的所有成員
14> ZREMRANGEBYSCORE key min max
功能: 移除有序集合中給定的分數區間的所有成員
15> ZREVRANGE key start stop [WITHSCORES]
功能: 傳回有序集中指定區間内的成員，通過索引，分數從高到低
傳回值: 區間内元素清單及分數
16> ZREVRANGEBYSCORE key max min [WITHSCORES]
功能: 傳回有序集中指定分數區間内的成員，分數從高到低排序
17> ZREVRANK key member
功能: 傳回有序集合中指定成員的排名，有序內建員按分數值遞減(從大到小)排序
傳回值: member排名或者 nil
18> ZSCORE key member
功能: 傳回有序集中，成員的分數值
傳回值: member分數
19> ZUNIONSTORE destination numkeys key [key ...]
功能: 計算給定的一個或多個有序集的并集，并存儲在新的 key 中
傳回值: 存儲到新key的元素個數
20> ZSCAN key cursor [MATCH pattern] [COUNT count]
功能: 疊代有序集合中的元素（包括元素成員和元素分值）
傳回值: 元素清單
21> ZPOPMAX/ZPOPMIN/BZPOPMAX/BZPOPMIN
一、zset 相關資料結構
zset 的實作，使用了 ziplist, zskiplist 和 dict 進行實作。
/* ZSETs use a specialized version of Skiplists */
typedef struct zskiplistNode {
sds ele;
double score;
struct zskiplistNode *backward;
struct zskiplistLevel {
struct zskiplistNode *forward;
unsigned int span;
} level[];
} zskiplistNode;
// 跳躍連結清單
typedef struct zskiplist {
struct zskiplistNode *header, *tail;
unsigned long length;
int level;
} zskiplist;
// zset 主資料結構，dict + zskiplist
typedef struct zset {
dict *dict;
zskiplist *zsl;
} zset;
// zset 在合适場景下，将先使用 ziplist 存儲資料
typedef struct zlentry {
unsigned int prevrawlensize, prevrawlen;
unsigned int lensize, len;
unsigned int headersize;
unsigned char encoding;
unsigned char *p;
} zlentry; 二、zadd 添加成員操作
從添加實作中，我們可以完整領略資料結構的運用。
// 用法: ZADD key score1 member1 [score2 member2]
// t_zset.c
void zaddCommand(client *c) {
// zadd 的多個參數變形, 使用 flags 進行區分複用
zaddGenericCommand(c,ZADD_NONE);
}
void zaddGenericCommand(client *c, int flags) {
static char *nanerr = "resulting score is not a number (NaN)";
robj *key = c->argv[1];
robj *zobj;
sds ele;
double score = 0, *scores = NULL, curscore = 0.0;
int j, elements;
int scoreidx = 0;
/* The following vars are used in order to track what the command actually
* did during the execution, to reply to the client and to trigger the
* notification of keyspace change. */
int added = 0; /* Number of new elements added. */
int updated = 0; /* Number of elements with updated score. */
int processed = 0; /* Number of elements processed, may remain zero with
options like XX. */
/* Parse options. At the end 'scoreidx' is set to the argument position
* of the score of the first score-element pair. */
// 從第三位置開始嘗試解析特殊辨別（用法規範）
// 按位與到 flags 中
scoreidx = 2;
while(scoreidx < c->argc) {
char *opt = c->argv[scoreidx]->ptr;
// NX: 不更新已存在的元素，隻做添加操作
if (!strcasecmp(opt,"nx")) flags |= ZADD_NX;
// XX: 隻做更新操作，不做添加操作
else if (!strcasecmp(opt,"xx")) flags |= ZADD_XX;
// CH: 将傳回值從添加的新元素數修改為已更改元素的總數。 更改的元素是第添加的新元素以及已為其更新分數的現有元素。 是以，指令行中指定的具有與過去相同分數的元素将不計算在内。 注意：通常，ZADD的傳回值僅計算添加的新元素的數量。
else if (!strcasecmp(opt,"ch")) flags |= ZADD_CH;
// INCR: 使用指定元素增加指定分數, 與 ZINCRBY 類似，此場景下，隻允許操作一個元素
else if (!strcasecmp(opt,"incr")) flags |= ZADD_INCR;
else break;
scoreidx++;
}
/* Turn options into simple to check vars. */
int incr = (flags & ZADD_INCR) != 0;
int nx = (flags & ZADD_NX) != 0;
int xx = (flags & ZADD_XX) != 0;
int ch = (flags & ZADD_CH) != 0;
/* After the options, we expect to have an even number of args, since
* we expect any number of score-element pairs. */
// 把特殊辨別去除後，剩下的參數清單應該2n數，即 score-element 一一配對的，否則文法錯誤
elements = c->argc-scoreidx;
if (elements % 2) {
addReply(c,shared.syntaxerr);
return;
}
elements /= 2; /* Now this holds the number of score-element pairs. */
/* Check for incompatible options. */
// 互斥項
if (nx && xx) {
addReplyError(c,
"XX and NX options at the same time are not compatible");
return;
}
// 文法檢查，INCR 隻能針對1個元素操作
if (incr && elements > 1) {
addReplyError(c,
"INCR option supports a single increment-element pair");
return;
}
/* Start parsing all the scores, we need to emit any syntax error
* before executing additions to the sorted set, as the command should
* either execute fully or nothing at all. */
// 解析所有的 score 值為double類型，指派到 scores 中
scores = zmalloc(sizeof(double)*elements);
for (j = 0; j < elements; j++) {
if (getDoubleFromObjectOrReply(c,c->argv[scoreidx+j*2],&scores[j],NULL)
!= C_OK) goto cleanup;
}
/* Lookup the key and create the sorted set if does not exist. */
// 文法檢查
zobj = lookupKeyWrite(c->db,key);
if (zobj == NULL) {
if (xx) goto reply_to_client; /* No key + XX option: nothing to do. */
// 建立原始key對象
// 預設 zset_max_ziplist_entries=OBJ_ZSET_MAX_ZIPLIST_ENTRIES: 128
// 預設 zset_max_ziplist_value=OBJ_ZSET_MAX_ZIPLIST_VALUE: 64
// 是以此處預設主要是檢查 第1個member的長度是大于 64
if (server.zset_max_ziplist_entries == 0 ||
server.zset_max_ziplist_value < sdslen(c->argv[scoreidx+1]->ptr))
{
// 2. 通用情況使用 dict+quicklist 型的zset
zobj = createZsetObject();
} else {
// 1. 元素比較小的情況下建立 ziplist 型的 zset
zobj = createZsetZiplistObject();
}
// 将對象添加到db中，後續所有操作針對 zobj 操作即是對db的操作 (引用傳遞)
dbAdd(c->db,key,zobj);
} else {
if (zobj->type != OBJ_ZSET) {
addReply(c,shared.wrongtypeerr);
goto cleanup;
}
}
// 一個個元素循環添加
for (j = 0; j < elements; j++) {
score = scores[j];
ele = c->argv[scoreidx+1+j*2]->ptr;
// 分目前zobj的編碼不同進行添加 (ziplist, skiplist)
// 3. ZIPLIST 編碼下的zset添加操作
if (zobj->encoding == OBJ_ENCODING_ZIPLIST) {
unsigned char *eptr;
// 3.1. 查找是否存在要添加的元素 （确定添加或更新）
if ((eptr = zzlFind(zobj->ptr,ele,&curscore)) != NULL) {
if (nx) continue;
if (incr) {
score += curscore;
if (isnan(score)) {
addReplyError(c,nanerr);
goto cleanup;
}
}
/* Remove and re-insert when score changed. */
if (score != curscore) {
// 3.2. 元素更新操作，先删再插入
zobj->ptr = zzlDelete(zobj->ptr,eptr);
zobj->ptr = zzlInsert(zobj->ptr,ele,score);
server.dirty++;
updated++;
}
processed++;
} else if (!xx) {
/* Optimize: check if the element is too large or the list
* becomes too long *before* executing zzlInsert. */
zobj->ptr = zzlInsert(zobj->ptr,ele,score);
// 5. 超過一條件後，做 ziplist->skiplist 轉換
// 預設 元素個數>128, 目前元素>64
// 這兩個判斷不會重複嗎？？ 兩個原因: 1. 轉換函數内部會重新判定; 2. 下一次循環時不會再走目前邏輯;
if (zzlLength(zobj->ptr) > server.zset_max_ziplist_entries)
zsetConvert(zobj,OBJ_ENCODING_SKIPLIST);
if (sdslen(ele) > server.zset_max_ziplist_value)
zsetConvert(zobj,OBJ_ENCODING_SKIPLIST);
server.dirty++;
added++;
processed++;
}
}
// 4. skiplist 下的zset元素添加
else if (zobj->encoding == OBJ_ENCODING_SKIPLIST) {
zset *zs = zobj->ptr;
zskiplistNode *znode;
dictEntry *de;
// 判斷ele是否已存在，使用hash查找，快速
de = dictFind(zs->dict,ele);
if (de != NULL) {
if (nx) continue;
curscore = *(double*)dictGetVal(de);
if (incr) {
score += curscore;
if (isnan(score)) {
addReplyError(c,nanerr);
/* Don't need to check if the sorted set is empty
* because we know it has at least one element. */
goto cleanup;
}
}
/* Remove and re-insert when score changes. */
// 先删再插入 skiplist
if (score != curscore) {
zskiplistNode *node;
serverAssert(zslDelete(zs->zsl,curscore,ele,&node));
znode = zslInsert(zs->zsl,score,node->ele);
/* We reused the node->ele SDS string, free the node now
* since zslInsert created a new one. */
node->ele = NULL;
zslFreeNode(node);
/* Note that we did not removed the original element from
* the hash table representing the sorted set, so we just
* update the score. */
// 更新dict中的分數引用
dictGetVal(de) = &znode->score; /* Update score ptr. */
server.dirty++;
updated++;
}
processed++;
} else if (!xx) {
ele = sdsdup(ele);
znode = zslInsert(zs->zsl,score,ele);
// 添加skiplist的同時，也往 dict 中添加一份資料，因為hash的查找永遠是最快的
serverAssert(dictAdd(zs->dict,ele,&znode->score) == DICT_OK);
server.dirty++;
added++;
processed++;
}
} else {
serverPanic("Unknown sorted set encoding");
}
}
reply_to_client:
if (incr) { /* ZINCRBY or INCR option. */
if (processed)
addReplyDouble(c,score);
else
addReply(c,shared.nullbulk);
} else { /* ZADD. */
addReplyLongLong(c,ch ? added+updated : added);
}
cleanup:
zfree(scores);
if (added || updated) {
signalModifiedKey(c->db,key);
notifyKeyspaceEvent(NOTIFY_ZSET,
incr ? "zincr" : "zadd", key, c->db->id);
}
}
// 1. 元素比較小的情況下建立 ziplist 型的 zset
// object.c, 建立ziplist 的zset
robj *createZsetZiplistObject(void) {
unsigned char *zl = ziplistNew();
robj *o = createObject(OBJ_ZSET,zl);
o->encoding = OBJ_ENCODING_ZIPLIST;
return o;
}
// 2. 建立通用的 zset 執行個體
// object.c
robj *createZsetObject(void) {
zset *zs = zmalloc(sizeof(*zs));
robj *o;
// zsetDictType 稍有不同
zs->dict = dictCreate(&zsetDictType,NULL);
// 首次遇到 skiplist, 咱去瞅瞅是如何建立的
zs->zsl = zslCreate();
o = createObject(OBJ_ZSET,zs);
o->encoding = OBJ_ENCODING_SKIPLIST;
return o;
}
// server.c, zset建立時使用的dict類型，與hash有不同
/* Sorted sets hash (note: a skiplist is used in addition to the hash table) */
dictType zsetDictType = {
dictSdsHash, /* hash function */
NULL, /* key dup */
NULL, /* val dup */
dictSdsKeyCompare, /* key compare */
NULL, /* Note: SDS string shared & freed by skiplist */
NULL /* val destructor */
};
// 建立 skiplist 對象
/* Create a new skiplist. */
zskiplist *zslCreate(void) {
int j;
zskiplist *zsl;
zsl = zmalloc(sizeof(*zsl));
zsl->level = 1;
zsl->length = 0;
// 建立header節點，ZSKIPLIST_MAXLEVEL 32
zsl->header = zslCreateNode(ZSKIPLIST_MAXLEVEL,0,NULL);
// 初始化header
for (j = 0; j < ZSKIPLIST_MAXLEVEL; j++) {
zsl->header->level[j].forward = NULL;
zsl->header->level[j].span = 0;
}
zsl->header->backward = NULL;
zsl->tail = NULL;
return zsl;
}
/* Create a skiplist node with the specified number of levels.
* The SDS string 'ele' is referenced by the node after the call. */
zskiplistNode *zslCreateNode(int level, double score, sds ele) {
zskiplistNode *zn =
zmalloc(sizeof(*zn)+level*sizeof(struct zskiplistLevel));
zn->score = score;
zn->ele = ele;
return zn;
}
// 3. ZIPLIST 編碼下的zset添加操作
// 3.1. 查找是否存在要添加的元素 （确定添加或更新）
// t_zset.c, 查找指定ele
unsigned char *zzlFind(unsigned char *zl, sds ele, double *score) {
unsigned char *eptr = ziplistIndex(zl,0), *sptr;
// 周遊所有ziplist
// 可見，此時的ziplist并沒有表現出有序啊
while (eptr != NULL) {
// eptr 相當于是 key
// sptr 相當于score
sptr = ziplistNext(zl,eptr);
serverAssert(sptr != NULL);
if (ziplistCompare(eptr,(unsigned char*)ele,sdslen(ele))) {
/* Matching element, pull out score. */
// 找到相應的 key 後，解析下一值，即 score
if (score != NULL) *score = zzlGetScore(sptr);
return eptr;
}
/* Move to next element. */
// 移動兩次對象，才會到下一進制素(因為存儲是 key-score 相鄰存儲)
eptr = ziplistNext(zl,sptr);
}
return NULL;
}
// t_zset.c, 擷取元素的score
double zzlGetScore(unsigned char *sptr) {
unsigned char *vstr;
unsigned int vlen;
long long vlong;
char buf[128];
double score;
serverAssert(sptr != NULL);
serverAssert(ziplistGet(sptr,&vstr,&vlen,&vlong));
// 帶小數點不帶小數點
if (vstr) {
memcpy(buf,vstr,vlen);
buf[vlen] = '\0';
// 做類型轉換
score = strtod(buf,NULL);
} else {
score = vlong;
}
return score;
}
// 3.2. 元素更新操作，先删再插入
// t_zset.c
/* Delete (element,score) pair from ziplist. Use local copy of eptr because we
* don't want to modify the one given as argument. */
unsigned char *zzlDelete(unsigned char *zl, unsigned char *eptr) {
unsigned char *p = eptr;
/* TODO: add function to ziplist API to delete N elements from offset. */
zl = ziplistDelete(zl,&p);
zl = ziplistDelete(zl,&p);
return zl;
}
// 添加 ele-score 到 ziplist 中
/* Insert (element,score) pair in ziplist. This function assumes the element is
* not yet present in the list. */
unsigned char *zzlInsert(unsigned char *zl, sds ele, double score) {
unsigned char *eptr = ziplistIndex(zl,0), *sptr;
double s;
// 在上面查找時，我們看到ziplist也是周遊，以為是無序的ziplist
// 然而實際上，插入時是維護了順序的喲
while (eptr != NULL) {
sptr = ziplistNext(zl,eptr);
serverAssert(sptr != NULL);
s = zzlGetScore(sptr);
// 找到第一個比score大的位置，在其前面插入 ele-score
if (s > score) {
/* First element with score larger than score for element to be
* inserted. This means we should take its spot in the list to
* maintain ordering. */
zl = zzlInsertAt(zl,eptr,ele,score);
break;
} else if (s == score) {
/* Ensure lexicographical ordering for elements. */
// 當分數相同時，按字典順序排列
if (zzlCompareElements(eptr,(unsigned char*)ele,sdslen(ele)) > 0) {
zl = zzlInsertAt(zl,eptr,ele,score);
break;
}
}
/* Move to next element. */
eptr = ziplistNext(zl,sptr);
}
/* Push on tail of list when it was not yet inserted. */
// 以上周遊完成都沒有找到相應位置，說明目前score是最大值，将其插入尾部
if (eptr == NULL)
zl = zzlInsertAt(zl,NULL,ele,score);
return zl;
}
// 在eptr的前面插入 ele-score
unsigned char *zzlInsertAt(unsigned char *zl, unsigned char *eptr, sds ele, double score) {
unsigned char *sptr;
char scorebuf[128];
int scorelen;
size_t offset;
scorelen = d2string(scorebuf,sizeof(scorebuf),score);
if (eptr == NULL) {
// 直接插入到尾部
zl = ziplistPush(zl,(unsigned char*)ele,sdslen(ele),ZIPLIST_TAIL);
zl = ziplistPush(zl,(unsigned char*)scorebuf,scorelen,ZIPLIST_TAIL);
} else {
/* Keep offset relative to zl, as it might be re-allocated. */
offset = eptr-zl;
// 直接在 eptr 位置添加 ele, 其他元素後移
zl = ziplistInsert(zl,eptr,(unsigned char*)ele,sdslen(ele));
eptr = zl+offset;
/* Insert score after the element. */
// 此時的 eptr 已經插入ele之後的位置，後移一位後，就可以找到 score 的存儲位置
serverAssert((sptr = ziplistNext(zl,eptr)) != NULL);
zl = ziplistInsert(zl,sptr,(unsigned char*)scorebuf,scorelen);
}
return zl;
}
// 4. skiplist 下的zset元素添加
// 4.1. 添加元素
// t_zset.c, 添加 ele-score 到 skiplist 中
/* Insert a new node in the skiplist. Assumes the element does not already
* exist (up to the caller to enforce that). The skiplist takes ownership
* of the passed SDS string 'ele'. */
zskiplistNode *zslInsert(zskiplist *zsl, double score, sds ele) {
// ZSKIPLIST_MAXLEVEL 32
zskiplistNode *update[ZSKIPLIST_MAXLEVEL], *x;
unsigned int rank[ZSKIPLIST_MAXLEVEL];
int i, level;
serverAssert(!isnan(score));
x = zsl->header;
// 初始 zsl->level = 1
// 從header的最高層開始周遊
for (i = zsl->level-1; i >= 0; i--) {
/* store rank that is crossed to reach the insert position */
// 計算出每層可以插入的位置
rank[i] = i == (zsl->level-1) ? 0 : rank[i+1];
// 目前level的score小于需要添加的元素時，往前推進skiplist
while (x->level[i].forward &&
(x->level[i].forward->score < score ||
(x->level[i].forward->score == score &&
sdscmp(x->level[i].forward->ele,ele) < 0)))
{
rank[i] += x->level[i].span;
x = x->level[i].forward;
}
update[i] = x;
}
/* we assume the element is not already inside, since we allow duplicated
* scores, reinserting the same element should never happen since the
* caller of zslInsert() should test in the hash table if the element is
* already inside or not. */
// 得到一随機的level, 決定要寫的節點數
// 如果目前的level過小，則變更level, 重新初始化大的level
level = zslRandomLevel();
if (level > zsl->level) {
for (i = zsl->level; i < level; i++) {
rank[i] = 0;
update[i] = zsl->header;
update[i]->level[i].span = zsl->length;
}
zsl->level = level;
}
// 建構新的 skiplist 節點，為每一層節點添加同樣的資料
x = zslCreateNode(level,score,ele);
for (i = 0; i < level; i++) {
// 讓i層的節點與x關聯
x->level[i].forward = update[i]->level[i].forward;
update[i]->level[i].forward = x;
/* update span covered by update[i] as x is inserted here */
x->level[i].span = update[i]->level[i].span - (rank[0] - rank[i]);
update[i]->level[i].span = (rank[0] - rank[i]) + 1;
}
/* increment span for untouched levels */
// 如果目前level較小，則存在有的level未指派情況，需要主動+1
for (i = level; i < zsl->level; i++) {
update[i]->level[i].span++;
}
// 關聯好header後，設定backward指針
x->backward = (update[0] == zsl->header) ? NULL : update[0];
if (x->level[0].forward)
x->level[0].forward->backward = x;
else
// 同有後繼節點，說明是尾節點，指派tail
zsl->tail = x;
zsl->length++;
return x;
} ziplist添加沒啥好說的，skiplist可以稍微提提，大體步驟為四步:
1. 找位置, 從最高層開始, 判斷是否後繼節點小，如果小則直接在本層疊代，否則轉到下一層疊代; (每一層都要疊代至相應的位置)
2. 計算得到一新的随機level,用于決定目前節點的層級;
3. 依次對每一層與原跳表做關聯;
4. 設定backward指針;（雙向連結清單）

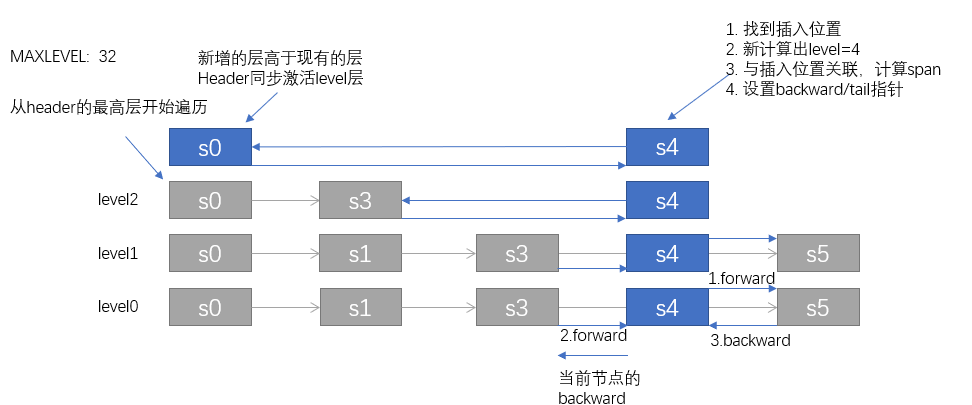

相對說，skiplist 還是有點抽象，我們畫個圖來描述下上面的操作：
// 補充，我們看一下随機level的計算算法
// t_zset.c
/* Returns a random level for the new skiplist node we are going to create.
* The return value of this function is between 1 and ZSKIPLIST_MAXLEVEL
* (both inclusive), with a powerlaw-alike distribution where higher
* levels are less likely to be returned. */
int zslRandomLevel(void) {
int level = 1;
// n次随機值得到 level, ZSKIPLIST_P:0.25
// 按随機機率，應該是有1/4的命中機率（如果不是呢？？）
while ((random()&0xFFFF) < (ZSKIPLIST_P * 0xFFFF))
level += 1;
return (level<ZSKIPLIST_MAXLEVEL) ? level : ZSKIPLIST_MAXLEVEL;
} 先看插入過程的目的，主要是為了先了解 skiplist 的構造過程。而在zset的更新過程，是先删除原節點，再進行插入的這麼個過程。是以咱們還是有必要再來看看 skiplist 的删除節點過程。
// t_zset.c, 删除skiplist的指定節點
/* Delete an element with matching score/element from the skiplist.
* The function returns 1 if the node was found and deleted, otherwise
* 0 is returned.
*
* If 'node' is NULL the deleted node is freed by zslFreeNode(), otherwise
* it is not freed (but just unlinked) and *node is set to the node pointer,
* so that it is possible for the caller to reuse the node (including the
* referenced SDS string at node->ele). */
int zslDelete(zskiplist *zsl, double score, sds ele, zskiplistNode **node) {
zskiplistNode *update[ZSKIPLIST_MAXLEVEL], *x;
int i;
x = zsl->header;
// 與添加時查找對應位置一樣，先進行周遊，找到最每個層級最接近 node 的位置
for (i = zsl->level-1; i >= 0; i--) {
while (x->level[i].forward &&
(x->level[i].forward->score < score ||
(x->level[i].forward->score == score &&
sdscmp(x->level[i].forward->ele,ele) < 0)))
{
x = x->level[i].forward;
}
update[i] = x;
}
/* We may have multiple elements with the same score, what we need
* is to find the element with both the right score and object. */
// 進行精确比對，相同才進行删除
x = x->level[0].forward;
if (x && score == x->score && sdscmp(x->ele,ele) == 0) {
// 執行删除動作
zslDeleteNode(zsl, x, update);
if (!node)
zslFreeNode(x);
else
*node = x;
return 1;
}
return 0; /* not found */
}
// 删除 x對應的節點
// update 是node的每一層級對應的前驅節點
/* Internal function used by zslDelete, zslDeleteByScore and zslDeleteByRank */
void zslDeleteNode(zskiplist *zsl, zskiplistNode *x, zskiplistNode **update) {
int i;
for (i = 0; i < zsl->level; i++) {
if (update[i]->level[i].forward == x) {
update[i]->level[i].span += x->level[i].span - 1;
update[i]->level[i].forward = x->level[i].forward;
} else {
// 不相等說明該層不存在指向 x 的引用
update[i]->level[i].span -= 1;
}
}
// 更新第0層尾節點指針
if (x->level[0].forward) {
x->level[0].forward->backward = x->backward;
} else {
zsl->tail = x->backward;
}
// 降低 skiplist 的層級，直到第一個非空的節點為止
while(zsl->level > 1 && zsl->header->level[zsl->level-1].forward == NULL)
zsl->level--;
zsl->length--;
} skiplist 删除過程的示意圖如下：
最後，我們再來看另一種情況，即zset發生編碼轉換時，是如何做的。即如何從 ziplist 轉換到 skiplist 中呢？
// t_zset.c, 編碼類型轉換
void zsetConvert(robj *zobj, int encoding) {
zset *zs;
zskiplistNode *node, *next;
sds ele;
double score;
// 編碼相同，直接傳回
if (zobj->encoding == encoding) return;
// ziplist -> skiplist 轉換
if (zobj->encoding == OBJ_ENCODING_ZIPLIST) {
unsigned char *zl = zobj->ptr;
unsigned char *eptr, *sptr;
unsigned char *vstr;
unsigned int vlen;
long long vlong;
if (encoding != OBJ_ENCODING_SKIPLIST)
serverPanic("Unknown target encoding");
zs = zmalloc(sizeof(*zs));
zs->dict = dictCreate(&zsetDictType,NULL);
zs->zsl = zslCreate();
eptr = ziplistIndex(zl,0);
serverAssertWithInfo(NULL,zobj,eptr != NULL);
sptr = ziplistNext(zl,eptr);
serverAssertWithInfo(NULL,zobj,sptr != NULL);
while (eptr != NULL) {
score = zzlGetScore(sptr);
serverAssertWithInfo(NULL,zobj,ziplistGet(eptr,&vstr,&vlen,&vlong));
if (vstr == NULL)
ele = sdsfromlonglong(vlong);
else
ele = sdsnewlen((char*)vstr,vlen);
// 依次插入 skiplist 和 dict 中即可
node = zslInsert(zs->zsl,score,ele);
serverAssert(dictAdd(zs->dict,ele,&node->score) == DICT_OK);
// zzlNext 封裝了同時疊代 eptr 和 sptr 方法
zzlNext(zl,&eptr,&sptr);
}
zfree(zobj->ptr);
zobj->ptr = zs;
zobj->encoding = OBJ_ENCODING_SKIPLIST;
}
// skiplist -> ziplist 逆向轉換
else if (zobj->encoding == OBJ_ENCODING_SKIPLIST) {
unsigned char *zl = ziplistNew();
if (encoding != OBJ_ENCODING_ZIPLIST)
serverPanic("Unknown target encoding");
/* Approach similar to zslFree(), since we want to free the skiplist at
* the same time as creating the ziplist. */
zs = zobj->ptr;
dictRelease(zs->dict);
node = zs->zsl->header->level[0].forward;
zfree(zs->zsl->header);
zfree(zs->zsl);
// 正向疊代轉換
while (node) {
zl = zzlInsertAt(zl,NULL,node->ele,node->score);
next = node->level[0].forward;
zslFreeNode(node);
node = next;
}
zfree(zs);
zobj->ptr = zl;
zobj->encoding = OBJ_ENCODING_ZIPLIST;
} else {
serverPanic("Unknown sorted set encoding");
}
}
// 基于ziplist, 同時疊代 ele-score
/* Move to next entry based on the values in eptr and sptr. Both are set to
* NULL when there is no next entry. */
void zzlNext(unsigned char *zl, unsigned char **eptr, unsigned char **sptr) {
unsigned char *_eptr, *_sptr;
serverAssert(*eptr != NULL && *sptr != NULL);
_eptr = ziplistNext(zl,*sptr);
if (_eptr != NULL) {
_sptr = ziplistNext(zl,_eptr);
serverAssert(_sptr != NULL);
} else {
/* No next entry. */
_sptr = NULL;
}
*eptr = _eptr;
*sptr = _sptr;
} 至此，整個添加過程結束。本身是不太複雜的，主要針對 ziplist 和 skiplist 的分别處理（注意有逆向編碼）。但為了講清整體關系，稍顯雜亂。
三、zrange 範圍查詢
範圍查詢功能，redis提供了好幾個，zrange/zrangebyscore/zrangebylex... 應該說查詢方式都不太一樣，不過我們也不必糾結這些，隻管理會大概就行。就挑一個以 下标進行範圍查詢的實作講解下就行。
// 用法: ZRANGE key start stop [WITHSCORES]
// t_zset.c
void zrangeCommand(client *c) {
zrangeGenericCommand(c,0);
}
void zrangeGenericCommand(client *c, int reverse) {
robj *key = c->argv[1];
robj *zobj;
int withscores = 0;
long start;
long end;
int llen;
int rangelen;
if ((getLongFromObjectOrReply(c, c->argv[2], &start, NULL) != C_OK) ||
(getLongFromObjectOrReply(c, c->argv[3], &end, NULL) != C_OK)) return;
if (c->argc == 5 && !strcasecmp(c->argv[4]->ptr,"withscores")) {
withscores = 1;
} else if (c->argc >= 5) {
addReply(c,shared.syntaxerr);
return;
}
if ((zobj = lookupKeyReadOrReply(c,key,shared.emptymultibulk)) == NULL
|| checkType(c,zobj,OBJ_ZSET)) return;
/* Sanitize indexes. */
// 小于0，則代表反向查詢，但實際的輸出順序不是按此值運算的（提供了 reverse 方法）
llen = zsetLength(zobj);
if (start < 0) start = llen+start;
if (end < 0) end = llen+end;
if (start < 0) start = 0;
/* Invariant: start >= 0, so this test will be true when end < 0.
* The range is empty when start > end or start >= length. */
if (start > end || start >= llen) {
addReply(c,shared.emptymultibulk);
return;
}
if (end >= llen) end = llen-1;
rangelen = (end-start)+1;
/* Return the result in form of a multi-bulk reply */
addReplyMultiBulkLen(c, withscores ? (rangelen*2) : rangelen);
// 同樣，分 ZIPLIST 和 SKIPLIST 編碼分别實作
if (zobj->encoding == OBJ_ENCODING_ZIPLIST) {
unsigned char *zl = zobj->ptr;
unsigned char *eptr, *sptr;
unsigned char *vstr;
unsigned int vlen;
long long vlong;
// ziplist 以 ele-score 方式存儲，是以步長是 2
if (reverse)
eptr = ziplistIndex(zl,-2-(2*start));
else
eptr = ziplistIndex(zl,2*start);
serverAssertWithInfo(c,zobj,eptr != NULL);
sptr = ziplistNext(zl,eptr);
// 依次疊代輸出
while (rangelen--) {
serverAssertWithInfo(c,zobj,eptr != NULL && sptr != NULL);
serverAssertWithInfo(c,zobj,ziplistGet(eptr,&vstr,&vlen,&vlong));
if (vstr == NULL)
addReplyBulkLongLong(c,vlong);
else
addReplyBulkCBuffer(c,vstr,vlen);
if (withscores)
addReplyDouble(c,zzlGetScore(sptr));
// ziplist 提供正向疊代，傳回疊代功能，其實就是 offset的加減問題
if (reverse)
zzlPrev(zl,&eptr,&sptr);
else
zzlNext(zl,&eptr,&sptr);
}
} else if (zobj->encoding == OBJ_ENCODING_SKIPLIST) {
zset *zs = zobj->ptr;
zskiplist *zsl = zs->zsl;
zskiplistNode *ln;
sds ele;
/* Check if starting point is trivial, before doing log(N) lookup. */
// 反向使用 tail 疊代，否則使用header疊代
if (reverse) {
ln = zsl->tail;
if (start > 0)
// 擷取下标元素應該隻是一個疊代循環問題,不過還是稍微細看一下skiplist實作
ln = zslGetElementByRank(zsl,llen-start);
} else {
ln = zsl->header->level[0].forward;
if (start > 0)
ln = zslGetElementByRank(zsl,start+1);
}
while(rangelen--) {
serverAssertWithInfo(c,zobj,ln != NULL);
ele = ln->ele;
addReplyBulkCBuffer(c,ele,sdslen(ele));
if (withscores)
addReplyDouble(c,ln->score);
// 直接正向或反向疊代即可
ln = reverse ? ln->backward : ln->level[0].forward;
}
} else {
serverPanic("Unknown sorted set encoding");
}
}
// 根據排名查找元素
/* Finds an element by its rank. The rank argument needs to be 1-based. */
zskiplistNode* zslGetElementByRank(zskiplist *zsl, unsigned long rank) {
zskiplistNode *x;
unsigned long traversed = 0;
int i;
x = zsl->header;
// 好像沒有相像中的簡單哦
// 請仔細品
for (i = zsl->level-1; i >= 0; i--) {
while (x->level[i].forward && (traversed + x->level[i].span) <= rank)
{
// span 的作用？？
traversed += x->level[i].span;
x = x->level[i].forward;
}
if (traversed == rank) {
return x;
}
}
return NULL;
} 根據範圍查找元素，整體是比較簡單，疊代輸出而已。隻是 skiplist 的span維護，得好好想想。
四、zrembyscore 根據分數删除元素
zrembyscore, 首先這是個删除指令，其實它是根據分數查詢，我們可以同時解析這兩種情況。
// t_zset.c,
void zremrangebyscoreCommand(client *c) {
// 幾個範圍删除，都複用 zremrangeGenericCommand
// ZRANGE_RANK/ZRANGE_SCORE/ZRANGE_LEX
zremrangeGenericCommand(c,ZRANGE_SCORE);
}
void zremrangeGenericCommand(client *c, int rangetype) {
robj *key = c->argv[1];
robj *zobj;
int keyremoved = 0;
unsigned long deleted = 0;
// score 存儲使用另外的資料結構
zrangespec range;
zlexrangespec lexrange;
long start, end, llen;
/* Step 1: Parse the range. */
// 解析參數，除了 rank 方式的查詢，其他兩個都使用 另外的專門資料結構存儲參數
if (rangetype == ZRANGE_RANK) {
if ((getLongFromObjectOrReply(c,c->argv[2],&start,NULL) != C_OK) ||
(getLongFromObjectOrReply(c,c->argv[3],&end,NULL) != C_OK))
return;
} else if (rangetype == ZRANGE_SCORE) {
if (zslParseRange(c->argv[2],c->argv[3],&range) != C_OK) {
addReplyError(c,"min or max is not a float");
return;
}
} else if (rangetype == ZRANGE_LEX) {
if (zslParseLexRange(c->argv[2],c->argv[3],&lexrange) != C_OK) {
addReplyError(c,"min or max not valid string range item");
return;
}
}
/* Step 2: Lookup & range sanity checks if needed. */
if ((zobj = lookupKeyWriteOrReply(c,key,shared.czero)) == NULL ||
checkType(c,zobj,OBJ_ZSET)) goto cleanup;
if (rangetype == ZRANGE_RANK) {
/* Sanitize indexes. */
llen = zsetLength(zobj);
if (start < 0) start = llen+start;
if (end < 0) end = llen+end;
if (start < 0) start = 0;
/* Invariant: start >= 0, so this test will be true when end < 0.
* The range is empty when start > end or start >= length. */
if (start > end || start >= llen) {
addReply(c,shared.czero);
goto cleanup;
}
if (end >= llen) end = llen-1;
}
/* Step 3: Perform the range deletion operation. */
if (zobj->encoding == OBJ_ENCODING_ZIPLIST) {
// 針對不同的删除類型，使用不同的删除方法
// 是以，這段代碼的複用展現在哪裡呢？？？
switch(rangetype) {
case ZRANGE_RANK:
zobj->ptr = zzlDeleteRangeByRank(zobj->ptr,start+1,end+1,&deleted);
break;
case ZRANGE_SCORE:
// 3.1. 我們隻看 score 的删除 --ziplist
zobj->ptr = zzlDeleteRangeByScore(zobj->ptr,&range,&deleted);
break;
case ZRANGE_LEX:
zobj->ptr = zzlDeleteRangeByLex(zobj->ptr,&lexrange,&deleted);
break;
}
if (zzlLength(zobj->ptr) == 0) {
dbDelete(c->db,key);
keyremoved = 1;
}
} else if (zobj->encoding == OBJ_ENCODING_SKIPLIST) {
zset *zs = zobj->ptr;
switch(rangetype) {
case ZRANGE_RANK:
deleted = zslDeleteRangeByRank(zs->zsl,start+1,end+1,zs->dict);
break;
case ZRANGE_SCORE:
// 3.2. skiplist 的删除rangeByScore 方法
deleted = zslDeleteRangeByScore(zs->zsl,&range,zs->dict);
break;
case ZRANGE_LEX:
deleted = zslDeleteRangeByLex(zs->zsl,&lexrange,zs->dict);
break;
}
if (htNeedsResize(zs->dict)) dictResize(zs->dict);
if (dictSize(zs->dict) == 0) {
dbDelete(c->db,key);
keyremoved = 1;
}
} else {
serverPanic("Unknown sorted set encoding");
}
/* Step 4: Notifications and reply. */
if (deleted) {
char *event[3] = {"zremrangebyrank","zremrangebyscore","zremrangebylex"};
signalModifiedKey(c->db,key);
notifyKeyspaceEvent(NOTIFY_ZSET,event[rangetype],key,c->db->id);
if (keyremoved)
notifyKeyspaceEvent(NOTIFY_GENERIC,"del",key,c->db->id);
}
server.dirty += deleted;
addReplyLongLong(c,deleted);
cleanup:
if (rangetype == ZRANGE_LEX) zslFreeLexRange(&lexrange);
}
// server.h, 範圍查詢參數存儲
/* Struct to hold a inclusive/exclusive range spec by score comparison. */
typedef struct {
double min, max;
int minex, maxex; /* are min or max exclusive? */
} zrangespec;
// 3.1. ziplist 的删除range方法
// t_zset.c
unsigned char *zzlDeleteRangeByScore(unsigned char *zl, zrangespec *range, unsigned long *deleted) {
unsigned char *eptr, *sptr;
double score;
unsigned long num = 0;
if (deleted != NULL) *deleted = 0;
// 找到首個在範圍内的指針，進行疊代
eptr = zzlFirstInRange(zl,range);
if (eptr == NULL) return zl;
/* When the tail of the ziplist is deleted, eptr will point to the sentinel
* byte and ziplistNext will return NULL. */
while ((sptr = ziplistNext(zl,eptr)) != NULL) {
score = zzlGetScore(sptr);
// 肯定是比 min 大的，是以隻需确認比 max 小即可
if (zslValueLteMax(score,range)) {
/* Delete both the element and the score. */
zl = ziplistDelete(zl,&eptr);
zl = ziplistDelete(zl,&eptr);
num++;
} else {
/* No longer in range. */
break;
}
}
if (deleted != NULL) *deleted = num;
return zl;
}
/* Find pointer to the first element contained in the specified range.
* Returns NULL when no element is contained in the range. */
unsigned char *zzlFirstInRange(unsigned char *zl, zrangespec *range) {
unsigned char *eptr = ziplistIndex(zl,0), *sptr;
double score;
/* If everything is out of range, return early. */
// 比較第1個元素和最後 一個元素，即可确認是否在範圍内
if (!zzlIsInRange(zl,range)) return NULL;
while (eptr != NULL) {
sptr = ziplistNext(zl,eptr);
serverAssert(sptr != NULL);
score = zzlGetScore(sptr);
// score >= min
if (zslValueGteMin(score,range)) {
/* Check if score <= max. */
if (zslValueLteMax(score,range))
return eptr;
return NULL;
}
/* Move to next element. */
eptr = ziplistNext(zl,sptr);
}
return NULL;
}
// 檢查zl是否在range範圍内
// 檢查第1個分數和最後一個數即可
/* Returns if there is a part of the zset is in range. Should only be used
* internally by zzlFirstInRange and zzlLastInRange. */
int zzlIsInRange(unsigned char *zl, zrangespec *range) {
unsigned char *p;
double score;
/* Test for ranges that will always be empty. */
if (range->min > range->max ||
(range->min == range->max && (range->minex || range->maxex)))
return 0;
p = ziplistIndex(zl,-1); /* Last score. */
if (p == NULL) return 0; /* Empty sorted set */
score = zzlGetScore(p);
// scoreMax >= min
if (!zslValueGteMin(score,range))
return 0;
p = ziplistIndex(zl,1); /* First score. */
serverAssert(p != NULL);
score = zzlGetScore(p);
// scoreMin <= max
if (!zslValueLteMax(score,range))
return 0;
return 1;
}
// 3.2. 删除 skiplist 中的range元素
/* Delete all the elements with score between min and max from the skiplist.
* Min and max are inclusive, so a score >= min || score <= max is deleted.
* Note that this function takes the reference to the hash table view of the
* sorted set, in order to remove the elements from the hash table too. */
unsigned long zslDeleteRangeByScore(zskiplist *zsl, zrangespec *range, dict *dict) {
zskiplistNode *update[ZSKIPLIST_MAXLEVEL], *x;
unsigned long removed = 0;
int i;
x = zsl->header;
// 找出每層小于 range->min 的元素
for (i = zsl->level-1; i >= 0; i--) {
while (x->level[i].forward && (range->minex ?
x->level[i].forward->score <= range->min :
x->level[i].forward->score < range->min))
x = x->level[i].forward;
update[i] = x;
}
/* Current node is the last with score < or <= min. */
x = x->level[0].forward;
// 從第0層開始，依次删除引用，删除元素
// 同有找到符合條件的元素時，一次循環也不會成立
/* Delete nodes while in range. */
while (x &&
(range->maxex ? x->score < range->max : x->score <= range->max))
{
// 保留下一次疊代
zskiplistNode *next = x->level[0].forward;
zslDeleteNode(zsl,x,update);
// 同步删除 dict 資料
dictDelete(dict,x->ele);
zslFreeNode(x); /* Here is where x->ele is actually released. */
removed++;
x = next;
}
return removed;
} 删除的邏輯比較清晰，ziplist和skiplist分開處理。大體思路相同是：找到第一個符合條件的元素，然後疊代，直到第一個不符合條件的元素為止。
set雖然從定義上與zset有很多相通之處，然而在實作上卻是截然不同的。由于很多東西和之前介紹的知識有重合的地方，也沒啥好特别說的。zset 的解析差不多就到這裡了。
你覺得zset還有什麼有意思的實作呢？歡迎讨論。
不要害怕今日的苦，你要相信明天，更苦！
