jQuery插件 treeTable V1.4.2 与 bootstrapTable整合

想做一个菜单管理，将菜单比较直观的展示出来，于是想到树，于是就在网上找看有没有树表，找了很多。比较起来感觉詹潮江的 jQuery插件 treeTable V1.4.2比较好用。最近老是用bootstrapTable用的很熟了，然后，将它与bootstrapTable整合，管理起来很方便。

jQuery插件 treeTable V1.4.2

链接：https://pan.baidu.com/s/1CTXEptc0mOxaUndGSr4nrg#list/path=%2F

提取码：takx

一、熟悉jQuery插件 treeTable V1.4.2 参数、方法

配置参数

theme: string {主题，有两个选项：default、vsStyle. 默认:default}

expandLevel: int {树表的展开层次. 默认:1}

column: int {可控制列的序号. 默认:0，即第一列}

onSelect: function($treeTable, id){} 拥有controller自定义属性的元素的点击事件，return false则中止展开. 默认值:

beforeExpand: function($treeTable, id){} 展开子节点前触发的事件, 默认值：

onSelect: function($treeTable, id){
    //$treeTable 当前树表的jquery对象.
    //id 当前行的id
    //返回false，则直接退出，不会激发后面的beforeExpand和子节点的展开
    return true;
}

beforeExpand: function($treeTable, id){
 //$treeTable 当前树表的jquery对象.
 //id 当前行的id
}

属性说明

id: string 行的id

pId: string 父行的id

controller: bool 指定某一个元素是否可以控制行的展开

hasChild: bool 指定某一个tr元素是否有孩子（动态加载需用到）

isFirstOne: bool 指定某一个tr元素是否是第一个孩子（自动生成属性，只读）

isLastOne: bool 指定某一个tr元素是否是最后一个孩子（自动生成属性，只读）

prevId: string 前一个兄弟节点的id（自动生成属性，只读）

depth: string 当前行的深度（自动生成属性，只读）

二、jQuery插件 treeTable V1.4.2 与 bootstrapTable整合Demo

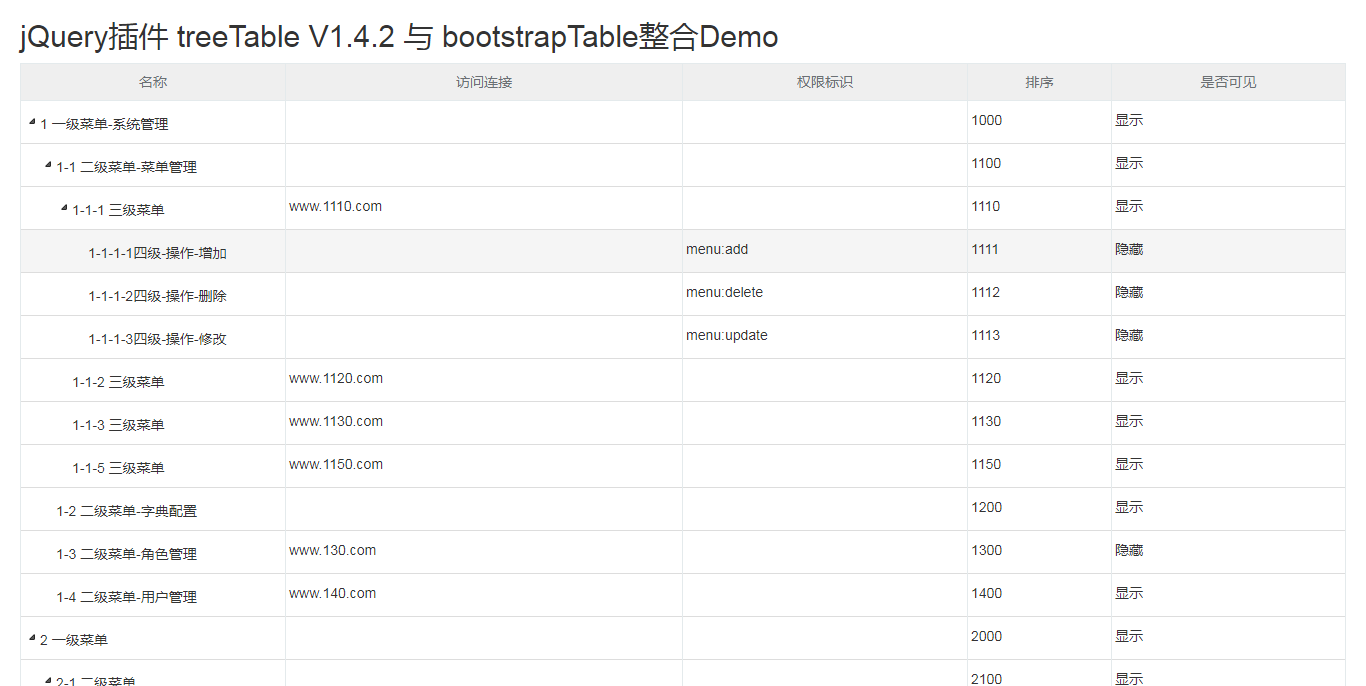

1、效果展示

jQuery插件 treeTable V1.4.2 与 bootstrapTable整合

2.补充一个知识，无意间看到 bootstrap-table.js 源码的这段代码

// save tr's id, class and data-* attributes

//保存tr的id、class和data-*属性

jQuery插件 treeTable V1.4.2 与 bootstrapTable整合

于是顺藤摸瓜就找到了这段代码，正好满足我们的需求，bootstrapTable帮我们给标签 tr设置了id（前提是一条数据中必须有“_id”）下一步我们只需要再给tr加上pId就OK了。。

jQuery插件 treeTable V1.4.2 与 bootstrapTable整合

3、Demo源码

index.html

<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>jQuery插件 treeTable V1.4.2 与 bootstrapTable整合Demo</title>
<link rel="stylesheet" href="css/plugins/bootstrap/bootstrap.min.css" target="_blank" rel="external nofollow"  />
<link rel="stylesheet" href="css/plugins/bootstrap-table/bootstrap-table.min.css" target="_blank" rel="external nofollow"  />
<link rel="stylesheet" href="js/plugins/treetable/themes/vsStyle/treeTable.css" target="_blank" rel="external nofollow"  />
<!--<link rel="stylesheet" href="js/plugins/treetable/themes/default/treeTable.css" target="_blank" rel="external nofollow"  />-->
</head>
<body style="margin: 20px;">
	<h2>jQuery插件 treeTable V1.4.2 与 bootstrapTable整合Demo</h2>
		<table id="treeTable"  data-toolbar="#toolbar"data-toggle="table"
			data-ajax="ajaxRequest" data-search="false"data-side-pagination="server"
			data-single-select="true" data-click-to-select="true">
			<thead style="background: #f3f3f4 !important;">
				<tr>
					<th data-field="name" data-width="20%"data-align="left">名称</th>
					<th data-field="url"  data-width="30%" data-align="left">访问连接</th>
					<th data-field="permission" data-align="left">权限标识</th>
					<th data-field="sort" data-align="left">排序</th>
					<th data-field="display" data-align="left">是否可见</th>
					<th data-checkbox="true"></th>
				</tr>
			</thead>
		</table>
	</div>

	<script type="text/javascript" src="js/plugins/jquery/jquery-2.2.3.min.js"></script>
	<script type="text/javascript" src="js/plugins/bootstrap/bootstrap.min.js"></script>
	<script type="text/javascript" src="js/plugins/bootstrap-table/bootstrap-table.min.js"></script>
	<script type="text/javascript" src="js/plugins/bootstrap-table/locale/bootstrap-table-zh-CN.min.js"></script>
	<script type="text/javascript" src="js/plugins/treetable/jquery.treeTable.js"></script>
	<script type="text/javascript" src="js/menu.js"></script>

</body>
</html>

menu.js

var $treeTable = $("#treeTable");
function ajaxRequest(params) {
	var p = {};
	//1、获取数据
	$.ajax({
		type: 'GET',
		url: "menu.json",
		dataType: 'json',
		success: function(rs) {
			if(rs.code == 0) {
				var menuArr = [];
				var array = rs.array;
				for(var i = 0; i < array.length; i++) {
					var item = array[i];
					if(item.display == "1"){
						item.display = '显示';
					}else{
						item.display = '隐藏';
					}
					if(item.parentId == '0'){
						menuArr.push(item);
					}
					//2、用递归将菜单数据排序
					sortMenu(array, item._id, menuArr);
				}
				//3、bootstrap-table将数据显示
				params.success({
					"total": menuArr.length,
					"rows": menuArr
				});
				//4、treeTable渲染
				initTreeTable(menuArr);
			}
		},
		error: function() {
			alert(arguments[1]);
		}
	})
}
/**
 * 用递归将菜单数据排序
 * @param {Object} array
 * @param {Object} id
 * @param {Object} menuArr
 */
function sortMenu(array, id, menuArr){
	for(var j = 0; j < array.length; j++) {
		var item = array[j];
		if(item.parentId == id){
			if(menuArr.indexOf(item) == -1){
				menuArr.push(item);
			}
			sortMenu(array, item._id, menuArr);
			console.log(menuArr);
		}
	}
}
/**
 * treeTable渲染
 * @param {Object} msg
 */
function initTreeTable(menuArr){
	for(var i = 0; i < menuArr.length; i++) {
		var id = menuArr[i]._id;
		var parentId =  menuArr[i].parentId;
		$("#"+id).attr("pId",parentId);
	}
	//expandLevel展开层次
	var option = {
		//不知道什么原因设置vsStyle，就没效果了，可能与bootstrapTable冲突了
		//不过，这里不设置，页面引用哪个treeTable.css，他就显示什么样式
		//theme:'vsStyle',
		column: 0,
		expandLevel:3
	};
	$treeTable.treeTable(option);
}

menu.json

{
    "message": "success",
    "total": 15,
    "code": 0,
    "array": [
        {
            "id": "5aed3134bfff469cf03d3669",
            "_id": "5aed3134bfff469cf03d3669",
            "parentId": "0",
            "icon": "system",
            "sort": "1000",
            "name": "1 一级菜单-系统管理",
            "remarks": "备注一级菜单",
            "permission": "",
            "display": "1",
            "url": ""
        },
        {
            "id": "5aed3134bfff469cf03d366b",
            "_id": "5aed3134bfff469cf03d366b",
            "parentId": "5aed3134bfff469cf03d3669",
            "icon": "menu",
            "sort": "1100",
            "name": "1-1 二级菜单-菜单管理",
            "remarks": "",
            "permission": "",
            "display": "1",
            "url": ""
        },
        {
            "id": "5aed3134bfff469cf03d366c",
            "_id": "5aed3134bfff469cf03d366c",
            "parentId": "5aed3134bfff469cf03d366b",
            "icon": "",
            "sort": "1110",
            "name": "1-1-1 三级菜单",
            "remarks": "",
            "permission": "",
            "display": "1",
            "url": "www.1110.com"
        },
        {
            "id": "5aed3134bfff469cf03d3666",
            "_id": "5aed3134bfff469cf03d3666",
            "parentId": "5aed3134bfff469cf03d366c",
            "icon": "",
            "sort": "1111",
            "name": "1-1-1-1四级-操作-增加",
            "remarks": "",
            "permission": "menu:add",
            "display": "0",
            "url": ""
        },
        {
            "id": "5aed3134bfff469cf03d3667",
            "_id": "5aed3134bfff469cf03d3667",
            "parentId": "5aed3134bfff469cf03d366c",
            "icon": "",
            "sort": "1112",
            "name": "1-1-1-2四级-操作-删除",
            "remarks": "",
            "permission": "menu:delete",
            "display": "0",
            "url": ""
        },
        {
            "id": "5aed3134bfff469cf03d3668",
            "_id": "5aed3134bfff469cf03d3668",
            "parentId": "5aed3134bfff469cf03d366c",
            "icon": "",
            "sort": "1113",
            "name": "1-1-1-3四级-操作-修改",
            "remarks": "",
            "permission": "menu:update",
            "display": "0",
            "url": ""
        },
        {
            "id": "5aed3134bfff469cf03d366d",
            "_id": "5aed3134bfff469cf03d366d",
            "parentId": "5aed3134bfff469cf03d366b",
            "icon": "",
            "sort": "1120",
            "name": "1-1-2 三级菜单",
            "remarks": "",
            "permission": "",
            "display": "1",
            "url": "www.1120.com"
        },
        {
            "id": "5aed3134bfff469cf03d366e",
            "_id": "5aed3134bfff469cf03d366e",
            "parentId": "5aed3134bfff469cf03d366b",
            "icon": "",
            "sort": "1130",
            "name": "1-1-3 三级菜单",
            "remarks": "",
            "permission": "",
            "display": "1",
            "url": "www.1130.com"
        },
                {
            "id": "5aed3134bfff469cf03d366g",
            "_id": "5aed3134bfff469cf03d366g",
            "parentId": "5aed3134bfff469cf03d366b",
            "icon": "",
            "sort": "1150",
            "name": "1-1-5 三级菜单",
            "remarks": "",
            "permission": "",
            "display": "1",
            "url": "www.1150.com"
        },
        {
            "id": "6aed3134bfff469cf03d366c",
            "_id": "6aed3134bfff469cf03d366c",
            "parentId": "5aed3134bfff469cf03d3669",
            "icon": "menu",
            "sort": "1200",
            "name": "1-2 二级菜单-字典配置",
            "remarks": "",
            "permission": "",
            "display": "1",
            "url": ""
        },
        {
            "id": "7aed3134bfff469cf03d366a",
            "_id": "7aed3134bfff469cf03d366a",
            "parentId": "5aed3134bfff469cf03d3669",
            "icon": "menu",
            "sort": "1300",
            "name": "1-3 二级菜单-角色管理",
            "remarks": "",
            "permission": "",
            "display": "0",
            "url": "www.130.com"
        },
        {
            "id": "7aed3134bfff469cf03d366d",
            "_id": "7aed3134bfff469cf03d366d",
            "parentId": "5aed3134bfff469cf03d3669",
            "icon": "menu",
            "sort": "1400",
            "name": "1-4 二级菜单-用户管理",
            "remarks": "",
            "permission": "",
            "display": "1",
            "url": "www.140.com"
        },
        {
            "id": "8aed3134bfff469cf03d3687",
            "_id": "8aed3134bfff469cf03d3687",
            "parentId": "0",
            "icon": "system",
            "sort": "2000",
            "name": "2 一级菜单",
            "remarks": "",
            "permission": "",
            "display": "1",
            "url": ""
        },
        {
            "id": "8aed3134bfff469cf03d366c",
            "_id": "8aed3134bfff469cf03d366c",
            "parentId": "8aed3134bfff469cf03d3687",
            "icon": "menu",
            "sort": "2100",
            "name": "2-1 二级菜单",
            "remarks": "",
            "permission": "",
            "display": "1",
            "url": ""
        },
        {
            "id": "8aed3134bfff469cf03d3692",
            "_id": "8aed3134bfff469cf03d3692",
            "parentId": "8aed3134bfff469cf03d366c",
            "icon": "",
            "sort": "2200",
            "name": "2-1-1 三级菜单",
            "remarks": "",
            "permission": "",
            "display": "1",
            "url": "www.2200.com"
        }
    ]
}

参考：

https://zhanchaojiang.iteye.com/blog/1036454

https://blog.csdn.net/zcs_123li/article/details/51364555
