k8s拉取私库镜像

创建阿里云私有Registry

参考阿里云官方文档，仓库名称：express-app

pull地址：registry.cn-hangzhou.aliyuncs.com/neibo/express-app

将镜像推送到Registry

docker login --username=内博科技 registry.cn-hangzhou.aliyuncs.com
docker tag [ImageId] registry.cn-hangzhou.aliyuncs.com/neibo/express-app:[镜像版本号]
docker push registry.cn-hangzhou.aliyuncs.com/neibo/express-app:[镜像版本号]

备注：即修改镜像名称和tag同镜像仓库一致

从Registry中拉取镜像

docker login --username=内博科技 registry.cn-hangzhou.aliyuncs.com
docker pull registry.cn-hangzhou.aliyuncs.com/neibo/express-app:v1

编写express-app.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: express-app
spec:
  selector:
    matchLabels:
      app: express-app
  replicas: 1
  template:
    metadata:
      labels:
        app: express-app
    spec:
      containers:
      - name: express-app
        image: registry.cn-hangzhou.aliyuncs.com/neibo/express-app:v1
        ports:
        - containerPort: 3000
      imagePullSecrets:
        - name: my-secret

在pull镜像时，需要用docker私有仓库登录账号和密码，设置命令如下：

kubectl create secret docker-registry regsecret --docker-server=<your-registry-server> --docker-username=<your-name> --docker-password=<your-pword> --docker-email=<your-email>

编写express-service.yaml

apiVersion: v1
kind: Service
metadata:
  name: express-service
  labels:
    app: express-app
spec:
   type: NodePort
   ports:
   - targetPort: 3000
     nodePort: 32000
     port: 3100
     protocol: TCP
   selector:
    app: express-app

创建delopy service

kubectl create -f express-app.yaml
kubectl create -f express-service.yaml


访问：

http://lockplat.com:3000

地址，即可查看效果。

调度pod运行于master节点上方法一

调度pod运行于master节点上方法二

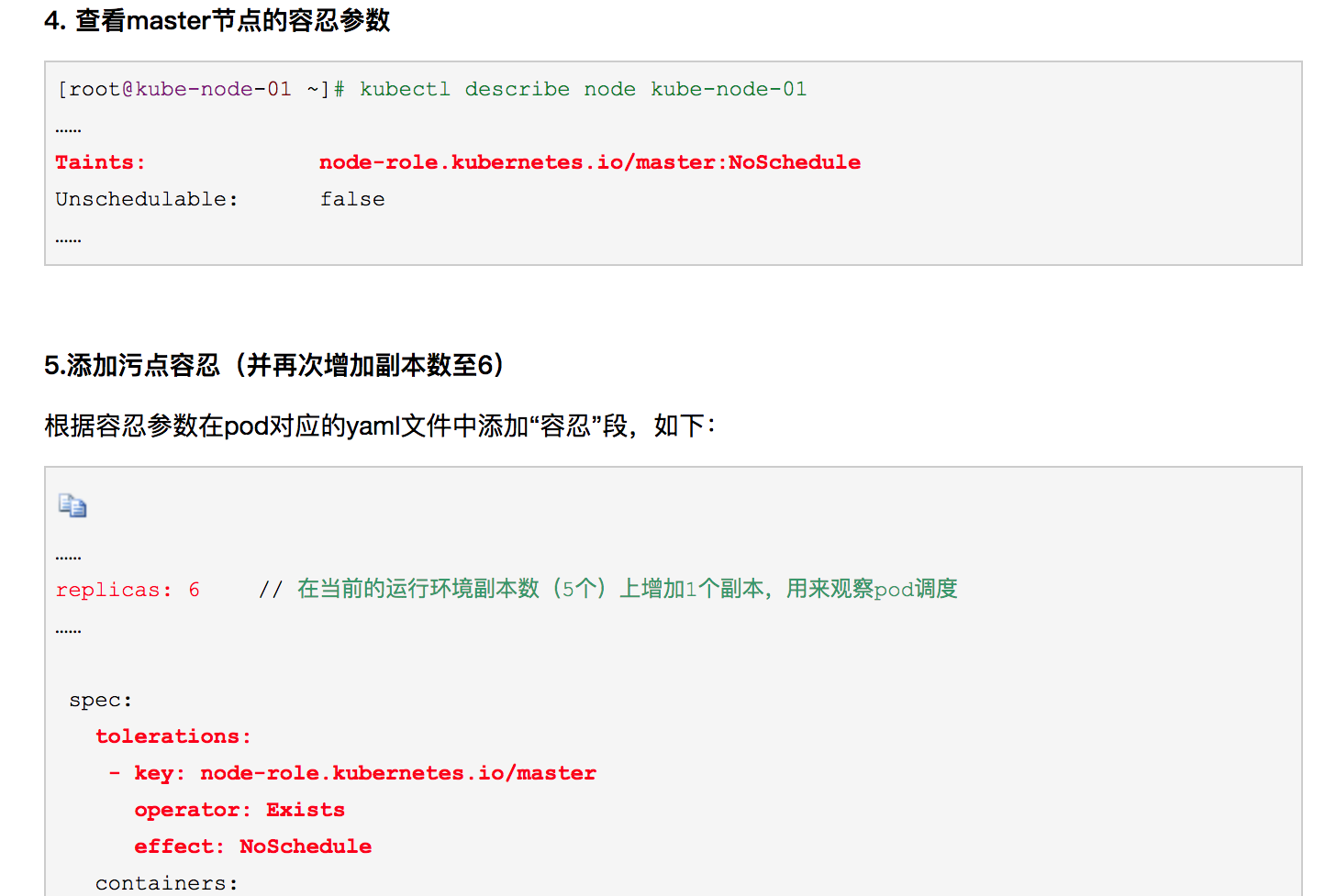

出于安全考虑，默认配置下Kubernetes不会将Pod调度到Master节点。如果希望将k8s-master也当作Node使用，可以执行如下命令：

kubectl taint node k8s-master node-role.kubernetes.io/master-

其中k8s-master是主机节点hostname如果要恢复Master Only状态，执行如下命令:

kubectl taint nodes <node-name> node-role.kubernetes.io/master=:NoSchedule

kubectl taint nodes <node-name> node-role.kubernetes.io/master:NoSchedule-
