Today to share with you a, the sixth Dongfeng Huashen luxury new DV5 rear double bridge liquid supply car, Yuchai 270 horsepower strong power, reinforced tank, volume of 19-22 cubic meters, the car wheelbase short turning radius is small, especially suitable for mountain or poor road conditions of the environment. The most affordable price-performance ratio in the same model!
22-square liquid supply truck, the chassis adopts the rear double axle, and the cab is optionally installed with the chassis. The vehicle is a non-dangerous goods vehicle and is mainly used to transport liquids for well site operations. The special devices are storage tanks, centrifugal pumps and other devices. The vehicle length/front overhang/wheelbase/rear overhang correspond to (mm): 9700/1250(1450,1410)/4350+1350/2750(2550,2590),10080/1250(1450,1410)/4750+1350/2730(2530,2570),10080/1250(1450,1410)4350+1350/3130(2930,2970)." Effective volume of tank: 19 cubic meters. Transport medium: well washing fluid, density: 680 kg/m3. Tank size (length× width× height) (mm) 7200×2380×1600; 6800×2450×1450.Side and rear protective materials are Q235B, side guards are bolted to frames, rear guards are welded, rear guard section size (width× height) 50×120 (mm), rear guard ground height: 490mm. AbS model and manufacturer: 3631010-C2000 / East Corknower Commercial Vehicle Braking System
About the characteristics of the 22-square liquid supply vehicle: there are the following four points, the first is outstanding professionalism: the self-priming height reaches 4m, the displacement can reach 200m3/h, the head is high, and the speed is fast. 2. Tank installation centrifugal pump self-priming water rapidly: only 15-25S time to self-priming water, 2-3 times faster than similar products. 3. The anti-corrosion performance of the tank is outstanding, and the tank material adopts the international leading glass sheet anti-corrosion technology, which can better meet the needs of cementing operations. 4. Applicable to different regions, industrial and mining, in different seasons of different environments, combined with the above four points the design structure of the car is reasonable, the tank production technology is advanced, easy to use and operate, equipped with complete equipment, can greatly meet the needs of cementing operations and general cargo transportation in different seasons, different well conditions, the most important thing is that you can also choose installment payment according to your needs.

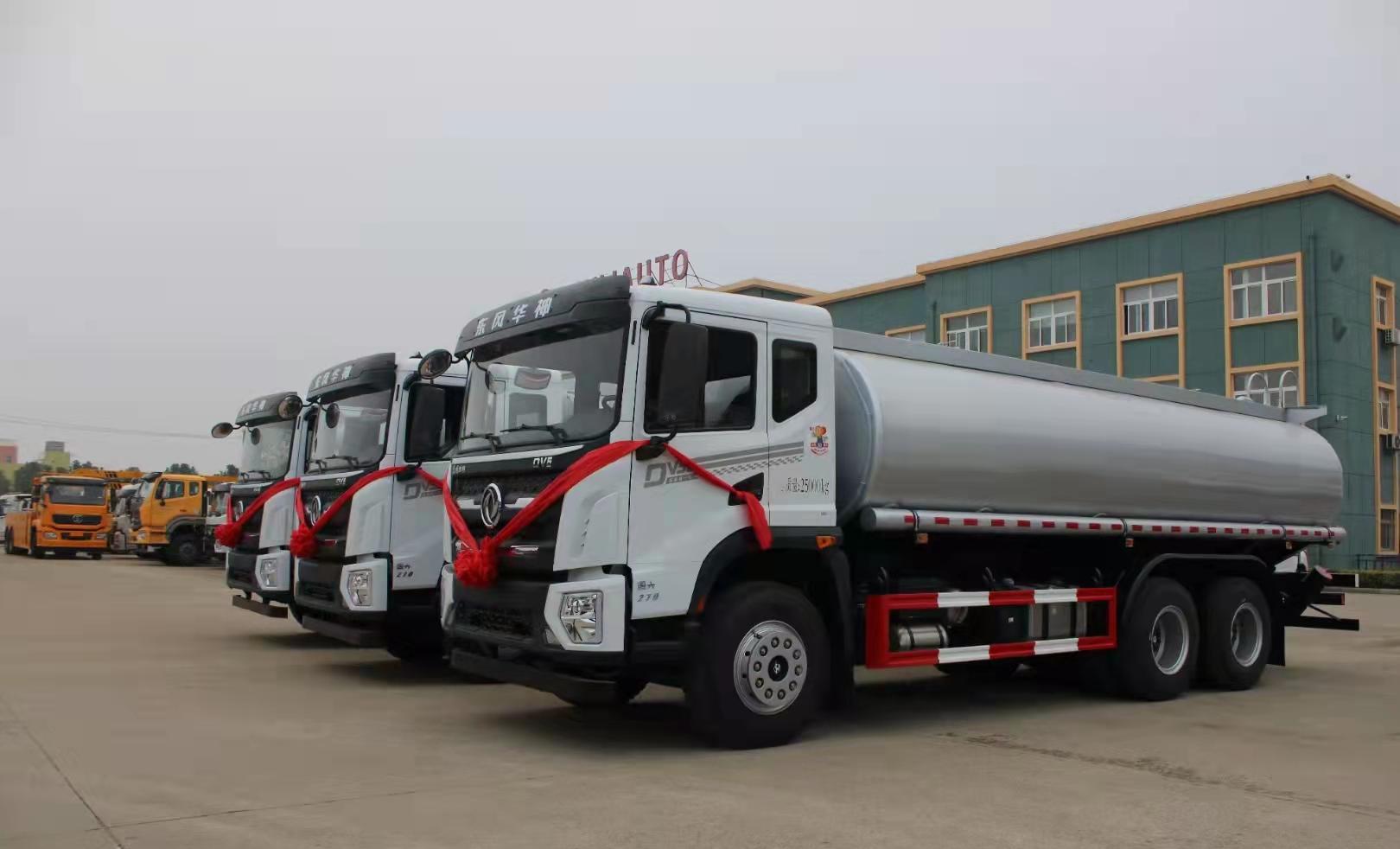

Hanging up the big red flower, it is about to marry to the Shanxi mine to carry out its mission.
The tail of the tank is equipped with a climbing ladder to facilitate the safety of operation on the top of the tank.
The tail of the tank can also be customized with the artesian port. The caliber of the artesian port can be installed according to your needs.
The tank can also be made of stainless steel according to the medium of the vehicle you are transporting, 304 stainless steel is suitable for pulling food grade liquids, and aluminum alloy plates can also be used, and the weight of the aluminum alloy tank can pull more goods.
