MIFON most people may not be familiar with, it is the brand of Fiberhome Communications, and Fiberhome Communications as the only set of optical communications in the field of three strategic technologies in one of the scientific research industry entities, in this year's "Fortune" China Top 500 list ranked 370, strong technology, the current MIFON as a sub-brand just born this year, products cover smart TV boxes and routers two pieces, the birth of new brands naturally have to have some handy things, otherwise how can they survive in the market where the router competition is so fierce?
MIFON X1 is a well-known domestic assembly machine brand climbing cooperation of the joint router, positioning high-end game e-sports, in the appearance of design, performance, game optimization has a lot of characteristics, the current official in the sale of star white, space gray, Gundam joint version of the three, this time to share with you the relevant experience of star white ~
< h1 class="pgc-h-arrow-right" > appearance</h1>

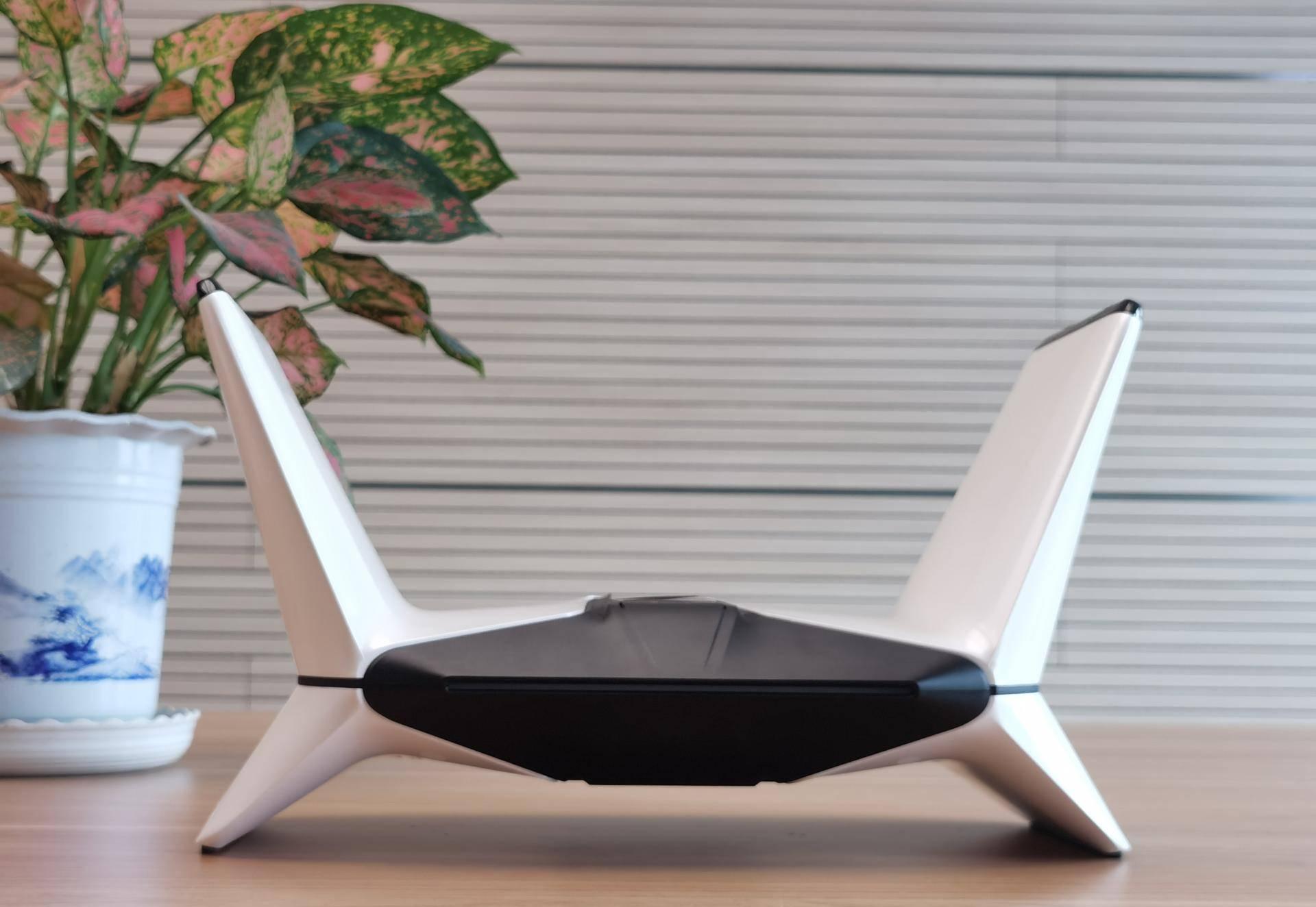

Star white color phase avant-garde, black and white with the front open like a space battleship, four wings hidden in the 8 high-gain antennas, built-in 8 independent signal transmitters, can greatly improve the router signal power, long-distance transmission does not have to fear the signal is not bad. The symmetrical design on both sides is also like an artistic ornament in the home.
The angle of the tilted antenna does not need to be adjusted by the user, and the advantage of the motherboard part of the suspension is that the heat dissipation performance is strong enough, and there will be no obvious heating when it is touched.
In the front end of the MIFON X1 can see a game acceleration of the physical button, the center of the black area is the display, you can see the number of online devices, game acceleration status and the current download rate, users do not need to open the mobile APP to view the status of the route, very convenient.
On both sides of the support angle, wing and bottom, you can see a large area of heat dissipation holes, the overall heat dissipation do not have to worry.
All the interfaces of the whole machine are concentrated on the back of the router, 1 WAN port, 4 LAN ports, two USB3.0 interfaces, a Reset port and a light button, and different areas have also made color distinctions, which is quite careful.
< h1 class="pgc-h-arrow-right" > interface</h1>
Look carefully at the network cable interface, you can see that there is a yellow Game, this position is a specially designed independent LAN port for the game, when using the network will give priority to ensuring the smoothness of the game port, to ensure the smoothness of the game low latency.
The WAN port can be seen labeled with 2.5G, which can achieve 2.5 times the transmission speed of the traditional gigabit port, and the theoretical maximum can reach 310+MB/s, and the speed is fast enough after 3S transmission of a 1G movie.
In terms of configuration, MIFON X1 uses broadcom BCM4908 master, 64-bit quad-core processor is one of the top processors in the current routing, 1.8GHz frequency, memory capacity of 512M, support 2.4G 2*2MIMO, 5G 4*4MIMO, dual-frequency concurrency can reach the highest rate of 6600Mbps, of which the 5G band rate is 4.8Gbps, as a professional gaming esports route, the performance is indeed strong.
With the continuous update of smart devices, the current new mobile phones, household appliances, smart speakers, etc. almost support WiFi6, WiFi6 vs WiFi5 The main advantage is OFDMA and UL/DL MU-MIMO technology.
OfdMA is an orthogonal frequency division multiple access, which is an upgraded version of OFDM technology on WiFi5.
OFDMA technology is designation of one (or group) of all subcarriers per user using OFDM. OFDMA divides the entire frequency band into smaller units, multiple users can use the entire frontal band at the same time, and its allocation mechanism is very flexible, according to the size of the user's business volume dynamically allocate the number of subcarriers, different subcarriers used on the modulation method and transmission power can also be different. In the OFDMA system, the user only uses a part of all the subcarriers, if the timing deviation and frequency deviation of the user in the same frame are small enough, there will be no interference in the cell in the system, which is more advantageous than the code division system.
Simply understood, OFDMA in the transmission of data is, a channel is divided into multiple sub-channels, support multiple devices with a channel, data can be transmitted in parallel, users do not have to queue light strips, thereby improving the entire communication efficiency.
MU-MIMO (Multi-User Multiple-Input Multiple-Output, multi-user-multiple input multiple output) refers to the wireless communication system, a base station serves multiple mobile terminals at the same time, and the base station makes full use of the antenna's airspace resources to communicate with multiple users at the same time.
The previous generation of WiFi5 routing supports LD MU-MIMO technology, that is, the route can transmit data to multiple devices at the same time, but the received data can only be queued one by one, while the WiFi6 route supports UL/DL MU-MIMO, that is, it supports multiple devices to upload and receive data at the same time.
The MIFON X1 and the common WiFi6 routing on the market are also different, that is, it divides the 5G signal into two frequency bands, and an independent 5G-Game is used for the game, so as to avoid the high impact of stuttering delay on the game in the multi-device connection to the greatest extent, so that the game stability of the wireless device is guaranteed.
<h1 class="pgc-h-arrow-right" > APP control</h1>
In the APP can see a large number of graphical design, buttons, routing status display is more intuitive, the most commonly used function is naturally game acceleration, the main interface can view the online device, network speed, running time, CPU usage, and the top of the router display content is similar.
The previous OPPOFind series of skyline breathing lights are very beautiful, there is a similar design on MIFON X1, the slender light bar in the middle can display three kinds of lights, namely red - disconnected, white - normal operation, orange - game acceleration mode, and in the APP can also adjust the brightness of the light, mifon X1 in the working state is more commotion ~ ~
<h1 class="pgc-h-arrow-right" > actual speed measurement</h1>
Testing the download and upload speed of each frequency band, we can see that without wall occlusion, the 5G-Game band has the lowest latency control and the fastest download rate, while in the 5G band, the upload speed is the fastest.
After measuring the speed again after a wall, you can see that the best delay and download speed is still the 5G-Game band, the fastest upload speed is still the 5G band, the overall rate is much lower than the wall-free occlusion, but 50Mbps can already meet the 4K original disk without Caton drag and drop playback, the speed is exaggerated enough.
<h1 class="pgc-h-arrow-right" > summary</h1>
As a high-end e-sports route, MIFON X1 in the appearance, performance, APP control and other aspects are very good, if you are a gamer, the delay and game download will be particularly sensitive, then MIFON X1 unique 5G-Game band can allow you to get the best treatment in the home network, even if there are more devices with the network, you will not feel the stutter, the game experience naturally needless to say. The design of this star white is simple and atmospheric, if you like a more ostentatious appearance, you can also look at the Gundam co-branded model ~~
