preface
Spring wire has always been a type of wire with a very disparity in evaluation, people who like it like it very much, the length is adjusted at will, it is convenient to store, and there is no need to worry about the wire being tangled together; people who don't like it feel bulky and ugly, and they will drag the mobile phone equipment. However, it is still a good experience to use in environments such as in-vehicles.
There are many high-quality straight lines on the market, but there are not many high-quality spring lines, and this time TEGIC has brought four different interface wires for spring line enthusiasts, covering C2C, C2L, A2C and A2L to meet the needs of different groups of people.
Product introduction

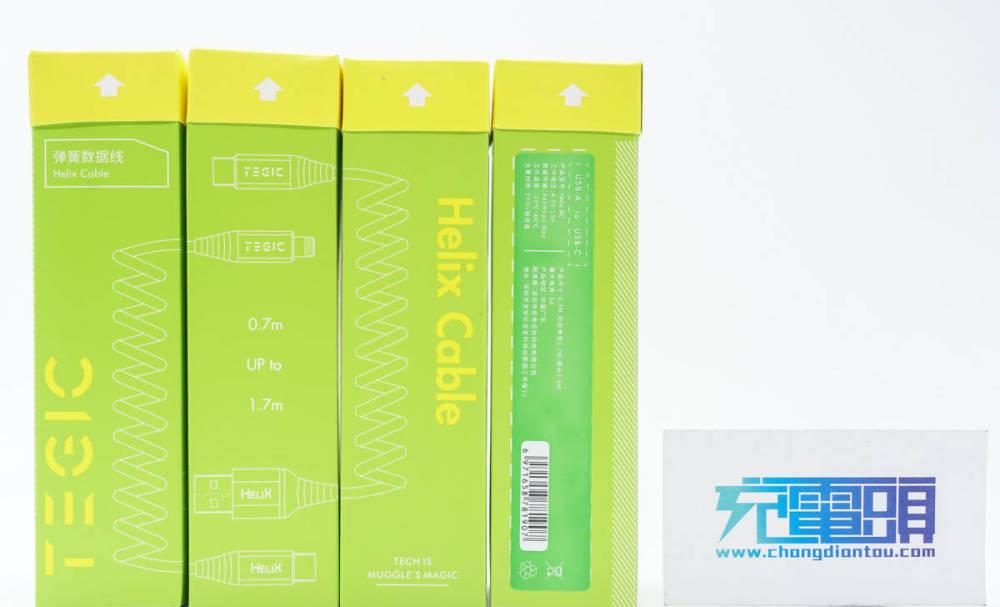

From the beginning of the product packaging, the TEGIC spring data cable is quite careful. The minimalist packaging design is also more environment-friendly.
It adopts an easy-to-detach design.
Lift to open the seal.
A total of four interface types, covering C2C, C2L, A2C and A2L, are designed with yellow spring wire and aluminum alloy frosted terminals.
The tensile force of the measured spring line is moderate, the recovery strength is crisp and clean, there will be no loose and collapsed phenomenon after elongation, and the baking line is handled well.
Charging test
After looking at the box appearance of the four data cables, we will test the charging of the four data cables separately.
C to C
C2C data cable specifications are USB2.0, 60W maximum power, relaxation length 0.7 meters, stretch length 1.7 meters, original length 1.8 meters.
The terminal details are handled well.
The logo of the HELIX product family.
The logo of TEGIC.
The relaxation length is measured to be about 72cm.
The stretch length is approximately 163cm.
Charge the Xiaomi Mi 11 using a data cable with a power of about 25.12W.
Charge the iPad Pro at approximately 33.19W.
Charge the MacBook Pro 16 2021 with approximately 60.49W.
Cto L
This C2L data cable is MFi certified and has the original charging experience. Transmission specification USB2.0, support maximum 60W power.
The same treatment at the terminals is the MFi-certified lightning terminal.
Details of the lightning terminal.
The measured relaxation length is about 75cm.
The wire diameter is approximately 3.89mm.
Test terminals using the POWER-Z MF001 and displayed as original C94.
Charge the iPhone 13 mini with approximately 17.13W.
Charge the iPhone 13 with about 24W.
Charge the iPhone 13 Pro with about 22.97W.
A to C
The A2C data cable is also a USB2.0 transmission specification, with a maximum carrying power of 60W.
Terminal and end-of-line processing remains consistent.
The seams are also naturally tight and workmanlike.
The relaxation length is approximately 75cm.
The stretch length is approximately 162cm.
The wire diameter is about 3.91mm.
Charge the Huawei Mate40 Pro with about 24.18W.
Charge the Huawei P40 Pro with a power of about 24.26W.
Charge the Xiaomi Mi 11 Pro with around 19.56W of power.
Charge the Huawei P20 Pro with a power of about 9.12W.
A to L
The A2L spring data cable also uses MFi certified terminals, the transmission specification USB2.0, and the maximum current carrying capacity is 3A.
The detail handling of the terminals is also good.
The lightning terminal uses MFi Apple certified terminals and has a charging experience consistent with the original data cable.
Test terminals using the POWER-Z MF001 and displayed as original C89.
The relaxation length is approximately 76cm.
The stretch length is approximately 165cm.
Charge the iPhone 13 mini with about 12.16W of power.
Charge the iPhone 13 with about 12.14W.
Charge the iPhone 13 Pro with about 11.89W.
Usage scenarios
If you have used a relatively long data cable, you will be troubled by entanglement and knotting, and it is inevitable to drag a bunch of data cables.
But the TEGIC spring wire avoids this very well, and the length in the relaxed state is just enough for desktop use.
If you need to move, pull to the right length at will, no need to store and organize when not in use, and it is quite convenient to line back to the original position as soon as you let go.
There is also a situation where spring wire is used more, that is, keyboard cable.
This small terminal design of the data cable is highly compatible with different keyboard trunks. The keyboard adjusts its position as you please, and you don't have to worry about the cable disturbing the cleanliness of the desktop.
Charging head net summary
After reading these four data lines, how do you think, these data lines are using green aluminum alloy terminals with fluorescent yellow wire, spring wire body processing is good, the tension is moderate, after tightening will not be loose and collapsed, the quality is good. Both C2L and A2L cables use MFi terminals to ensure a guaranteed charging experience.
The length of these data cables is about 70cm in the contraction state, and the medium length can be stretched to about 170cm in use, which is convenient for storage and easy to say goodbye to the knotting of the data cable. If you have requirements for the quality of the wire and are also a spring line enthusiast, then the TEGIC HELIX series data cable is one of the few options for you.
