Dongguan Weiyuan New Energy Technology Co., Ltd. is a factory focusing on charging accessories, the business scope covers chargers, wireless charging, charging treasure, the company scale of 17,000 square meters, the number of employees 350 people. At the same time, the company has set up a research and development center in the Yunli Intelligent Park of Martin Community in Guangming District, equipped with a number of senior R&D engineers, ID designers (Red Dot Award winners), structural designers, forming a high-tech enterprise integrating R&D, sales and production. The business model is mainly OEM's own product OEM sales and ODM customer customization services.
USB PD fast charging in digital products has reached full popularity, domestic and foreign 3C accessories e-commerce are seizing the fast charging market, Weiyuan new energy has launched IP68 protection level of pure wireless charging treasure, 30W 1A1C gallium nitride charger, recently, Weiyuan new energy in one breath updated 11 PD chargers, power coverage 20W-120W, interface has single port, double port, three ports, four mouths, for e-commerce selection to provide one-stop service.
Weiyuan new energy all adopt the family ID design style, rounded fireproof shell, rich output socket configuration, large power optional range, all support 100-240V 50/60Hz global voltage, replaceable folding pins, convenient for users in different regions to choose and buy.
The output panel is slightly concave, and there is a ring LED working indicator under the interface, which will illuminate the light to indicate that the user is in a powered state during operation.
The ring LED working indicator will be with 9V, 12V, 15V, 20V and other different fast charging voltage states, the brightness of the LED ring light will also increase, which is one of the characteristic designs of The Source New Energy Fast Charging Family ID. Below is an introduction to the parameters of the 11 chargers.
20W 1C
Weiyuan Xinneng 20W 1C charger model GTA97-20W-1C-ULF, single USB-C output configuration, support 5V3A / 9V2.22A / 12V1.67A output, rated output power 20W. Three-dimensional size 30.16mm X 43.32mm X 45.62mm, power density of 0.33W/cm, suitable for iPhone 8 ~ iPhone 13 series use.
20W 1A1K
Weiyuan Xinneng 20W 1A1C charger model GTA97-20W, has a total of two outputs, USB-C supports 5V3A / 9V2.22A / 12V1.67A output, USB-A supports 5V3A / 9V2A / 12V1.5A output, while dual port output 5V3A. Three-dimensional size 30.16mm X 43.32mm X 45.62mm, power density of 0.33W/cm, can be charged by both devices at the same time.
30W 1A1C
Weiyuan Xinneng 30W 1A1C charger model GTA97-30W-1AC-ULF has a total of two output ports, USB-C supports 5V3A / 9V3A / 12V2.5A / 15V2A / 20V1.5A output, USB-A supports 5V3A / 9V2A / 12V1.5A output, while the dual output power is adjusted to 5V3A. The three-dimensional size is 30.16mm X 43.32mm X 45.62mm, and the power density is 0.33W/cm, which improves the output performance compared to the 20W 1A1C model.
30W 1C
Weiyuan Xinneng 30W 1C charger model GTA97-30W-1C-ULF, single USB-C output configuration, support 5V3A / 9V3A / 12V2.5A / 15V2A / 20V1.5A output, with 15V, 20V high voltage commonly used in tablet notebooks, better for large digital products to provide fast charging support. The three-dimensional size of 30.81mm X 43.15mm X 45.7mm and the power density of 0.49W/cm can provide full-power fast charging for the iPhone 13 Pro Max.
45W 1C
Weiyuan Xinneng 45W 1C charger model GTA97-48W-1C-ULF, single USB-C output configuration, support 5V3A / 9V3A / 12V3A / 15V3A / 20V2.25A output, with 15V, 20V high voltage commonly used in tablet notebooks, better for large digital products to provide fast charging support. 3D size 31.53mm X 61.33mm X 54.35mm, power density 0.42W/cm.
48W 1A1K
Weiyuan Xinneng 48W 1A1C charger model GTA97-48W-1A1C-ULF, 1A1C dual output configuration, USB-C support 5V3A / 9V3A / 12V3A / 15V3A / 20V2.25A output, USB-A support 5V2A / 9V2A / 12V1.5A output, dual port simultaneous output when the power is adjusted to 30W + 18W, can be dual port simultaneous fast charging. 3D size 31.18mm X 54.33mm X 61.17mm, power density 0.43W/cm.
65W 1C
Weiyuan Xinneng 65W 1C charger model GTA97-65W-1C-ULF, single USB-C output configuration, USB-C support 5V3A / 9V3A / 12V3A / 15V3A / 20V3.25A output, maximum output power 65W. Three-dimensional size 31.29mm X 61.43mm X 54.31mm, power density 0.62W/cm.
65W1A1C
Weiyuan Xinneng 65W 1A1C charger model GTA97-65W-1A1C-ULF, 1A1C dual output configuration, USB-C support 5V3A / 9V3A / 12V3A / 15V3A / 20V3.25A output, USB-A support 5V2A / 9V2A / 12V1.5A output, dual port simultaneous output when the power is adjusted to 45W + 18W, can be dual-port fast charging at the same time. Three-dimensional size 31.58mm X 61.29mm X 54.32mm, power density 0.61W/cm.
65W 1A2C
Weiyuan Xinneng 65W 1A2C charger model GTA97-65W-1A2C-ULF, 1A2C three outputs configuration, USB-C1/C2 support power blind plug function, separate outputs are supported 5V3A / 9V3A / 12V3A / 15V3A / 20V3.25A output, USB-A support 5V2A / 9V2A / 12V1.5A output. Three-dimensional size 31.58mm X 61.29mm X 54.32mm, power density 0.61W/cm.
100W 1C
Vegener 100W 1C charger model GTA97-100W-1C-ULF, single USB-C output configuration, support 5V3A / 9V3A / 12V3A / 15V3A / 20V5A five fixed voltage outputs, the maximum output power of 100W. Three-dimensional size 31.00mm X 73.34mm X 67.14mm, power density of 0.65W/cm, output power up to the current USB PD3.0 standard upper limit.
120W 2A2C
Weiyuan Xinneng 120W 2A2C charger model GP1201-2A2C-ULF, 2A2C a total of four output port configuration, USB-C1/C2 support power blind plug function, support 5V3A / 9V3A / 12V3A / 15V3A / 20V5A output when the output is alone, single port supports 100W full-power PD fast charge; USB-A supports 5V2A / 9V2A / 12V1.5A output; global total output power 120W. 3D size 32.04mm X 73.91mm X 66.94mm, power density 0.75W/cm.
Appearance patents
Charging head net summary

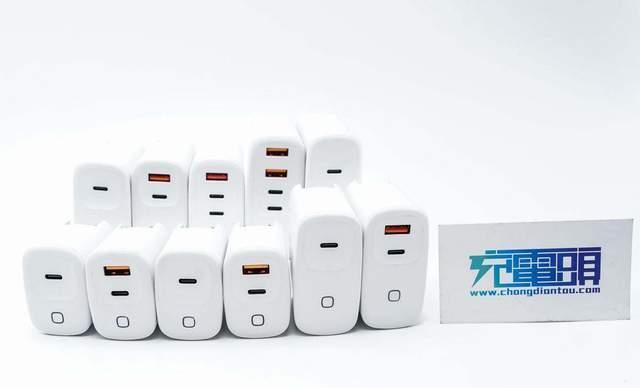

Weiyuan New Energy launched 11 PD fast chargers in one go, the power is 20W, 30W, 45W, 65W, 100W, 120W, the interface has 1C, 1A1C, 1A2C, 2A2C, to meet the iPhone, iPad, Macbook and other different equipment fast charging needs, multi-device use occasions can also be taken into account, foldable pin design support global voltage, convenient for customers in different regions to buy. YWing PD Quick Charge Series has accepted OEM/ODM orders, please contact YWN for details.
