使用Visual Studio宏來自動生成代碼 [ Visual Studio | 宏

一、預備

1.2 環境 Microsoft Visual Studio 2008、Microsoft SQL Server 2000

二、目的

根據類名(類名和表名須一緻)自動生成列名、字段說明、屬性(Properties)、構造函數。

三、實作步驟

3.1 準備測試用表結構

if exists (select * from dbo.sysobjects where id = object_id(N'[dbo].[User]') and OBJECTPROPERTY(id, N'IsUserTable') = 1)

drop table [dbo].[User]

CREATE TABLE [dbo].[User] (

[UniqueID] [int] IDENTITY (1, 1) NOT NULL ,

[Username] [varchar] (20) COLLATE Chinese_PRC_CI_AS NULL ,

[Password] [varchar] (20) COLLATE Chinese_PRC_CI_AS NULL ,

[Name] [char] (10) COLLATE Chinese_PRC_CI_AS NULL ,

[UserPermission_Id] [int] NULL

) ON [PRIMARY]

ALTER TABLE [dbo].[User] ADD

CONSTRAINT [PK_Users] PRIMARY KEY CLUSTERED

(

[UniqueID]

) ON [PRIMARY]

exec sp_addextendedproperty N'MS_Description', N'姓名', N'user', N'dbo', N'table', N'User', N'column', N'Name'

exec sp_addextendedproperty N'MS_Description', N'密碼', N'user', N'dbo', N'table', N'User', N'column', N'Password'

exec sp_addextendedproperty N'MS_Description', N'使用者名', N'user', N'dbo', N'table', N'User', N'column', N'Username'

exec sp_addextendedproperty N'MS_Description', N'使用者權限', N'user', N'dbo', N'table', N'User', N'column', N'UserPermission_Id'

3.2 準備擷取表結構幫助類(C#)

3.2.1 建立項目 -> 類庫，項目名稱：SqlSchemaProvider

2.2.2 資料傳輸類ColumnInfo.cs

using System;

using System.Collections.Generic;

using System.Text;

/// <summary>

/// 字段資訊

/// </summary>

public sealed class ColumnInfo

{

#region Member Variable

private string name;

private string desc;

private string type;

#endregion

#region Constructor

public ColumnInfo(string name, string type, string desc)

{

this.name = name;

this.desc = desc;

this.type = type;

}

#region Properties

/// <summary>

/// 列名

/// </summary>

public string Name

get { return name; }

set { name = value; }

/// 列說明

public string Description

get { return desc; }

set { desc = value; }

/// 資料類型(已經轉換為C#)

public string Type

get { return type; }

set { type = value; }

}

2.2.3 中繼資料擷取幫助類SqlSchemaProvider.cs ，注意這裡使用了SqlHelper.cs！

//==============================================================================

// 作者：農民伯伯

// 郵箱：[email protected]

// 博客：http://over140.cnblogs.com/

// 時間：2009-6-24

// 描述：擷取SQL SERVER 中繼資料

using System.Data;

using System.Data.SqlClient;

public sealed class SqlSchemaProvider

#region GetTableColumns

public ColumnInfo[] GetTableColumns(string connectstring, string tableName)

List<ColumnInfo> result = new List<ColumnInfo>();

SqlConnectionStringBuilder scsb = new SqlConnectionStringBuilder(connectstring);

using (SqlDataReader reader = SqlHelper.ExecuteReader(scsb.ConnectionString, CommandType.Text, SQL2000_GetTableColumns,

new SqlParameter("@DatabaseName", scsb.InitialCatalog),

new SqlParameter("@SchemaName", "dbo"),

new SqlParameter("@TableName", tableName)))

{

while (reader.Read())

{

result.Add(new ColumnInfo(reader.GetString(0), GetCSharpType(reader.GetString(1)), reader.GetString(17)));

}

return result.ToArray();

#region Type Maps

private string GetCSharpType(string type)

if (string.IsNullOrEmpty(type))

return "string";

string reval = string.Empty;

switch (type.ToLower())

case "varchar":

case "nchar":

case "ntext":

case "text":

case "char":

case "nvarchar":

reval = "string";

break;

case "int":

reval = "int";

case "smallint":

reval = "Int16";

case "bigint":

reval = "Int64";

case "float":

reval = "double";

case "bit":

reval = "bool";

case "decimal":

case "smallmoney":

case "money":

case "numeric":

reval = "decimal";

case "binary":

reval = "System.Byte[]";

case "real":

reval = "System.Single";

case "datetime":

case "smalldatetime":

case "timestamp":

reval = "System.DateTime";

case "tinyint":

reval = "System.Byte";

case "uniqueidentifier":

reval = "System.Guid";

case "image":

case "varbinary":

case "Variant":

reval = "Object";

default:

return reval;

}

#region SQL Templates

private const string SQL2000_GetTableColumns = @"

SELECT

clmns.[name] AS [Name],

usrt.[name] AS [DataType],

ISNULL(baset.[name], N'') AS [SystemType],

CAST(CASE WHEN baset.[name] IN (N'char', N'varchar', N'binary', N'varbinary', N'nchar', N'nvarchar') THEN clmns.prec ELSE clmns.length END AS INT) AS [Length],

CAST(clmns.xprec AS TINYINT) AS [NumericPrecision],

CAST(clmns.xscale AS INT) AS [NumericScale],

CASE CAST(clmns.isnullable AS BIT) WHEN 1 THEN 'YES' ELSE 'NO' END AS [Nullable],

defaults.text AS [DefaultValue],

CAST(COLUMNPROPERTY(clmns.id, clmns.[name], N'IsIdentity') AS INT) AS [Identity],

CAST(COLUMNPROPERTY(clmns.id, clmns.[name], N'IsRowGuidCol') AS INT) AS IsRowGuid,

CAST(COLUMNPROPERTY(clmns.id, clmns.[name], N'IsComputed') AS INT) AS IsComputed,

CAST(COLUMNPROPERTY(clmns.id, clmns.[name], N'IsDeterministic') AS INT) AS IsDeterministic,

CAST(CASE COLUMNPROPERTY(clmns.id, clmns.[name], N'IsIdentity') WHEN 1 THEN IDENT_SEED(QUOTENAME(stbl.[name]) + '.' + QUOTENAME(tbl.[name])) ELSE 0 END AS NVARCHAR(40)) AS [IdentitySeed],

CAST(CASE COLUMNPROPERTY(clmns.id, clmns.[name], N'IsIdentity') WHEN 1 THEN IDENT_INCR(QUOTENAME(stbl.[name]) + '.' + QUOTENAME(tbl.[name])) ELSE 0 END AS NVARCHAR(40)) AS [IdentityIncrement],

cdef.[text] AS ComputedDefinition,

clmns.[collation] AS Collation,

CAST(clmns.colid AS int) AS ObjectId,

isnull(prop.value, '') AS ColumnDesc

FROM

dbo.sysobjects AS tbl

INNER JOIN dbo.sysusers AS stbl ON stbl.[uid] = tbl.[uid]

INNER JOIN dbo.syscolumns AS clmns ON clmns.id=tbl.id

LEFT JOIN dbo.systypes AS usrt ON usrt.xusertype = clmns.xusertype

LEFT JOIN dbo.sysusers AS sclmns ON sclmns.uid = usrt.uid

LEFT JOIN dbo.systypes AS baset ON baset.xusertype = clmns.xtype and baset.xusertype = baset.xtype

LEFT JOIN dbo.syscomments AS defaults ON defaults.id = clmns.cdefault

LEFT JOIN dbo.syscomments AS cdef ON cdef.id = clmns.id AND cdef.number = clmns.colid

LEFT OUTER JOIN sysproperties prop ON clmns.id = prop.id AND clmns.colid = prop.smallid

WHERE

(tbl.[type] = 'U' OR tbl.[type] = 'S')

AND stbl.[name] = 'dbo'

AND tbl.[name] = @TableName

ORDER BY

clmns.colorder";

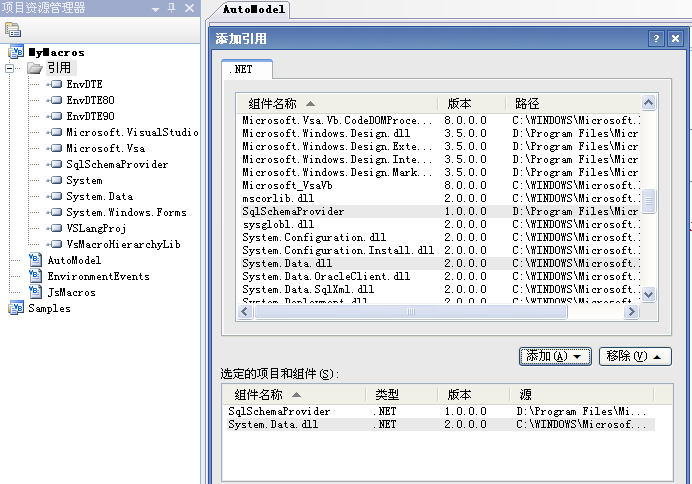

3.3 宏中引用幫助類

3.3.1 由于不能直接用絕對路徑添加dll，是以需要将SqlSchemaProvider.dll拷貝到<安裝目錄>\Microsoft Visual Studio 9.0\Common7\IDE\PublicAssemblies

3.3.2 引用System.Data.dll和SqlSchemaProvider.dll

使用Visual Studio宏來自動生成代碼 [ Visual Studio | 宏 | 自動生成代碼 ]

3.4 編寫宏代碼

Imports System

Imports EnvDTE

Imports EnvDTE80

Imports EnvDTE90

Imports System.Diagnostics

Imports System.Collections.Generic

'============================================================================

' 作者：農民伯伯

' 郵箱：[email protected]

' 博客：http://over140.cnblogs.com/

' 時間：2009-6-24

' 描述：自動生成Model宏

Public Module AutoModel

Dim selection As EnvDTE.TextSelection

Sub GenerateModel()

Dim schemaProvide As SqlSchemaProvider = New SqlSchemaProvider()

Const ConnStr As String = "Data Source=.;Initial Catalog=DBName;User ID=sa;Password=sa;"

Dim tableName As String

Dim columns() As ColumnInfo '用于存放字段資訊

Dim line As Integer

selection = DTE.ActiveDocument.Selection

tableName = selection.Text

'------------------------------------------------------驗證

If String.IsNullOrEmpty(tableName) Then

MsgBox("請選擇要表名！", MsgBoxStyle.OkOnly)

Return

End If

'取得所有字段

columns = schemaProvide.GetTableColumns(ConnStr, tableName)

If columns.Length = 0 Then

MsgBox("表不存在或該表沒有字段！", MsgBoxStyle.OkOnly)

'移動目前行位置，添加占位行

line = selection.ActivePoint.Line + 2

selection.GotoLine(line)

selection.NewLine(columns.Length * 2)

'------------------------------------------------------成員變量

NewLineInsert("#region Member Variable")

selection.NewLine(2)

For Each column As ColumnInfo In columns

InsertNewLine(String.Format("private {0} {1};", column.Type, column.Name.ToLower()))

NewLineInsert("#endregion")

selection.NewLine()

'------------------------------------------------------構造函數

NewLineInsert("#region Constructor")

NewLineInsert(String.Format("public {0}()", tableName))

NewLineInsert("{")

NewLineInsert("}")

'------------------------------------------------------字段

NewLineInsert("#region 字段名稱")

InsertNewLine("/// <summary>")

If (String.IsNullOrEmpty(column.Description)) Then

InsertNewLine("沒有字段說明")

Else

InsertNewLine(column.Description)

End If

InsertNewLine("</summary>")

selection.GotoLine(selection.AnchorPoint.Line)

selection.SelectLine()

InsertNewLine(String.Format("public const string CN_{0} = ""{0}"";", column.Name))

selection.NewLine()

InsertNewLine("#endregion")

'------------------------------------------------------屬性(Properties)

NewLineInsert("#region Properties")

InsertNewLine(String.Format("public {0} {1}", column.Type, System.Threading.Thread.CurrentThread.CurrentCulture.TextInfo.ToTitleCase(column.Name)))

InsertNewLine("{")

InsertNewLine(String.Concat("get { return ", column.Name.ToLower(), "; }"))

InsertNewLine(String.Concat("set { ", column.Name.ToLower(), " = value; }"))

InsertNewLine("}")

'格式化文檔

'DTE.ExecuteCommand("Edit.FormatDocument")

DTE.ExecuteCommand("編輯.設定文檔的格式")

'折疊代碼

DTE.ExecuteCommand("編輯.折疊到定義")

End Sub

Sub NewLineInsert(ByVal code As String)

'相當于在編輯器内按Enter鍵

selection.Insert(code)

Sub InsertNewLine(ByVal code As String)

End Module

代碼說明：

a). 如果不熟悉VBA程式設計建議盡量将邏輯代碼、通路資料庫代碼用C#寫成類庫再引用進來調用。

b). 注意連接配接資料庫字元串ConnStr需要替換成自己的資料庫連接配接字元串！

c). 輸出代碼的排版并不全是簡單的一行輸出一個字串就行了，需要模拟你在編輯器中輸入代碼的同時VS自動生成的代碼，比如在一個屬性(Property)上行輸入"///"他就會自動給你生成注釋，如果你在後面的行還輸出"/// 說明"那就會出錯了，格式也亂了，是以需要特别注意！

d). 宏最後有"DTE.ExecuteCommand("編輯.設定文檔的格式")"這樣的代碼，這個用于直接調用工具欄裡面功能，這裡寫英文的行，寫中文的也行:)

3.5 設定運作宏

3.5.2 建立類User，注意類名和表名須一緻

class User

3.5.3 選中類名User，快捷鍵Ctrl+G、Ctrl+M運作宏，生成如下:

　　　　　　　　展開部分代碼
