ElasticJob‐Lite：事件追蹤

添加依賴（​

​3.0.1​

​​是目前最新的​

​Releases​

​版本）：

<dependency>
            <groupId>org.apache.shardingsphere.elasticjob</groupId>
            <artifactId>elasticjob-lite-core</artifactId>
            <version>3.0.1</version>
        </dependency>

​

​ElasticJob​

​​提供了事件追蹤功能，可通過事件訂閱的方式處理排程過程的重要事件，用于查詢、統計和監控。目前提供了基于關系型資料庫的事件訂閱方式記錄事件，開發者也可以通過​

​SPI​

​​自行擴充，部落客在下面這篇部落格中介紹了如何通過​

​SPI​

​自行擴充作業類型，方式是類似的。

• ​​ElasticJob‐Lite：擴充作業類型​​

​

​pom.xml​

​：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.kaven</groupId>
    <artifactId>job</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.apache.shardingsphere.elasticjob</groupId>
            <artifactId>elasticjob-lite-core</artifactId>
            <version>3.0.0</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.26</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.22</version>
            <scope>provided</scope>
        </dependency>
    </dependencies>
</project>

作業定義（以​

​Simple​

​作業為例）：

package com.kaven.job;

import lombok.SneakyThrows;
import org.apache.shardingsphere.elasticjob.api.ShardingContext;
import org.apache.shardingsphere.elasticjob.simple.job.SimpleJob;

import java.text.SimpleDateFormat;
import java.util.Date;

/**
 * @Author: ITKaven
 * @Date: 2021/11/20 17:02
 * @Leetcode: https://leetcode-cn.com/u/kavenit
 * @Notes:
 */
public class MySimpleJob implements SimpleJob {
    private static final SimpleDateFormat formatter =new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");

    @SneakyThrows
    @Override
    public void execute(ShardingContext shardingContext) {
        switch (shardingContext.getShardingItem()) {
            case 0:
                System.out.println(formatter.format(new Date()) + " : ShardingItem[0]");
                Thread.sleep(2000);
                break;
            case 1:
                System.out.println(formatter.format(new Date()) + " : ShardingItem[1]");
                Thread.sleep(2000);
                break;
            case 2:
                System.out.println(formatter.format(new Date()) + " : ShardingItem[2]");
                Thread.sleep(2000);
                break;
            default:
                System.out.println(formatter.format(new Date()) + " : Unknown ShardingItem");
        }
    }
}

啟動類​

​Application​

​ ：

package com.kaven.job;

import com.mysql.cj.jdbc.MysqlDataSource;
import org.apache.shardingsphere.elasticjob.api.JobConfiguration;
import org.apache.shardingsphere.elasticjob.lite.api.bootstrap.impl.ScheduleJobBootstrap;
import org.apache.shardingsphere.elasticjob.reg.base.CoordinatorRegistryCenter;
import org.apache.shardingsphere.elasticjob.reg.zookeeper.ZookeeperConfiguration;
import org.apache.shardingsphere.elasticjob.reg.zookeeper.ZookeeperRegistryCenter;
import org.apache.shardingsphere.elasticjob.tracing.api.TracingConfiguration;

import javax.sql.DataSource;

/**
 * @Author: ITKaven
 * @Date: 2021/11/20 17:05
 * @Leetcode: https://leetcode-cn.com/u/kavenit
 * @Notes:
 */
public class Application {

    public static void main(String[] args) {
        new ScheduleJobBootstrap(createRegistryCenter(), new MySimpleJob(),
                createJobConfiguration()).schedule();
    }

    // 注冊中心
    private static CoordinatorRegistryCenter createRegistryCenter() {
        ZookeeperConfiguration zc = new ZookeeperConfiguration("192.168.31.172:9000", "my-job");
        zc.setConnectionTimeoutMilliseconds(40000);
        zc.setMaxRetries(5);
        CoordinatorRegistryCenter regCenter = new ZookeeperRegistryCenter(zc);
        regCenter.init();
        return regCenter;
    }

    // 資料源
    private static DataSource getDataSource() {
        MysqlDataSource dataSource = new MysqlDataSource();
        dataSource.setUser("root");
        dataSource.setPassword("[email protected]");
        dataSource.setURL("jdbc:mysql://localhost:3306/trace?useUnicode=true&characterEncoding=UTF-8&useSSL=false&serverTimezone=Asia/Shanghai&allowPublicKeyRetrieval=true");
        return dataSource;
    }

    // 作業配置
    private static JobConfiguration createJobConfiguration() {
        TracingConfiguration tracingConfig = new TracingConfiguration<>("RDB", getDataSource());
        return JobConfiguration.newBuilder("MySimpleJob", 3)
                .description("該作業有三個分片，每隔一分鐘執行一次")
                .cron("30 * * * * ?")
                .addExtraConfigurations(tracingConfig)
                .overwrite(true)
                .failover(true)
                .build();
    }
}

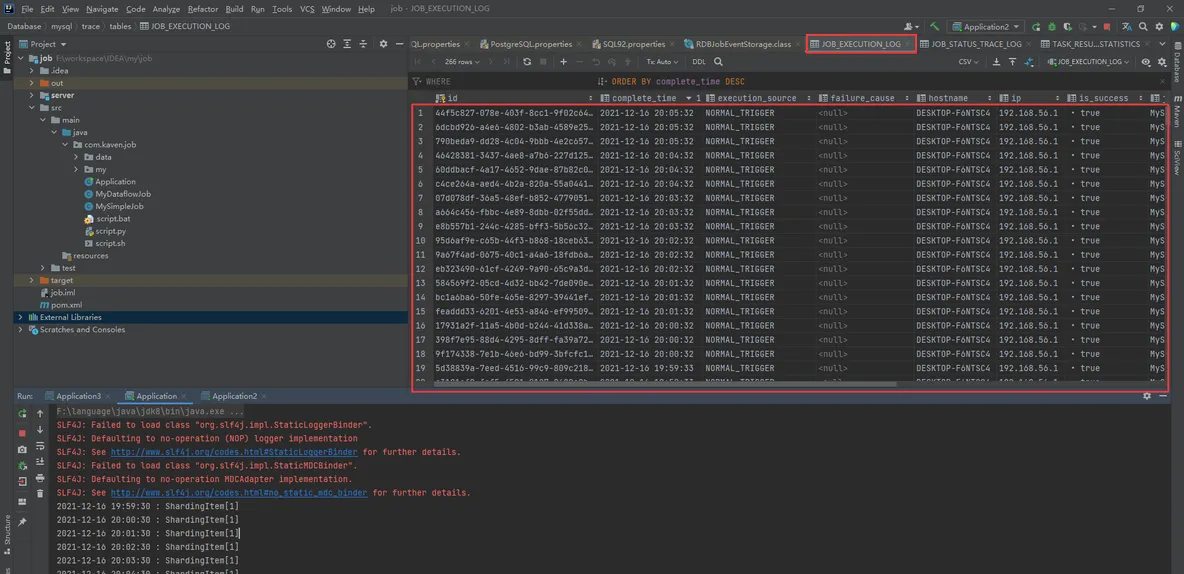

執行作業後，資料庫就會有作業的執行記錄。
