SpringCloud-Zuul簡介

目錄

概述

建立工程microservice-gateway-zuul

pom.xml

application.yml

ZuulApplication

測試

檢視注冊服務

通路原服務

通過Zuul通路服務

小結

概述

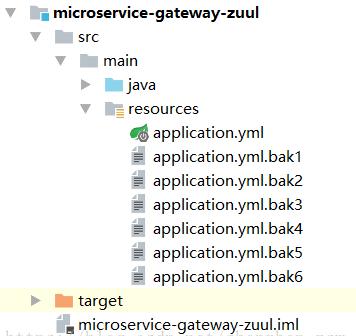

建立工程microservice-gateway-zuul

pom.xml

microservice-gateway-zuul/pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<parent>
		<groupId>com.itmuch.cloud</groupId>
		<artifactId>microservice-spring-cloud</artifactId>
		<version>0.0.1-SNAPSHOT</version>
	</parent>

	<artifactId>microservice-gateway-zuul</artifactId>
	<packaging>jar</packaging>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-zuul</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-eureka</artifactId>
		</dependency>
	</dependencies>

</project>


application.yml

spring:
  application:
    name: microservice-gateway-zuul
server:
  port: 8040
eureka:
  client:
    service-url:
      defaultZone: http://user:[email protected]:8761/eureka
  instance:
    prefer-ip-address: true
hystrix.command.default.execution.isolation.thread.timeoutInMilliseconds: 60000
ribbon:
  ConnectTimeout: 3000
  ReadTimeout: 60000


ZuulApplication

com.itmuch.cloud.ZuulApplication

package com.itmuch.cloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.zuul.EnableZuulProxy;

@SpringBootApplication
@EnableZuulProxy
public class ZuulApplication {
  public static void main(String[] args) {
    SpringApplication.run(ZuulApplication.class, args);
  }
}


測試

檢視注冊服務

通路原服務

http://localhost:8010/movie/1

通過Zuul通路服務

http://localhost:8040/microservice-consumer-movie-ribbon/movie/1

說明：

    1）通路的是zuul服務端口；

    2）指定預設的服務名稱和對應的接口；

小結

    1）上面示例最簡單的zuul示例；

==============================
