前言
使用的開發工具為vs 2019
本文所使用的方法同樣适用于vs 2013建立的項目,親測有效

下載下傳swagger

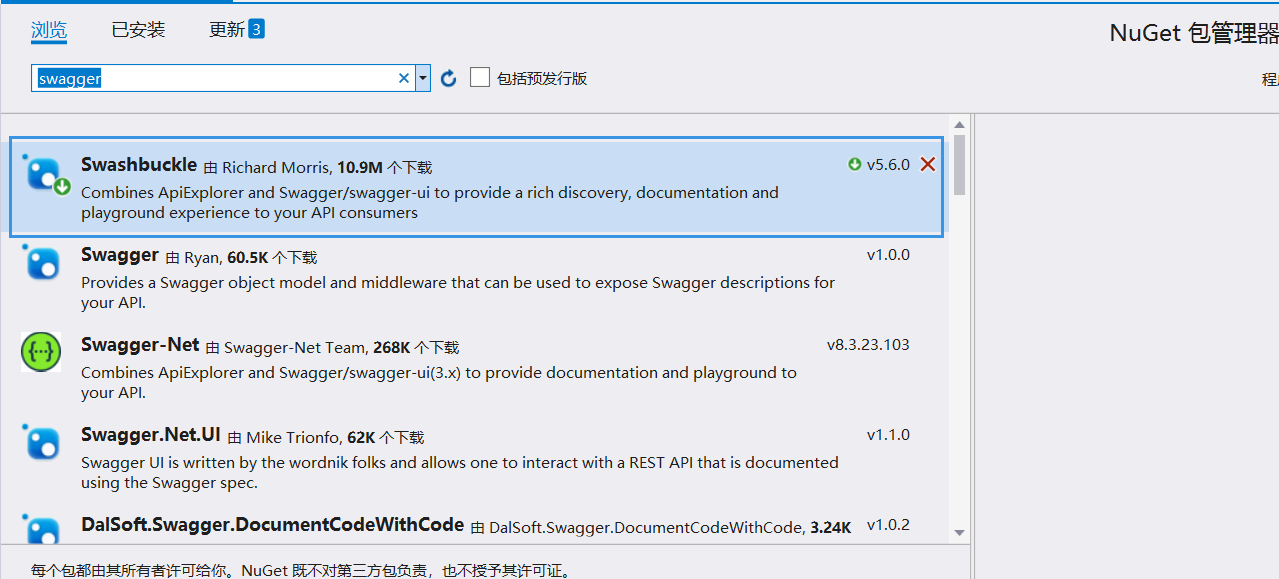

打開NuGet包管理器,安裝圖中的包

asp.net web api2 使用swaggerUI線上文檔(實作分組和設定響應類模型和漢化)下載下傳swagger準備工作顯示api接口注釋漢化Swagger UI實作分組設定響應類模型修改SwaggerConfig.cs檔案

準備工作

勾選XML文檔檔案後儲存退出

修改WebApiConfig檔案中的預設路由

public static class WebApiConfig
    {
        public static void Register(HttpConfiguration config)
        {
            // Web API 配置和服務

            // Web API 路由
            config.MapHttpAttributeRoutes();

            config.Routes.MapHttpRoute(
                name: "DefaultApi",
                //修改路由為控制器下的每個方法
                routeTemplate: "api/{controller}/{action}",
                defaults: new { id = RouteParameter.Optional }
            );
        }
    }

顯示api接口注釋

在APP_Start檔案夾下建立一個SwaggerCacheProvider類

using Swashbuckle.Swagger;
using System;
using System.Collections.Concurrent;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using System.Web;
using System.Xml;

namespace myFirst.App_Start
{
    /// <summary>
    /// 顯示swagger控制器的描述
    /// </summary>
    public class SwaggerControllerDescProvider : ISwaggerProvider
    {
        private readonly ISwaggerProvider _swaggerProvider;
        private static ConcurrentDictionary<string, SwaggerDocument> _cache = new ConcurrentDictionary<string, SwaggerDocument>();
        private readonly string _xml;
        /// <summary>
        ///
        /// </summary>
        /// <param name="swaggerProvider"></param>
        /// <param name="xml">xml文檔路徑</param>
        public SwaggerControllerDescProvider(ISwaggerProvider swaggerProvider, string xml)
        {
            _swaggerProvider = swaggerProvider;
            _xml = xml;
        }

        public SwaggerDocument GetSwagger(string rootUrl, string apiVersion)
        {

            var cacheKey = string.Format("{0}_{1}", rootUrl, apiVersion);
            SwaggerDocument srcDoc = null;
            //隻讀取一次
            if (!_cache.TryGetValue(cacheKey, out srcDoc))
            {
                srcDoc = _swaggerProvider.GetSwagger(rootUrl, apiVersion);

                srcDoc.vendorExtensions = new Dictionary<string, object> { { "ControllerDesc", GetControllerDesc() } };
                _cache.TryAdd(cacheKey, srcDoc);
            }
            return srcDoc;
        }

        /// <summary>
        /// 從API文檔中讀取控制器描述
        /// </summary>
        /// <returns>所有控制器描述</returns>
        public ConcurrentDictionary<string, string> GetControllerDesc()
        {
            string xmlpath = _xml;
            ConcurrentDictionary<string, string> controllerDescDict = new ConcurrentDictionary<string, string>();
            if (File.Exists(xmlpath))
            {
                XmlDocument xmldoc = new XmlDocument();
                xmldoc.Load(xmlpath);
                string type = string.Empty, path = string.Empty, controllerName = string.Empty;

                string[] arrPath;
                int length = -1, cCount = "Controller".Length;
                XmlNode summaryNode = null;
                foreach (XmlNode node in xmldoc.SelectNodes("//member"))
                {
                    type = node.Attributes["name"].Value;
                    if (type.StartsWith("T:"))
                    {
                        //控制器
                        arrPath = type.Split('.');
                        length = arrPath.Length;
                        controllerName = arrPath[length - 1];
                        if (controllerName.EndsWith("Controller"))
                        {
                            //擷取控制器注釋
                            summaryNode = node.SelectSingleNode("summary");
                            string key = controllerName.Remove(controllerName.Length - cCount, cCount);
                            if (summaryNode != null && !string.IsNullOrEmpty(summaryNode.InnerText) && !controllerDescDict.ContainsKey(key))
                            {
                                controllerDescDict.TryAdd(key, summaryNode.InnerText.Trim());
                            }
                        }
                    }
                }
            }
            return controllerDescDict;
        }
    }
}

漢化Swagger UI

定義一個JS檔案,做成嵌入資源，這個js檔案的功能主要有兩個，一個是漢化，另一個就是在界面上顯示控制器的描述文字

'use strict';
window.SwaggerTranslator = {
    _words: [],

    translate: function () {
        var $this = this;
        $('[data-sw-translate]').each(function () {
            $(this).html($this._tryTranslate($(this).html()));
            $(this).val($this._tryTranslate($(this).val()));
            $(this).attr('title', $this._tryTranslate($(this).attr('title')));
        });
    },

    setControllerSummary: function () {

        try
        {
            console.log($("#input_baseUrl").val());
            $.ajax({
                type: "get",
                async: true,
                url: $("#input_baseUrl").val(),
                dataType: "json",
                success: function (data) {

                    var summaryDict = data.ControllerDesc;
                    console.log(summaryDict);
                    var id, controllerName, strSummary;
                    $("#resources_container .resource").each(function (i, item) {
                        id = $(item).attr("id");
                        if (id) {
                            controllerName = id.substring(9);
                            try {
                                strSummary = summaryDict[controllerName];
                                if (strSummary) {
                                    $(item).children(".heading").children(".options").first().prepend('<li class="controller-summary" style="color:green;" title="' + strSummary + '">' + strSummary + '</li>');
                                }
                            } catch (e)
                            {
                                console.log(e);
                            }
                        }
                    });
                }
            });
        }catch(e)
        {
            console.log(e);
        }
    },
    _tryTranslate: function (word) {
        return this._words[$.trim(word)] !== undefined ? this._words[$.trim(word)] : word;
    },

    learn: function (wordsMap) {
        this._words = wordsMap;
    }
};


/* jshint quotmark: double */
window.SwaggerTranslator.learn({
    "Warning: Deprecated": "警告：已過時",
    "Implementation Notes": "實作備注",
    "Response Class": "響應類",
    "Status": "狀态",
    "Parameters": "參數",
    "Parameter": "參數",
    "Value": "值",
    "Description": "描述",
    "Parameter Type": "參數類型",
    "Data Type": "資料類型",
    "Response Messages": "響應消息",
    "HTTP Status Code": "HTTP狀态碼",
    "Reason": "原因",
    "Response Model": "響應模型",
    "Request URL": "請求URL",
    "Response Body": "響應體",
    "Response Code": "響應碼",
    "Response Headers": "響應頭",
    "Hide Response": "隐藏響應",
    "Headers": "頭",
    "Try it out!": "試一下！",
    "Show/Hide": "顯示/隐藏",
    "List Operations": "顯示操作",
    "Expand Operations": "展開操作",
    "Raw": "原始",
    "can't parse JSON.  Raw result": "無法解析JSON. 原始結果",
    "Model Schema": "模型架構",
    "Model": "模型",
    "apply": "應用",
    "Username": "使用者名",
    "Password": "密碼",
    "Terms of service": "服務條款",
    "Created by": "建立者",
    "See more at": "檢視更多：",
    "Contact the developer": "聯系開發者",
    "api version": "api版本",
    "Response Content Type": "響應Content Type",
    "fetching resource": "正在擷取資源",
    "fetching resource list": "正在擷取資源清單",
    "Explore": "浏覽",
    "Show Swagger Petstore Example Apis": "顯示 Swagger Petstore 示例 Apis",
    "Can't read from server.  It may not have the appropriate access-control-origin settings.": "無法從伺服器讀取。可能沒有正确設定access-control-origin。",
    "Please specify the protocol for": "請指定協定：",
    "Can't read swagger JSON from": "無法讀取swagger JSON于",
    "Finished Loading Resource Information. Rendering Swagger UI": "已加載資源資訊。正在渲染Swagger UI",
    "Unable to read api": "無法讀取api",
    "from path": "從路徑",
    "server returned": "伺服器傳回"
});
$(function () {
    window.SwaggerTranslator.translate();
    window.SwaggerTranslator.setControllerSummary();
});

将定義的js檔案屬性的生成操作更改為嵌入的資源

實作分組

在APP_Start檔案夾下建立一個ControllerGroupAttribute特性類

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;

namespace myFirst.App_Start
{
    ///
    /// Controller描述資訊 ///
    [AttributeUsage(AttributeTargets.Class, AllowMultiple = false)]
    public class ControllerGroupAttribute : Attribute
    { ///
        /// 目前Controller所屬子產品 請用中文
        public string GroupName { get; private set; }

        /// 目前controller用途 請用中文 ///
        public string Useage { get; private set; }

        /// Controller描述資訊 構造
        public ControllerGroupAttribute(string groupName)
        {
            if (string.IsNullOrEmpty(groupName) || string.IsNullOrEmpty(useage))
            {
                throw new ArgumentNullException("分組資訊不能為空");
            }
            GroupName = groupName;
            Useage = useage;
        }
    }
}

參考位址

設定響應類模型

通過ResponseType特性進行設定

格式為: [ResponseType(typeof(ViewModel))]

SwaggerUI中的顯示:

參考位址

修改SwaggerConfig.cs檔案

using System.Web.Http;
using WebActivatorEx;
using leaveSystemAPI;
using Swashbuckle.Application;
using System;
using myFirst.App_Start;
using System.Linq;
using Swashbuckle.Swagger;

[assembly: PreApplicationStartMethod(typeof(SwaggerConfig), "Register")]
namespace myFirst
{
    public class SwaggerConfig
    {
        public static void Register()
        {
            var thisAssembly = typeof(SwaggerConfig).Assembly;

            GlobalConfiguration.Configuration
                .EnableSwagger(c =>
                    {

                        c.SingleApiVersion("v1", "myFirst");

                        //顯示api接口注釋
                        var xmlFile = string.Format(@"{0}\bin\myFirst.xml", System.AppDomain.CurrentDomain.BaseDirectory);
                        if (System.IO.File.Exists(xmlFile))
                        {
                            c.IncludeXmlComments(xmlFile);
                        }
                        c.CustomProvider((defaultProvider) => new SwaggerControllerDescProvider(defaultProvider, xmlFile));

                        //設定分組名字
                        c.GroupActionsBy(apiDesc =>
                        apiDesc.GetControllerAndActionAttributes<ControllerGroupAttribute>().Any()?
                        apiDesc.GetControllerAndActionAttributes<ControllerGroupAttribute>().First().GroupName + " - " +
                        apiDesc.GetControllerAndActionAttributes<ControllerGroupAttribute>().First().Useage :"暫未設定ControllGroup");
                    })
                .EnableSwaggerUi(c =>
                    {
                        c.DocumentTitle("My Swagger UI");
                        //加載漢化的js檔案
                        c.InjectJavaScript(System.Reflection.Assembly.GetExecutingAssembly(), "myFirst.swagger-China.js");

                    });
        }
    }
}

完成以上修改後啟動項目,在位址欄中加上/swagger

例如: localhost:42361/swagger

即可通路到你的線上文檔了
