Postman使用手冊——API test

一、Pre Request Scripts

Postman v0.10+ 版本支援pre-request scripts。

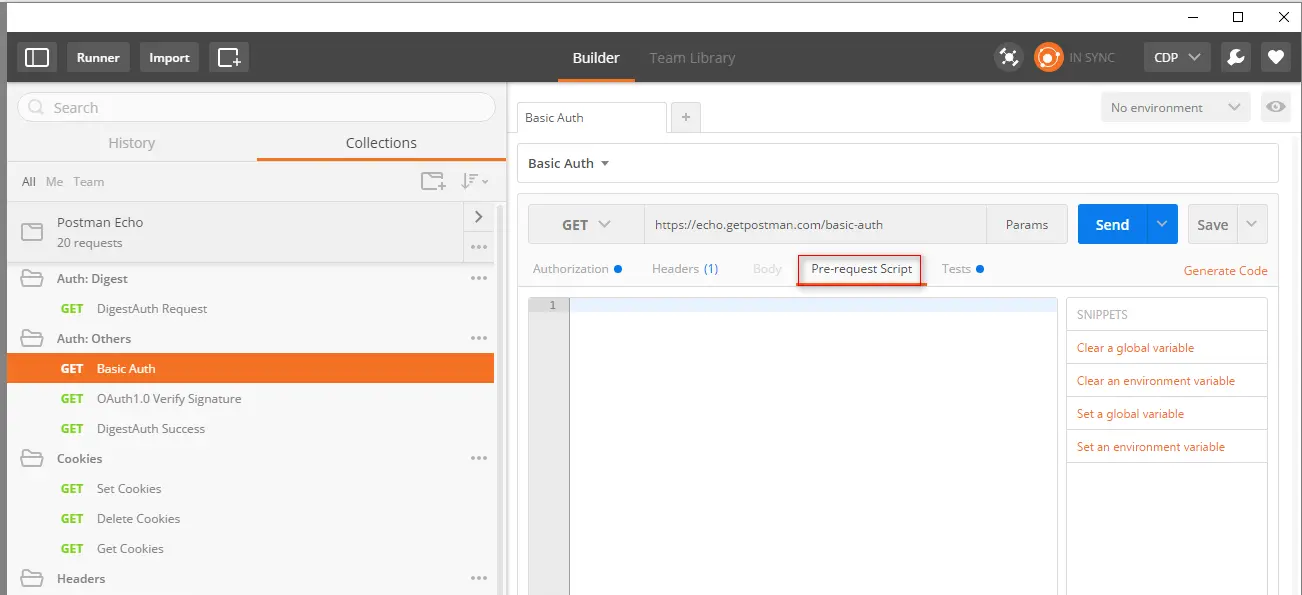

prerequest script.png

pre-request scripts是一個關聯了收藏夾内request，并且在發送request之前執行的代碼片段。這對于在request header中包含時間戳或者在URL參數中發送一個随機字元串都是非常有用的。

例如：如果要在request的header中包含一個時間戳，你可以設定一個環境變量由一個函數傳回他的值。

postman.setEnvironmentVariable('timestampHeader',new Date());


你可以在header中使 timestampHeader 變量，當request發送的時候，你的pre-request script将被執行，這個timestampHeader 變量的值将會替換{{timestampHeader}}。

注意：我們設定的環境對使用的環境變量必須是有效的。

二、Writing Tests

1.基本結構

![Uploading prerequest script_871640.png . . .]

Basic structure.png

Postman給了你一個環境讓你能夠為每個request編寫、執行你的test，而不用擔心任何額外的設定。

一個Postman的test本質上是JavaScript的代碼可以用來為一些特殊的test設定值。你可以在對象中設定一個描述性的鍵作為一個元素，然後聲明他如果是true或false。

tests[“Body contains user_id”] = responseBody.has(“user_id”)


這回核對body中是否包含了user_id這個字元串。如果你需要，你可以增加更多的鍵，這取決于你要用test做多少的事情。

test被儲存為收藏夾request的一部分，這對于後端或前端的工程師來確定API運作的正常都是非常有意義的。

2.SNIPPETS

在寫test的時候這裡有些事情需要注意，Postman嘗試使得列出常用的片段更簡單。你可以選擇你想添加的片段，然後适當的代碼将被添加到test的編輯器中。這是一個很好的方法來快速的建構test

3.檢視結果

view result.png

Postman在你執行一個request的時候執行test，當然你可以選擇不考慮test。結果被顯示在一個tab裡，并在頭部顯示多少test通過了測試。你設定在test中的變量将會被列在這裡。如果值是true，這個test就會通過。你可以保持test tab活動直到你確定所有的test執行完。

三、Testing Sandbox

Postman的sandbox是一個JavaScript的執行環境，這使得你能夠為request寫pre-request scripts和test scripts 。不論你寫的代碼是pre-request scripts還是test script都會在sandbox中執行。

1.常用的庫和工具

• Lodash：

  JS utility library

• jQuery (Deprecated):

  Cross-platform JavaScript library. This will be removed in future versions of the sandbox.

• BackboneJS (Deprecated):

  Provides simple models, views, and collections. This will be removed in future versions of the sandbox.

• SugarJS:

  Extends native JS objects with useful methods

• tv4 JSON schema validator:

  Validates JSON objects against v4 of the json-schema draft

• CryptoJS:

  standard and secure cryptographic algorithms. Supported algorithms: AES, DES, EvpKDF, HMAC-MD5, HMAC-SHA1/3/256/512, MD5, PBKDF2, Rabbit, SHA1/3/224/256/512, TripleDES

• xml2Json(xmlString)

  :

  This function behaves the same in Newman and Postman

• xmlToJson(xmlString)

  (Deprecated):

  This function does NOT behave the same in Newman and Postman

• postman.getResponseHeader(headerName)

   (Test-only):

  returns the response header with name "headerName", if it exists. Returns null if no such header exists. Note: According to W3C specifications, header names are case-insensitive. This method takes care of this.

  postman.getResponseHeader("Content-type") and postman.getResponseHeader("content-Type") will return the same value.

2.環境和全局變量

• postman.setEnvironmentVariable(variableName, variableValue)

   : Sets an environment variable "variableName", and assigns the string "variableValue" to it. You must have an environment selected for this method to work. Note: Only strings can be stored. Storing other types of data will result in unexpected behavior.

• postman.setGlobalVariable(variableName, variableValue)

  :

  Sets a global variable "variableName", and assigns the string "variableValue" to it. Note: Only strings can be stored. Storing other types of data will result in unexpected behavior.

• postman.clearEnvironmentVariable(variableName)

  :

  Clears the environment variable named "variableName". You must have an environment selected for this method to work.

• postman.clearGlobalVariable(variableName)

  :

  Clears the global variable named "variableName".

• postman.clearEnvironmentVariables()

  :

  Clears all environment variables. You must have an environment selected for this method to work.

• postman.clearGlobalVariables()

  :

  Clears all global variables.

• environment

  :

  A dictionary of variables in the current environment. Use environment["foo"]

  to access the value of the "foo" environment variable.

• globals

  :

  A dictionary of global variables. Useglobals["bar"]

  to access the value of the "bar" global variable.

3.動态變量

Postman也有一些動态變量，你可以用在你的request中。這個現在主要還是在實作階段，更多的功能以後被被添加進來。注意：動态變量不可以用于SandBox中，你隻能在request的URL、headers、body中以放在雙花括号中間的形式使用。

• {{$guid}}: Adds a v4 style guid
• {{$timestamp}}: Adds the current timestamp.
• {{$randomInt}}: Adds a random integer between 0 and 1000

4. Cookies

+ responseCookies {array} （Postman-only）:

Gets all cookies set for the domain. You will need to enable the Interceptor for this to work.

• postman.getResponseCookie(cookieName)（Postman-only）:

  Gets the response cookie with the given name. You will need to enable the interceptor for this to work. Check out the blog post.

5.Request/response相關屬性

• request {object}:

  Postman makes the request object available to you while writing scripts. This object is read-only. Changing properties of this object will have no effect. Note: Variables will NOT be resolved in the request object. The request object is composed of the following:

  • data {object}:

    this is a dictionary of form data for the request. (request.data["key"]=="value")

  • headers {object}:

    this is a dictionary of headers for the request (request.headers["key"]=="value")

  • method {string}:

    GET/POST/PUT etc.

  • url {string}:

    the url for the request.

• responseHeaders {object}(Test-only)(Deprecated):

  This is a map of the response headers. This is case-sensitive, and should not be used. Check thepostman.getResponseHeader()

  method listed above.

• responseBody {string}(Test-only):

  A string containing the raw response body text. You can use this as an input to JSON.parse, or xml2Json.

• responseTime {number}(Test-only):

  The response time in milliseconds

• responseCode {object}(Test-only):

  Contains three properties:

  • code {number}:

    The response code (200 for OK, 404 for Not Found etc)

  • name {string}:

    The status code text

  • detail {string}:

    An explanation of the response code

• tests {object}(Test-only):

  This object is for you to populate. Postman will treat each property of this object as a boolean test.

• iteration {number}:

  Only available in the Collection Runner and Newman. Represents the current test run index. Starts from 0.

(Test-only): This object is only available in the test script section. Using this in a pre-request script will throw an error.

四、Testing 執行個體

我們來看一些Postman用于test的例子。這些例子中的大多數在Postman中是有效的，他們像一行JavaScript語句一樣簡答。在你的request中你可以有很多的test。

注意：test腳本在從伺服器收到response後執行

1.設定環境變量：

postman.setEnvironmentVariable("key", "value");


2.設定全局變量：

postman.setGlobalVariable("key", "value");


3.檢查response的body中是否包含字元串：

4.把XML的body轉換成JSON對象：

var jsonObject = xml2Json(responseBody);


5.檢查response的body是都為一個字元串：

6.檢查JSON的值：

var data = JSON.parse(responseBody);
tests["Your test name"] = data.value === 100;


7.内容類型存在（檢查不區分大小寫）

8.内容類型存在（區分大小寫）：

9.response的響應時間小于200ms：

10.狀态碼為200：

11.Code name contains a string：

12.成功的POST request狀态碼：

13.Use TinyValidator for JSON data

var schema = {
    "items": {
     "type": "boolean"
     }
};
var data1 = [true, false];
var data2 = [true, ];

console.log(tv4.error);
tests["Valid Data1"] = tv4.validate(data1, schema);
tests["Valid Data2"] = tv4.validate(data2, schema);


14.Sample data files

JSON files are composed of key/value pairs：

Download JSON file

For CSV files, the top row needs to contain variable names

Download CSV file
