跟着PNAS學畫圖：R語言ggplot2分組添加拟合曲線

論文

https://www.pnas.org/content/118/20/e2010588118

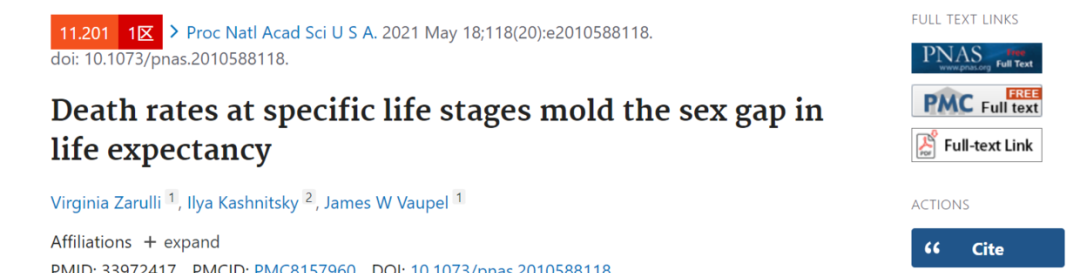

Death rates at specific life stages mold the sex gap in life expectancy


論文本地存儲

e2010588118.full.pdf

很有意思的一篇論文，研究的内容是為什麼女生比男生活的時間長（Why do women live longer than men?）哈哈哈。但是整篇論文我還沒有看明白，是以先不給大家介紹結論了。

這篇論文的資料和代碼是公開的，連結是 https://github.com/CPop-SDU/sex-gap-e0-pnas，我們按照他提供的代碼和資料試着複原一下論文裡的圖。今天的推文重複的内容是論文中的Figure1A


分組折線圖

用到的資料集是連結裡的dat檔案夾下的

df4qx.rda

檔案，

首選是導入資料

load("data/df4qx.rda")
head(df4qx)

複制


這個是一個長格式資料，把它轉變成寬格式

#install.packages("tidyverse")
library(tidyverse)
df4qx %>%
  pivot_wider(names_from = sex,values_from = qx) %>%
  head()

複制


這一步是為了友善計算不同年齡男女死亡率的比例

ggplot2作圖

df4qx %>%
  pivot_wider(names_from = sex,values_from = qx) -> dftemp

複制

最基本的圖

library(ggplot2)
dftemp %>%
  ggplot(aes(age,y=m/f,color=country))+
  geom_smooth(se=F,size=1,color="#ffffff",span=0.25)+
  geom_smooth(se = F, size = .5, span = .25)+
  theme_minimal(base_size = 16)

複制


這裡原始代碼還設定字型了，我這裡就跳過了，因為我的電腦沒有這個字型

接下來做細節調整

添加一條水準輔助線

dftemp %>%
  ggplot(aes(age,y=m/f,color=country))+
  geom_smooth(se=F,size=1,color="#ffffff",span=0.25)+
  geom_smooth(se = F, size = .5, span = .25)+
  theme_minimal(base_size = 16,base_family = "serif")+
  geom_hline(yintercept = 1, color = "gray25",  size = .5)

複制


更改x軸刻度範圍

dftemp %>%
  ggplot(aes(age,y=m/f,color=country))+
  geom_smooth(se=F,size=1,color="#ffffff",span=0.25)+
  geom_smooth(se = F, size = .5, span = .25)+
  theme_minimal(base_size = 16,base_family = "serif")+
  geom_hline(yintercept = 1, color = "gray25",  size = .5)+
  scale_x_continuous(breaks = c(0, 15, 40, 60, 80))

複制


對y軸進行log2轉換

dftemp %>%
  ggplot(aes(age,y=m/f,color=country))+
  geom_smooth(se=F,size=1,color="#ffffff",span=0.25)+
  geom_smooth(se = F, size = .5, span = .25)+
  theme_minimal(base_size = 16,base_family = "serif")+
  geom_hline(yintercept = 1, color = "gray25",  size = .5)+
  scale_x_continuous(breaks = c(0, 15, 40, 60, 80))+
  scale_y_continuous(
  trans = "log",
  breaks = c(.5, 1, 2, 3),
  labels = c("", 1, 2, 3),
  limits = c(.75, 3.5))

複制


這一步為啥要做轉化呢有些沒看明白

自定義配色

pal_safe_five <- c(
  "#eec21f", # default R 4.0 yellow
  "#009C9C", # light shade of teal: no red, equal green and blue
  "#df356b", # default R 4.0 red
  "#08479A", # blues9[8] "#08519C" made a bit darker
  "#003737" # very dark shade of teal
)

pal_safe_five_ordered <- pal_safe_five[c(5,2,1,3,4)]
pal_four <- pal_safe_five_ordered[c(2,5,3,4)]

dftemp %>%
  ggplot(aes(age,y=m/f,color=country))+
  geom_smooth(se=F,size=1,color="#ffffff",span=0.25)+
  geom_smooth(se = F, size = .5, span = .25)+
  theme_minimal(base_size = 16,base_family = "serif")+
  geom_hline(yintercept = 1, color = "gray25",  size = .5)+
  scale_x_continuous(breaks = c(0, 15, 40, 60, 80))+
  scale_y_continuous(
    trans = "log",
    breaks = c(.5, 1, 2, 3),
    labels = c("", 1, 2, 3),
    limits = c(.75, 3.5))+
  scale_color_manual(NULL, values = pal_four)

複制


添加文本注釋

dftemp %>%
  ggplot(aes(age,y=m/f,color=country))+
  geom_smooth(se=F,size=1,color="#ffffff",span=0.25)+
  geom_smooth(se = F, size = .5, span = .25)+
  theme_minimal(base_size = 16,base_family = "serif")+
  geom_hline(yintercept = 1, color = "gray25",  size = .5)+
  scale_x_continuous(breaks = c(0, 15, 40, 60, 80))+
  scale_y_continuous(
    trans = "log",
    breaks = c(.5, 1, 2, 3),
    labels = c("", 1, 2, 3),
    limits = c(.75, 3.5))+
  scale_color_manual(NULL, values = pal_four)+
  annotate(
    "text", x = 50, y = .9,
    label = "Most recent year",
    size = 8.5, color = "grey50", alpha = .5,
    vjust = 1, family = "serif", fontface = 2
  )

複制


去掉圖例并更改坐标軸标題

dftemp %>%
  ggplot(aes(age,y=m/f,color=country))+
  geom_smooth(se=F,size=1,color="#ffffff",span=0.25)+
  geom_smooth(se = F, size = .5, span = .25)+
  theme_minimal(base_size = 16,base_family = "serif")+
  geom_hline(yintercept = 1, color = "gray25",  size = .5)+
  scale_x_continuous(breaks = c(0, 15, 40, 60, 80))+
  scale_y_continuous(
    trans = "log",
    breaks = c(.5, 1, 2, 3),
    labels = c("", 1, 2, 3),
    limits = c(.75, 3.5))+
  scale_color_manual(NULL, values = pal_four)+
  annotate(
    "text", x = 50, y = .9,
    label = "Most recent year",
    size = 8.5, color = "grey50", alpha = .5,
    vjust = 1, family = "serif", fontface = 2
  )+
  theme(
    legend.position = "none",
    panel.grid.minor = element_blank()
  )+
  labs(
    y = "Sex ratio, log scale",
    x = "Age"
  )

複制
