AE開發——右鍵TOC中的圖層名顯示屬性表

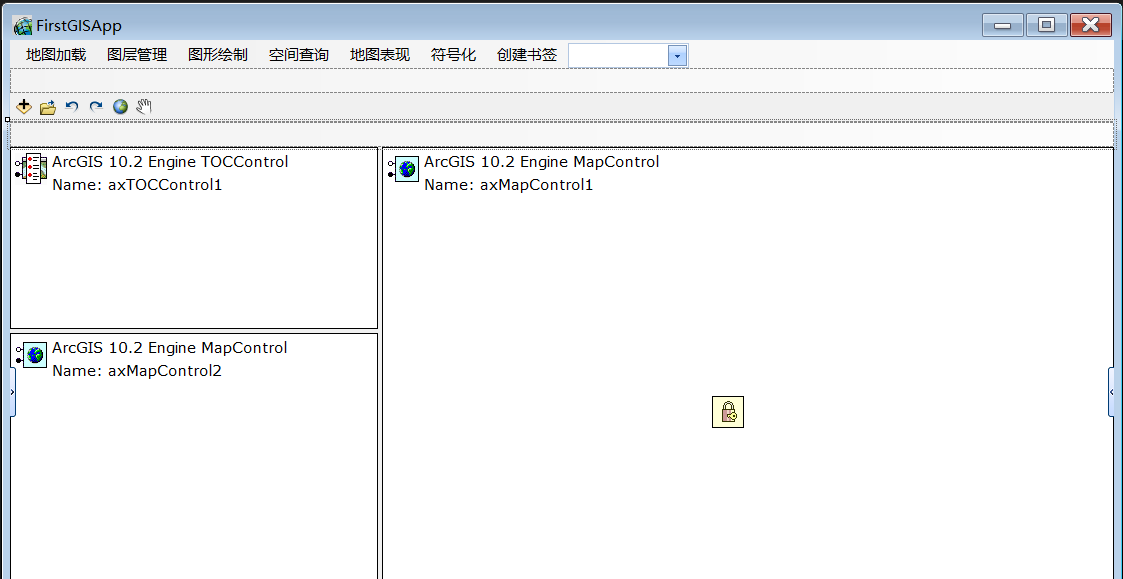

　　這是我設計的主窗體

　　建立一個窗體，拖入一個datagridview控件，用來展示圖層屬性，Dock屬性設為Fill

　　在主窗體中設定一個OnMouseDown事件

private void axTOCControl1_OnMouseDown ( object sender, ITOCControlEvents_OnMouseDownEvent e )
{
　　//滑鼠右鍵
   if (e.button == 2)
   {
   　　esriTOCControlItem Item = new esriTOCControlItem();
   　　IBasicMap pMap = new MapClass();
   　　ILayer pLayer = new FeatureLayerClass();
   　　object pOther = new object();
   　　object pIndex = new object();
   　　//擷取滑鼠點選的圖層，通過ref參數傳回點選位置所關聯的圖層
   　　this.axTOCControl1.HitTest( e.x, e.y, ref Item, ref pMap, ref pLayer, ref pOther, ref pIndex );

   　　IMapControl2 pMapControl = (IMapControl2)axMapControl1.Object;
   　　IFeatureLayer pFeatureLayer = pLayer as IFeatureLayer;
   　　FrmAttribute pFemAttribute = new FrmAttribute( pMapControl, pFeatureLayer.Name );
   　　pFemAttribute.ShowDialog();
   }
}

以下是屬性展示窗體的源代碼，其中包括了全屏顯示屬性、datagridview自适應form寬度、在表中點選字段名在主窗體中高亮顯示等功能

namespace GIS3._6
{
    public partial class FrmAttribute : Form
    {
        public FrmAttribute ( )
        {
            InitializeComponent();
        }

        int width = 0;
        public IMapControl2 pMapControl;
        public IMap pMap;
        public int LayerIndex;
        public string LayerName;

        public FrmAttribute ( IMapControl2 pMapControl, string LyrName )
        {
            InitializeComponent();
            this.pMapControl = pMapControl;
            pMap = pMapControl.Map;
            LayerName = LyrName;
        }

        private void FrmAttribute_Load ( object sender, EventArgs e )
        {
            GetValues();
            #region datagridview自适應form
            for (int i = 0 ; i < this.dataGridView1.Columns.Count ; i++)
            {
                //将每一列都調整為自動适應模式
                //this.dataGridView1.AutoResizeColumn( DataGridViewAutoSizeColumnMode.AllCells);
                //記錄整個DataGridView的寬度
                width += this.dataGridView1.Columns[i].Width;
            }
            if (width > this.dataGridView1.Size.Width)
            {
                this.dataGridView1.AutoSizeColumnsMode = DataGridViewAutoSizeColumnsMode.DisplayedCells;
            }
            else
            {
                this.dataGridView1.AutoSizeColumnsMode = DataGridViewAutoSizeColumnsMode.Fill;
            }
            //當機某列 從左開始 0，1，2
            dataGridView1.Columns[1].Frozen = true;
            #endregion
        }
        #region 枚舉
        public enum DataGridViewAutoSizeColumnMode
        {
            NotSet = 0,
            None = 1,
            ColumnHeader = 2,
            AllCellsExceptHeader = 4,
            AllCells = 6,
            DisplayedCellsExceptHeader = 8,
            DisplayedCells = 10,
            Fill = 16,
        }
        #endregion
        public void GetValues ( )
        {
            for (int i = 0 ; i < pMap.LayerCount ; i++)
            {
                if (LayerName == pMap.get_Layer( i ).Name)
                {
                    LayerIndex = i;
                    break;
                }
            }
            IFeatureLayer pFeatureLayer = pMap.get_Layer( LayerIndex ) as IFeatureLayer;
            IFields pFields = pFeatureLayer.FeatureClass.Fields;
            dataGridView1.ColumnCount = pFields.FieldCount;
            for (int i = 0 ; i < pFields.FieldCount ; i++)
            {
                string fieldname;
                fieldname = pFields.get_Field( i ).Name;
                dataGridView1.Columns[i].Name = fieldname;
            }
            IFeatureCursor pFeatureCursor = pFeatureLayer.FeatureClass.Search( null, false );
            IFeature pFeature = pFeatureCursor.NextFeature();
            while (pFeature != null)
            {
                //pFields.FieldCount  總字段數
                string[] fldvalue = new string[pFields.FieldCount];
                for (int i = 0 ; i < pFields.FieldCount ; i++)
                {

                    if (pFields.get_Field( i ).Name == "Shape")
                    {
                        fldvalue[i] = Convert.ToString( pFeature.Shape.GeometryType );
                    }
                    else
                    {
                        fldvalue[i] = Convert.ToString( pFeature.get_Value( i ) );
                    }
                }
                dataGridView1.Rows.Add( fldvalue );
                pFeature = pFeatureCursor.NextFeature();
            }
        }
        private void dataGridView1_CellContentClick ( object sender, DataGridViewCellEventArgs e )
        {

        }
        #region 輕按兩下表内容在螢幕居中展示所選要素
        private void dataGridView1_CellDoubleClick ( object sender, DataGridViewCellEventArgs e )
        {
            string FID;
            FID = dataGridView1.Rows[e.RowIndex].Cells[0].Value.ToString();

            if (FID == "")
                return;
            IActiveView pActiveView;
            pActiveView = (IActiveView)pMap;
            pMap.ClearSelection();
            pActiveView.Refresh();

            IQueryFilter pQueryFilter = new QueryFilterClass();
            pQueryFilter.WhereClause = "FID=" + FID;

            IFeatureLayer pFeatureLayer;
            pFeatureLayer = (IFeatureLayer)pMap.get_Layer( LayerIndex );

            IFeatureCursor pFeatureCursor;
            pFeatureCursor = pFeatureLayer.Search( pQueryFilter, false );

            IFeature pFeature;
            pFeature = pFeatureCursor.NextFeature();

            pMap.SelectFeature( pFeatureLayer, pFeature );

            IPoint pPoint = new PointClass();
            pPoint.X = ( pFeature.Extent.XMin + pFeature.Extent.XMax ) / 2;
            pPoint.Y = ( pFeature.Extent.YMin + pFeature.Extent.YMax ) / 2;

            pMapControl.CenterAt( pPoint );

            pActiveView.PartialRefresh( esriViewDrawPhase.esriViewGeoSelection, null, null );
        }
#endregion
    }
}

　　以下是運作效果，通過滑鼠右鍵TOC中的圖層名直接彈出屬性檢視窗體

　　目前正在寫一個隻顯示指定圖層的指定屬性的功能
