安卓 截屏

安卓截屏

截屏工具和源碼下載下傳

也可掃描二維碼，安裝截屏工具到手機

截屏功能快速接入：

1、在項目中libs中添加ScreenShot.jar

2、在AndroidManifest.xml中添加存儲權限和Activity聲明

 <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
 <activity
 android:name="sc.tool.screenshot.ScreenActivity"
 android:configChanges="orientation|keyboardHidden|screenSize"
 android:theme="@android:style/Theme.Translucent.NoTitleBar.Fullscreen" />

3、調用方法：

(1)、初始化請求允許擷取螢幕 ScreenActivity.Init(context);

(2)、擷取螢幕圖像 ScreenActivity.GetScreen_pic() 或直接儲存截屏 ScreenActivity.GetScreen();

或拓展調用接口：ScreenActivity.GetScreen(final long DellayMillionSecond, final int times)

接入結束

附錄：

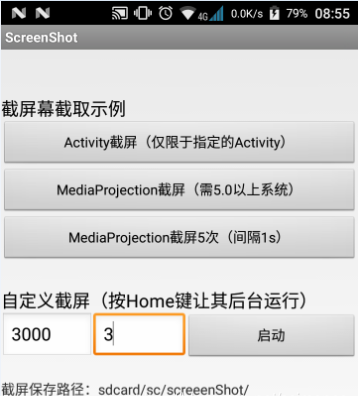

截屏調用示例

package sc.screen.demo;

import sc.tool.screenshot.ScreenActivity;
//import sc.tool.screenshot.ScreenActivity.ScreenCallBack;
import sc.tool.screenshot.ScreenTool;
import android.app.Activity;
import android.os.Bundle;
import android.view.View;
import android.widget.EditText;


public class MainActivity extends Activity
{
	EditText Interval;
	EditText Times;

	@Override
	protected void onCreate(Bundle savedInstanceState)
	{
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_main);
		Interval = (EditText) this.findViewById(R.id.textInterval);
		Times = (EditText) this.findViewById(R.id.textTimes);

		ScreenActivity.Init(this);			// 初始化允許截屏請求

		// // 請求允許擷取螢幕，用允許時截屏儲存
		// ScreenActivity.Init(this, new ScreenCallBack()
		// {
		// 		@Override
		// 		public void Success()
		// 		{
		// 			ScreenActivity.GetScreen(); // 截屏儲存
		// 		}
		// });
	}

	public void ScreeShot(View view)
	{
		ScreenTool.GetScreen(this);			// Activity截屏
	}

	public void ScreeShot_Proj(View view)
	{
		ScreenActivity.GetScreen();			// 投影截屏
	}

	public void ScreeShot_Proj_Auto(View view)
	{
		ScreenActivity.GetScreen(1000, 5);	// 投影截屏（延時多次截屏）
	}

	public void ScreeShot_sustom(View view)
	{
		try
		{
			Long inteval = Long.parseLong(Interval.getText().toString());
			int times = Integer.parseInt(Times.getText().toString());

			ScreenActivity.GetScreen(inteval, times);	// 投影截屏（延時多次截屏）
		}
		catch (Exception ex)
		{}
	}

}

截屏實作核心源碼

package sc.tool.screenshot;

import android.app.Activity;
import android.content.Context;
import android.content.Intent;
import android.graphics.Bitmap;
import android.graphics.PixelFormat;
import android.hardware.display.DisplayManager;
import android.media.Image;
import android.media.ImageReader;
import android.media.projection.MediaProjection;
import android.media.projection.MediaProjectionManager;
import android.os.Bundle;
import android.os.Handler;
import android.os.Looper;
import android.util.DisplayMetrics;
import android.view.WindowManager;
import android.widget.Toast;


/* 請在AndroidManifest.xml中添加存儲權限和Activity聲明
 *
 <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
 <activity
 android:name="sc.tool.screenshot.ScreenActivity"
 android:configChanges="orientation|keyboardHidden|screenSize"
 android:theme="@android:style/Theme.Translucent.NoTitleBar.Fullscreen"
 android:launchMode="singleTop" />

 */

/** 封裝MediaProjectionManager，友善擷取螢幕操作 用法：
 * 1、初始化請求允許擷取螢幕 ScreenActivity.Init(context);
 * 2、擷取螢幕圖像 ScreenActivity.GetScreen_pic() 或 直接儲存截屏 ScreenActivity.GetScreen();
 * 拓展調用接口：ScreenActivity.GetScreen(final long DellayMillionSecond, final int times)
 *
 * 原理：
 * 1、通過MediaProjectionManager請求擷取螢幕投影，在使用者允許時擷取螢幕投影，将螢幕投影到虛拟顯示器（虛拟顯示器建立時與ImageReader綁定）
 * 2、通過ImageReader讀取投影螢幕
 */
public class ScreenActivity extends Activity
{
	private static Context context_S = null;

	/** 截屏初始化（請求使用者允許擷取螢幕） */
	public static void Init(Context context)
	{
		if (isInit) return;
		context_S = context;

		if (context != null)
		{
			Intent intent = new Intent(context, ScreenActivity.class);
			// intent.setAction("intent.action.sc.ScreenShot");
			context.startActivity(intent);
		}
	}

	private static ScreenCallBack call;

	/** 截屏初始化（請求使用者允許擷取螢幕），在允許時執行回調 */
	public static void Init(Context context, ScreenCallBack initCall)
	{
		call = initCall;
		Init(context);
	}

	/** 标記是否初始化成功 */
	private static boolean isInit = false;
	private static MediaProjection Projection;
	private static ImageReader ImageR;

	private MediaProjectionManager PrManager;	// 螢幕投影管理器
	public static final int requestCode_Projection = 6556;

	private int W;
	private int H;
	private int D;

	// 初始載入螢幕尺寸、分辨率資訊
	private void LoadScreenInfo()
	{
		WindowManager mWindowManager = (WindowManager) getSystemService(Context.WINDOW_SERVICE);

		DisplayMetrics metrics = new DisplayMetrics();
		mWindowManager.getDefaultDisplay().getMetrics(metrics);

		D = metrics.densityDpi;
		W = metrics.widthPixels;
		H = metrics.heightPixels;
	}

	@Override
	protected void onCreate(Bundle savedInstanceState)
	{
		super.onCreate(savedInstanceState);
		// setContentView(R.layout.activity_main);

		try
		{
			LoadScreenInfo();

			PrManager = (MediaProjectionManager) getSystemService(Context.MEDIA_PROJECTION_SERVICE);	// 擷取Manager
			startActivityForResult(PrManager.createScreenCaptureIntent(), requestCode_Projection);	// 請求擷取螢幕顯示

			// Toast.makeText(this, "onCreate -> 已執行", Toast.LENGTH_SHORT).show();
		}
		catch (Exception ex)
		{
			ex.printStackTrace();
		}
	}

	@Override
	protected void onActivityResult(int requestCode, int resultCode, Intent data)
	{
		super.onActivityResult(requestCode, resultCode, data);

		if (requestCode == requestCode_Projection)
		{
			// Toast.makeText(this, "onActivityResult -> 已執行0", Toast.LENGTH_SHORT).show();

			if (resultCode == RESULT_OK && data != null)
			{
				Projection = PrManager.getMediaProjection(Activity.RESULT_OK, data);	// 允許擷取螢幕時，擷取投影

				// 根據螢幕尺寸建立ImageReader，用于讀取投影螢幕
				// ImageR = ImageReader.newInstance(W, H, PixelFormat.RGB_888, 1); // 格式若不是PixelFormat.RGB_888，在擷取截屏時會報錯給出類型: The producer output buffer format
				// 0x03
				ImageR = ImageReader.newInstance(W, H, PixelFormat.RGBA_8888, 1);

				// 将螢幕投影到虛拟顯示器（虛拟顯示器建立時與ImageReader綁定）
				Projection.createVirtualDisplay("screen-mirror", W, H, D, DisplayManager.VIRTUAL_DISPLAY_FLAG_AUTO_MIRROR, ImageR.getSurface(), null, null);

				isInit = true;
				if (call != null) call.Success();	// 執行回調邏輯

				// Toast.makeText(this, "onActivityResult -> 已執行1", Toast.LENGTH_SHORT).show();
			}
		}

		// Toast.makeText(this, "onActivityResult -> 已執行2 : " + resultCode, Toast.LENGTH_SHORT).show();

		// Toast.makeText(this, "onActivityResult -> 已執行2", Toast.LENGTH_SHORT).show();
		this.finish();						// 權限請求後關閉目前Activity
	}

	/** 擷取實時顯示的螢幕圖像 */
	public static Bitmap GetScreen_pic()
	{
		Bitmap pic = null;
		if (isInit)
		{
			try
			{
				Image image = ImageR.acquireLatestImage();	// 通過ImageReader從螢幕投影中讀取最新的圖像
				pic = ScreenTool.ToBitmap(image);			// 轉化為Bitmap

				// boolean isNull = (image == null);
				// Toast.makeText(context_S, "startScreenShot -> " + (isNull ? "null" : "非空"), Toast.LENGTH_SHORT).show();

			}
			catch (Exception ex)
			{
				ex.printStackTrace();
				// Toast.makeText(this, "startScreenShot -> \n" + ex.toString(), Toast.LENGTH_SHORT).show();
			}
		}
		// else Init(context_S); // 若未初始化，則自動初始化請求允許擷取螢幕

		return pic;
	}

	/** 擷取實時顯示的螢幕圖像，自動儲存 */
	public static boolean GetScreen()
	{
		Bitmap pic = GetScreen_pic();
		return ScreenTool.SaveScreen(pic);
		// return ScreenTool.SaveScreen(context_S, pic);
	}

	private static int count = 5;

	/** 截屏（延時毫秒、截屏次數） */
	public static void GetScreen(final long DellayMillionSecond, final int times)
	{
		count = times;
		final Handler mainHandler = new Handler(Looper.getMainLooper());
		Runnable r = new Runnable()
		{
			@Override
			public void run()
			{
				if (count > 0)
				{
					// Toast.makeText(context_S, "GetScreen" + count, Toast.LENGTH_SHORT).show();
					count--;
					ScreenActivity.GetScreen();
					mainHandler.postDelayed(this, DellayMillionSecond);
				}
				else mainHandler.removeCallbacks(this);
			}
		};

		if (count > 0) mainHandler.postDelayed(r, DellayMillionSecond);
	}

	/** 螢幕投影請求回調 */
	public static abstract class ScreenCallBack
	{
		/** 螢幕投影請求成功 */
		public abstract void Success();
	}

}

package sc.tool.screenshot;

import java.io.DataInputStream;
import java.io.File;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.InputStream;
import java.nio.ByteBuffer;
import java.text.DateFormat;
import java.text.SimpleDateFormat;
import java.util.Date;

import android.app.Activity;
import android.app.ActivityManager;
import android.content.ComponentName;
import android.content.Context;
import android.graphics.Bitmap;
import android.graphics.Canvas;
import android.graphics.Picture;
import android.graphics.PixelFormat;
import android.graphics.Rect;
import android.media.Image;
import android.os.Environment;
import android.os.Handler;
import android.os.Looper;
import android.util.DisplayMetrics;
import android.util.Log;
import android.view.Display;
import android.view.View;
import android.view.WindowManager;
import android.webkit.WebView;
import android.widget.Toast;


public class ScreenTool
{
	// new Handler(Looper.getMainLooper()).postDelayed(r, 5000);

	/** Activity截取螢幕并自動儲存 */
	public static boolean GetScreen(Activity activity)
	{
		Bitmap pic = GetScreen_Pic(activity);
		String picPath = GetDir() + NewName();

		boolean result = SavePic(pic, picPath);
		Toast.makeText(activity, "截屏已儲存" + "\n" + picPath, Toast.LENGTH_SHORT).show();

		return result;
	}

	/** 基于Activity的截屏（無需申請權限或root,僅能截取到目前Activity界面） */
	private static Bitmap GetScreen_Pic(Activity activity)
	{
		View decorView = activity.getWindow().getDecorView();    	// 擷取目前activity所在的最頂層的view--DecorView
		// int statusBarHeight = GetStatusBarHeight(activity);
		decorView.setDrawingCacheEnabled(true);         			// 啟用繪圖緩存
		decorView.buildDrawingCache();                  			// 強制建構繪圖緩存（防止上面啟用繪圖緩存的操作失敗）
		Bitmap bitmap = decorView.getDrawingCache();     			// 擷取繪圖緩存中的 bitmap
		bitmap = Bitmap.createBitmap(bitmap, 0, 0, bitmap.getWidth(), bitmap.getHeight());	// 建立副本作為傳回對象

		// // 裁切圖像，去除狀态欄
		// int newBmpHeight = bitmap.getHeight() - statusBarHeight; // 最終截取的圖檔的高度（取出狀态欄之後的高度）
		// bitmap = Bitmap.createBitmap(bitmap, 0, statusBarHeight, bitmap.getWidth(), newBmpHeight);
		// decorView.setDrawingCacheEnabled(false); // createBitmap完成之後一定要置為false，否則短時間内多次截圖時内容不會變化！

		return bitmap;
	}

	/** 擷取Activity狀态欄高度 */
	private static int GetStatusBarHeight(Activity activity)
	{
		View decorView = activity.getWindow().getDecorView();	// 擷取目前activity所在的最頂層的view--DecorView
		Rect rect = new Rect();
		decorView.getWindowVisibleDisplayFrame(rect);
		return rect.top;
	}

	/** 擷取圖像儲存路徑 */
	private static String GetDir()
	{
		String path = "sc/screeenShot/";
		if (Environment.getExternalStorageState().equals(Environment.MEDIA_MOUNTED))	// 如果SD儲存設備可用
		{
			path = Environment.getExternalStorageDirectory().getPath() + File.separator + path;
			File dir = new File(path);
			if (!dir.exists()) dir.mkdirs();   // 建立目錄
		}
		return path;
	}

	private static int count = 0;
	private static String preTime = "";

	/** 擷取圖像名稱 */
	private static String NewName()
	{
		DateFormat formatter = new SimpleDateFormat("yyyy-MM-dd");
		String date = formatter.format(new Date());

		DateFormat formatter2 = new SimpleDateFormat("HH.mm.ss");
		String time = formatter2.format(new Date());

		if (!preTime.equals(time))
		{
			count = 1;
			preTime = time;
		}
		else count++;

		String fileName = date + "_" + time + "_" + count + ".png";
		return fileName;
	}

	/** 儲存 bitmap到指定的檔案路徑 */
	private static boolean SavePic(Bitmap bitmap, String picPath)
	{
		boolean saveSuccess = false;
		if (bitmap != null)
		{
			try
			{
				File file = new File(picPath);

				File dir = file.getParentFile();
				if (!dir.exists()) dir.mkdirs();   			// 建立目錄
				if (!file.exists()) file.createNewFile();	// 建立新的檔案

				FileOutputStream fos = new FileOutputStream(file);
				saveSuccess = bitmap.compress(Bitmap.CompressFormat.PNG, 100, fos);	// 根據指定的格式、品質、輸出流 将bitmap儲存到本地，并傳回是否儲存成功
				fos.flush();
				fos.close();    // 關閉流防止溢出
			}
			catch (Exception ex)
			{
				ex.printStackTrace();
			}
		}
		return saveSuccess;
	}

	/** 儲存 bitmap，自動生成圖像名稱 */
	public static boolean SaveScreen(final Context context, Bitmap pic)
	{
		if (pic == null) return false;

		final String picPath = GetDir() + NewName();
		boolean result = SavePic(pic, picPath);

		// 顯示提示資訊
		Runnable r = new Runnable()
		{
			@Override
			public void run()
			{
				Toast.makeText(context, "截屏已儲存" + "\n" + picPath, Toast.LENGTH_SHORT).show();
			}
		};
		new Handler(Looper.getMainLooper()).post(r);

		return result;
	}

	/** 儲存 bitmap，自動生成圖像名稱 */
	public static boolean SaveScreen(Bitmap pic)
	{
		if (pic == null) return false;

		String picPath = GetDir() + NewName();
		boolean result = SavePic(pic, picPath);
		// Toast.makeText(activity, "截屏已儲存" + "\n" + picPath, Toast.LENGTH_SHORT).show();

		return result;
	}

	/** Image轉化為Bitmap */
	public static Bitmap ToBitmap(Image image)
	{
		int width = image.getWidth();
		int height = image.getHeight();

		final Image.Plane[] planes = image.getPlanes();
		final ByteBuffer buffer = planes[0].getBuffer();
		int pixelStride = planes[0].getPixelStride();
		int rowStride = planes[0].getRowStride();
		int rowPadding = rowStride - pixelStride * width;
		Bitmap bitmap = Bitmap.createBitmap(width + rowPadding / pixelStride, height, Bitmap.Config.ARGB_8888);
		bitmap.copyPixelsFromBuffer(buffer);

		bitmap = Bitmap.createBitmap(bitmap, 0, 0, width, height);
		image.close();

		return bitmap;
	}

	// ----------

	/** 系統指令截屏，需要root權限 */
	public Bitmap captureScreenSystem(Activity activity)
	{
		// 擷取螢幕大小：
		DisplayMetrics metrics = new DisplayMetrics();
		WindowManager WM = (WindowManager) activity.getSystemService(Context.WINDOW_SERVICE);
		Display display = WM.getDefaultDisplay();
		display.getMetrics(metrics);
		int height = metrics.heightPixels; 	// 螢幕高
		int width = metrics.widthPixels; 	// 螢幕的寬

		// 擷取顯示方式
		int pixelformat = display.getPixelFormat();
		PixelFormat localPixelFormat1 = new PixelFormat();
		PixelFormat.getPixelFormatInfo(pixelformat, localPixelFormat1);
		int deepth = localPixelFormat1.bytesPerPixel;		// 位深
		byte[] piex = new byte[height * width * deepth];
		try
		{
			Runtime.getRuntime().exec(new String[] { "/system/bin/su", "-c", "chmod 777 /dev/graphics/fb0" });
		}
		catch (IOException e)
		{
			e.printStackTrace();
		}
		try
		{
			// 擷取fb0資料輸入流
			InputStream stream = new FileInputStream(new File("/dev/graphics/fb0"));
			DataInputStream dStream = new DataInputStream(stream);
			dStream.readFully(piex);
		}
		catch (Exception e)
		{
			e.printStackTrace();
		}

		// 儲存圖檔
		int[] colors = new int[height * width];
		for (int m = 0; m < colors.length; m++)
		{
			int r = (piex[m * 4] & 0xFF);
			int g = (piex[m * 4 + 1] & 0xFF);
			int b = (piex[m * 4 + 2] & 0xFF);
			int a = (piex[m * 4 + 3] & 0xFF);
			colors[m] = (a << 24) + (r << 16) + (g << 8) + b;

		}

		// piex生成Bitmap
		Bitmap bitmap = Bitmap.createBitmap(colors, width, height, Bitmap.Config.ARGB_8888);
		return bitmap;
	}

	// ----------

	/** 對WebView進行截圖 */
	public static Bitmap captureWebView1(WebView webView)
	{
		Picture snapShot = webView.capturePicture();
		Bitmap bmp = Bitmap.createBitmap(snapShot.getWidth(), snapShot.getHeight(), Bitmap.Config.ARGB_8888);
		Canvas canvas = new Canvas(bmp);
		snapShot.draw(canvas);
		return bmp;
	}

	// 判斷目前界面顯示的是哪個Activity
	public static String getTopActivity(Context context)
	{
		ActivityManager am = (ActivityManager) context.getSystemService(context.ACTIVITY_SERVICE);
		ComponentName cn = am.getRunningTasks(1).get(0).topActivity;
		Log.d("Chunna.zheng", "pkg:" + cn.getPackageName());// 包名
		Log.d("Chunna.zheng", "cls:" + cn.getClassName());// 包名加類名
		return cn.getClassName();
	}

}

安卓錄屏

安卓截屏

截屏功能快速接入：

附錄：

繼續閱讀

專訪鄧凡平：深入了解Android

與專家面對面：Android開發入門問與答

Android MVP架構MVCMVP

mvp初探

Android常用工具類簡介目錄

android常用工具類轉載自：http://www.trinea.cn/android/android-common-utils/Android常用工具類

Android常用工具類ToastUtilsSizeUtilsLogUtilsRetrofitManagerAnimUtil

Android Studio 0.8.0解決 Failure [INSTALL_FAILED_OLDER_SDK] 問題

Android – ListView 中添加按鈕，動态删除添加ItemView的操作

Kotlin的ListView與RecyclerView的簡單應用

關于公司的那些坑：Android Studio篇

android SQLite事務和kotlin協程

無法正常編譯錯誤Compilation failed to complete

關于Gradle配置的小結

AOP程式設計_Android優雅權限架構(1)概念基礎，2021金三銀四前言正文大綱正文

Android APK檔案反編譯Android APK檔案反編譯

安卓 截屏

截屏功能快速接入：

附錄：

繼續閱讀

安卓截屏
