View的生命周期和Activity生命周期的執行順序

前言

了解了View的生命周期和Activity的生命周期能夠讓我們更好的了解View的工作原理。

代碼

我們先寫一個自定義View，然後列印出它的生命周期方法

public class MyTextView extends TextView {
    private static final String TAG = "MyTextView";
    public MyTextView(Context context) {
        super(context);
    }

    public MyTextView(Context context, @Nullable AttributeSet attrs) {
        super(context, attrs);
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        Log.d(TAG, "onMeasure: ");
        super.onMeasure(widthMeasureSpec, heightMeasureSpec);
    }

    @Override
    protected void onDraw(Canvas canvas) {
        Log.d(TAG, "onDraw: ");
        super.onDraw(canvas);
    }

    @Override
    protected void onLayout(boolean changed, int left, int top, int right, int bottom) {
        Log.d(TAG, "onLayout: ");
        super.onLayout(changed, left, top, right, bottom);
    }

    @Override
    protected void onAttachedToWindow() {
        super.onAttachedToWindow();
        Log.d(TAG, "onAttachedToWindow: ");
    }

    @Override
    protected void onSizeChanged(int w, int h, int oldw, int oldh) {
        super.onSizeChanged(w, h, oldw, oldh);
        Log.d(TAG, "onSizeChanged: ");
    }
}

然後在Activity的布局中引用這個View,然後我們在Activity中列印出生命周期方法

public class MainActivity extends Activity {
    private static final String TAG = "MyTextView";
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);
        Log.d(TAG, "onCreate: ");
    }

    @Override
    protected void onStart() {
        Log.d(TAG, "onStart: ");
        super.onStart();
    }

    @Override
    protected void onResume() {
        Log.d(TAG, "onResume: ");
        super.onResume();
    }

    @Override
    public void onWindowFocusChanged(boolean hasFocus) {
        Log.d(TAG, "onWindowFocusChanged: ");
        super.onWindowFocusChanged(hasFocus);
    }
}

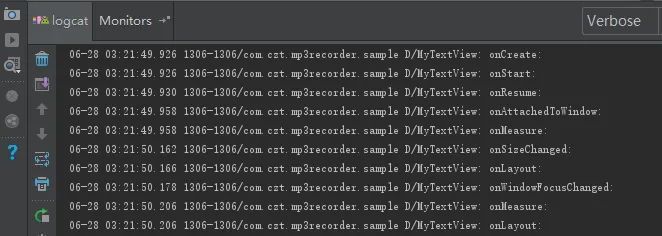

最終結果如下

下面在記錄一下觸摸事件産生的過程。

觸摸事件被系統處理後，會傳到ViewRootImpl中進行進一步處理，

final class WindowInputEventReceiver extends InputEventReceiver {
        public WindowInputEventReceiver(InputChannel inputChannel, Looper looper) {
            super(inputChannel, looper);
        }
        //接受事件
        @Override
        public void onInputEvent(InputEvent event) {
            enqueueInputEvent(event, this, 0, true);
        }

        @Override
        public void onBatchedInputEventPending() {
            if (mUnbufferedInputDispatch) {
                super.onBatchedInputEventPending();
            } else {
                scheduleConsumeBatchedInput();
            }
        }

        @Override
        public void dispose() {
            unscheduleConsumeBatchedInput();
            super.dispose();
        }
    }

void enqueueInputEvent(InputEvent event,
            InputEventReceiver receiver, int flags, boolean processImmediately) {
        QueuedInputEvent q = obtainQueuedInputEvent(event, receiver, flags);

        // Always enqueue the input event in order, regardless of its time stamp.
        // We do this because the application or the IME may inject key events
        // in response to touch events and we want to ensure that the injected keys
        // are processed in the order they were received and we cannot trust that2        // the time stamp of injected events are monotonic.
        QueuedInputEvent last = mPendingInputEventTail;
        if (last == null) {
            mPendingInputEventHead = q;
            mPendingInputEventTail = q;
        } else {
            last.mNext = q;
            mPendingInputEventTail = q;
        }
        mPendingInputEventCount += 1;
        Trace.traceCounter(Trace.TRACE_TAG_INPUT, mPendingInputEventQueueLengthCounterName,
                mPendingInputEventCount);

        if (processImmediately) {
            doProcessInputEvents();
        } else {
            scheduleProcessInputEvents();
        }
    }

void doProcessInputEvents() {
        // Deliver all pending input events in the queue.
        while (mPendingInputEventHead != null) {
            QueuedInputEvent q = mPendingInputEventHead;
            mPendingInputEventHead = q.mNext;
            if (mPendingInputEventHead == null) {
                mPendingInputEventTail = null;
            }
            q.mNext = null;

            mPendingInputEventCount -= 1;
            Trace.traceCounter(Trace.TRACE_TAG_INPUT, mPendingInputEventQueueLengthCounterName,
                    mPendingInputEventCount);

            deliverInputEvent(q);
        }

        // We are done processing all input events that we can process right now
        // so we can clear the pending flag immediately.
        if (mProcessInputEventsScheduled) {
            mProcessInputEventsScheduled = false;
            mHandler.removeMessages(MSG_PROCESS_INPUT_EVENTS);
        }
    }

private void deliverInputEvent(QueuedInputEvent q) {
5687        Trace.asyncTraceBegin(Trace.TRACE_TAG_VIEW, "deliverInputEvent",
                q.mEvent.getSequenceNumber());
        if (mInputEventConsistencyVerifier != null) {
            mInputEventConsistencyVerifier.onInputEvent(q.mEvent, 0);
        }

        InputStage stage;
        if (q.shouldSendToSynthesizer()) {
            stage = mSyntheticInputStage;
        } else {
            stage = q.shouldSkipIme() ? mFirstPostImeInputStage : mFirstInputStage;
        }

        if (stage != null) {
            stage.deliver(q);
        } else {
           finishInputEvent(q);
        }
    }

接下來我們看看InputStage

在ViewRootImpl的setView方法中，進行了InputStage的初始化

mSyntheticInputStage = new SyntheticInputStage();
                InputStage viewPostImeStage = new ViewPostImeInputStage(mSyntheticInputStage);
                InputStage nativePostImeStage = new NativePostImeInputStage(viewPostImeStage,
                        "aq:native-post-ime:" + counterSuffix);
                InputStage earlyPostImeStage = new EarlyPostImeInputStage(nativePostImeStage);
                InputStage imeStage = new ImeInputStage(earlyPostImeStage,
                        "aq:ime:" + counterSuffix);
                InputStage viewPreImeStage = new ViewPreImeInputStage(imeStage);
                InputStage nativePreImeStage = new NativePreImeInputStage(viewPreImeStage,
                        "aq:native-pre-ime:" + counterSuffix);

final class ViewPostImeInputStage extends InputStage {
        public ViewPostImeInputStage(InputStage next) {
            super(next);
        }

        @Override
        protected int onProcess(QueuedInputEvent q) {
            if (q.mEvent instanceof KeyEvent) {
                return processKeyEvent(q);
            } else {
                // If delivering a new non-key event, make sure the window is
                // now allowed to start updating.
                handleDispatchDoneAnimating();
                final int source = q.mEvent.getSource();
                if ((source & InputDevice.SOURCE_CLASS_POINTER) != 0) {
                    return processPointerEvent(q);
                } else if ((source & InputDevice.SOURCE_CLASS_TRACKBALL) != 0) {
                    return processTrackballEvent(q);
                } else {
                    return processGenericMotionEvent(q);
                }
            }
        }

我們看看processPointerEvent這個方法。

private int processPointerEvent(QueuedInputEvent q) {
            final MotionEvent event = (MotionEvent)q.mEvent;

            mAttachInfo.mUnbufferedDispatchRequested = false;
            boolean handled = mView.dispatchPointerEvent(event);
            if (mAttachInfo.mUnbufferedDispatchRequested && !mUnbufferedInputDispatch) {
                mUnbufferedInputDispatch = true;
                if (mConsumeBatchedInputScheduled) {
                    scheduleConsumeBatchedInputImmediately();
                }
            }
            return handled ? FINISH_HANDLED : FORWARD;
        }

這裡調用了mView.dispatchPointerEvent這個方法。

mView是DecorView，我們并沒有在DecorView裡發現這個方法，于是我們在View中去找。

public final boolean dispatchPointerEvent(MotionEvent event) {
        if (event.isTouchEvent()) {
            return dispatchTouchEvent(event);
        } else {
            return dispatchGenericMotionEvent(event);
        }
    }

接下來調用了DecorView的dispatchTouchEvent方法，

@Override
        public boolean dispatchTouchEvent(MotionEvent ev) {
            final Callback cb = getCallback();
            return cb != null && !isDestroyed() && mFeatureId < 0 ? cb.dispatchTouchEvent(ev)
                    : super.dispatchTouchEvent(ev);
        }

這裡我們看cb.dispathTouchEvent這個方法,cb是Window.Callback對象，而Activity實作了這個接口，是以調用了Activity中的

public boolean dispatchTouchEvent(MotionEvent ev) {
        if (ev.getAction() == MotionEvent.ACTION_DOWN) {
            onUserInteraction();
        }
        if (getWindow().superDispatchTouchEvent(ev)) {
            return true;
        }
        return onTouchEvent(ev);
    }

又把事件傳到了Window中，我們知道這個Window是PhoneWindow,

@Override
public boolean superDispatchTouchEvent(MotionEvent event) {
        return mDecor.superDispatchTouchEvent(event);
    }

public boolean superDispatchTouchEvent(MotionEvent event) {
            return super.dispatchTouchEvent(event);
        }
