Spring Security初識

前段時間學習了Spring Security，最近重學一次，同時整理一套筆記，友善後面遇錯處理。

跟着慕課網視訊學習的，加了點自己的思路以及解決方式，不喜勿噴。

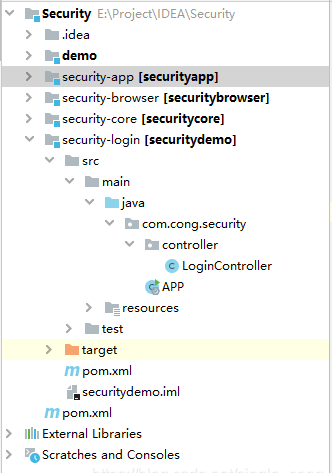

項目依賴：

Spring Security初識

security-core

安全配置核心
security-app

APP安全配置
security-browser

浏覽器安全配置核心
security-login

登入注冊子產品
demo

項目提供API接口

依賴關系：

Spring Security初識
因為我一直開發的都是APP模式的，同時APP模式支援浏覽器，是以此後筆記重點可能在于APP方向的開發。

依賴添加

父工程pom.xml：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.cong.security</groupId>
    <artifactId>Security</artifactId>
    <packaging>pom</packaging>
    <version>1.0-SNAPSHOT</version>

    <!--此處配置全局調用,友善版本更新-->
    <properties>
        <skipTests>true</skipTests>
        <java.version>1.8</java.version>
        <!-- 編碼 -->
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <security.version>1.0-SNAPSHOT</security.version>
        <commons-beanutils.version>1.9.3</commons-beanutils.version>
        <commons-collections.version>3.2.2</commons-collections.version>
        <!-- 第三方登入 -->
        <spring-social.version>1.1.6.RELEASE</spring-social.version>
        <!-- spring-session-->
        <spring-session.version>1.3.5.RELEASE</spring-session.version>
        <!-- 可視化頁面 -->
        <springfox-swagger.version>2.9.2</springfox-swagger.version>
        <wiremock.version>2.18.0</wiremock.version>
        <!-- 檔案 -->
        <commons-io.version>2.6</commons-io.version>
        <!-- 解決項目打包時jackson-bom找不到問題 -->
        <jackson-bom.version>2.9.9</jackson-bom.version>
        <!-- JWT加密 -->
        <jjwt.version>0.9.0</jjwt.version>
        <!-- MySQL連接配接驅動 -->
        <mysql-connector-java.version>5.1.24</mysql-connector-java.version>
        <!-- Mybatis -->
        <mybatis-spring-boot-starter.version>2.0.0</mybatis-spring-boot-starter.version>
        <!-- MyBatis-generator插件 -->
        <mybatis-generator-core.version>1.3.5</mybatis-generator-core.version>
        <!-- 分頁插件 -->
        <pagehelper-spring-boot-starter.version>1.2.10</pagehelper-spring-boot-starter.version>
        <!-- 分頁插件版本 -->
        <!-- <pagehelper.version>5.1.10</pagehelper.version> -->
        <fastjson.version>1.2.58</fastjson.version>
    </properties>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.6.RELEASE</version>
        <relativePath/>
    </parent>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Greenwich.SR3</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <!-- 編譯版本 -->
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-resources-plugin</artifactId>
                <configuration>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
        </plugins>
    </build>

    <modules>
        <module>security-core</module>
        <module>security-app</module>
        <module>security-browser</module>
        <module>security-login</module>
        <module>demo</module>
    </modules>
</project>

加的有點多，但是後面基本上都會遇到。

後面筆記版本更新到2.2.2.RELEASE

core.pom依賴：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>Security</artifactId>
        <groupId>com.cong.security</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>security-core</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <!-- oauth2.0認證架構-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-oauth2</artifactId>
        </dependency>
        <!-- 緩存、短信過期、三方登入認證過期等-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <!--使用lettuce作為連接配接池，需要引入commons-pool2包,否則會報錯bean注入失敗-->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-pool2</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-cache</artifactId>
        </dependency>
        <!--資料庫連接配接-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <!-- 第三方登陸 -->
        <dependency>
            <groupId>org.springframework.social</groupId>
            <artifactId>spring-social-config</artifactId>
            <version>${spring-social.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.social</groupId>
            <artifactId>spring-social-core</artifactId>
            <version>${spring-social.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.social</groupId>
            <artifactId>spring-social-security</artifactId>
            <version>${spring-social.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.social</groupId>
            <artifactId>spring-social-web</artifactId>
            <version>${spring-social.version}</version>
        </dependency>
        <!--資料庫連接配接驅動-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>

        <!-- 工具包 -->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>com.fasterxml.jackson</groupId>
                    <artifactId>jackson-bom</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson</groupId>
            <artifactId>jackson-bom</artifactId>
            <version>${jackson-bom.version}</version>
            <type>pom</type>
        </dependency>
        <dependency>
            <groupId>commons-collections</groupId>
            <artifactId>commons-collections</artifactId>
            <version>${commons-collections.version}</version>
        </dependency>
        <dependency>
            <groupId>commons-beanutils</groupId>
            <artifactId>commons-beanutils</artifactId>
            <version>${commons-beanutils.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-configuration-processor</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>${fastjson.version}</version>
        </dependency>
        <dependency>
            <groupId>io.undertow</groupId>
            <artifactId>undertow-servlet</artifactId>
        </dependency>
        <dependency>
            <groupId>javax.validation</groupId>
            <artifactId>validation-api</artifactId>
            <version>2.0.1.Final</version>
        </dependency>
    </dependencies>
</project>

browser和app依賴core子產品：

<dependencies>
    <dependency>
        <groupId>com.cong.security</groupId>
        <artifactId>security-core</artifactId>
        <version>${security.version}</version>
    </dependency>
</dependencies>

login子產品pom.xml：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>Security</artifactId>
        <groupId>com.cong.security</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <packaging>jar</packaging>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>security-demo</artifactId>

    <dependencies>
        <!--浏覽器安全子產品-->
        <dependency>
            <groupId>com.cong.security</groupId>
            <artifactId>security-browser</artifactId>
            <version>${security.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-aop</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>1.3.3.RELEASE</version>
                <executions>
                    <execution>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
        <finalName>login</finalName>
    </build>
</project>

demo子產品放着不用，最後的最後才用到。

代碼

啟動類：

package com.cong.security;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.EnableAutoConfiguration;
import org.springframework.context.annotation.ComponentScan;

/**
 * 項目啟動類
 *
 * @Author single-聰
 * @Date 2020/1/6 15:08
 * @Version 1.0.1
 **/
@EnableAutoConfiguration
@ComponentScan("com.cong.security")
public class APP {

    public static void main(String[] args) {
        SpringApplication.run(APP.class, args);
    }
}

提供一個借口供外通路

package com.cong.security.controller;

import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @Description TODO
 * @Author single-聰
 * @Date 2020/1/6 15:11
 * @Version 1.0.1
 **/
@RestController
@RequestMapping("login")
public class LoginController {

    /**
     * @Description 測試接口
     * @Param []
     * @Author single-聰
     * @Date 15:12 2020/1/6
     * @Version 1.0.1
     * @return java.lang.String
     **/
    @RequestMapping("hello")
    public String hello() {
        return "login/hello";
    }
}

二級，友善借口快速查找

application-dev.yml：

spring:
  datasource:
    url: jdbc:mysql://localhost:3306/security?generateSimpleParameterMetadata=true&characterEncoding=utf8&useSSL=true&serverTimezone=Asia/Shanghai&allowMultiQueries=true
    driver-class-name: com.mysql.jdbc.Driver
    username: root
    password: 123456
    hikari:
      connection-timeout: 30000
  redis:
    port: 6379
    lettuce:
      pool:
        max-active: 500
        max-wait: 50000
        max-idle: 500
        min-idle: 0
    timeout: 50000
    host: 101.133.174.111
    password: cong
  session:
    store-type: none
  security:
    user:
      name: name
      password: pwd
# 日志
logging:
  config: classpath:logback-dev.xml

##配置端口
server:
  port: 8001

資料庫，緩存，日志，端口。security.user.name配置是因為Spring Security更新到5.0之後，

security.basic.enabled=false

配置失效，在啟動類

exclude

也沒用，是以我才加的這個配置。

啟動項目，浏覽器輸入通路位址

localhost:8001/login/hello

會自動跳轉至一下界面：

Spring Security初識

輸入yml配置檔案中配置的使用者名密碼即可跳轉到/login/hello接口

Spring Security初識

到這裡安全架構已經配置上（未登入不能通路接口）。
