問題描述
在前兩篇博文中，對NodeJS Express應用 使用MSAL + AAD實作使用者登入并擷取使用者資訊，擷取Authorization資訊 ( ID Token, Access Token).
- 【Azure 應用服務】NodeJS Express + MSAL 應用實作AAD內建登入并部署在App Service Linux環境中的實作步驟
- 【Azure 應用服務】NodeJS Express + MSAL 應用實作AAD登入并擷取AccessToken -- cca.acquireTokenByCode(tokenRequest)
而在目前這篇博文中，我們将會實作以下目的：
1）為NodeJS API應用配置Bearer Token驗證元件 passport 和 passport-azure-ad
2）實作使用idToken驗證并通路API
實作步驟
在完成Azure AD中的注冊應用配置後，并且根據博文“ NodeJS Express + MSAL 應用實作AAD登入并擷取AccessToken -- cca.acquireTokenByCode(tokenRequest): https://www.cnblogs.com/lulight/p/16357246.html” 完成使用者登入的前端應用，
參考官方示例 “Enable authentication in your own Node.js web API by using Azure Active Directory B2C ： https://docs.microsoft.com/en-us/azure/active-directory-b2c/enable-authentication-in-node-web-app-with-api” 準備API端的代碼。
第一步：下載下傳示例代碼
git clone https://github.com/Azure-Samples/active-directory-b2c-javascript-nodejs-webapi.git Install app dependencies
cd active-directory-b2c-javascript-nodejs-webapi
npm install
npm update 下載下傳後的檔案結構為：
第二步：修改config.json 檔案和index.js中的 identityMetadata 值
options中即為 BearerStrategy的配置參數，因為目前不适用AAD B2C，而是直接使用AAD，是以isB2C就需要設定為false，
const options = {
identityMetadata: 'https://login.partner.microsoftonline.cn/xxxxxxxx-66d7-xxxx-8f9f-xxxxxxxxxxxx/v2.0/.well-known/openid-configuration',
clientID: ##clientID,
audience: ##clientID,
validateIssuer: true,
loggingLevel: 'info',
passReqToCallback: false
} 因為參考文檔中使用的試AAD B2C來認證Token，而本示例中使用的是AAD來認證Token，是以很多參數配置有一點差别。
本次實驗中使用的參數說明如下：
-
identityMetadata
-
clientID
- audience（可選）：為一個字元串或者字元串數組，預設值為注冊應用的Client ID
- validateIssuer（可選）：如果不需要驗證Issuer這個參數，需要設定為false。預設值為true。當使用AAD的Openid-configuration資訊，它會通過identitymetadata中擷取 issuer資訊
- loggingLevel（可選）：AAD Validation 的日志輸出級别，有info，error，warn可供設定
- passReqToCallback（可選）：預設值為false，使用者當請求的第一個參數中提供了驗證函數時，需要設定為true
關于BearerStrategy參數更多詳細說明請參考連結：https://github.com/AzureAD/passport-azure-ad#42-bearerstrategy
第三步：通路API接口（/hello 需要Authorization， /public 不需要Authorization)
在index.js代碼中，實作了兩個接口 /hello 和 /public。 /hello 接口添加了passport.authenticate認證，通路需要攜帶Authorization （JWT Token），而/public則無需認證。
//<ms_docref_protected_api_endpoint>
// API endpoint, one must present a bearer accessToken to access this endpoint
app.get('/hello',
passport.authenticate('oauth-bearer', {session: false}),
(req, res) => {
console.log(req.headers.authorization);
console.log('Validated claims: ', req.authInfo);
// Service relies on the name claim.
res.status(200).json({'name': req.authInfo['name']});
}
);
//</ms_docref_protected_api_endpoint>
//<ms_docref_anonymous_api_endpoint>
// API anonymous endpoint, returns a date to the caller.
app.get('/public', (req, res) => res.send( {'date': new Date() } ));

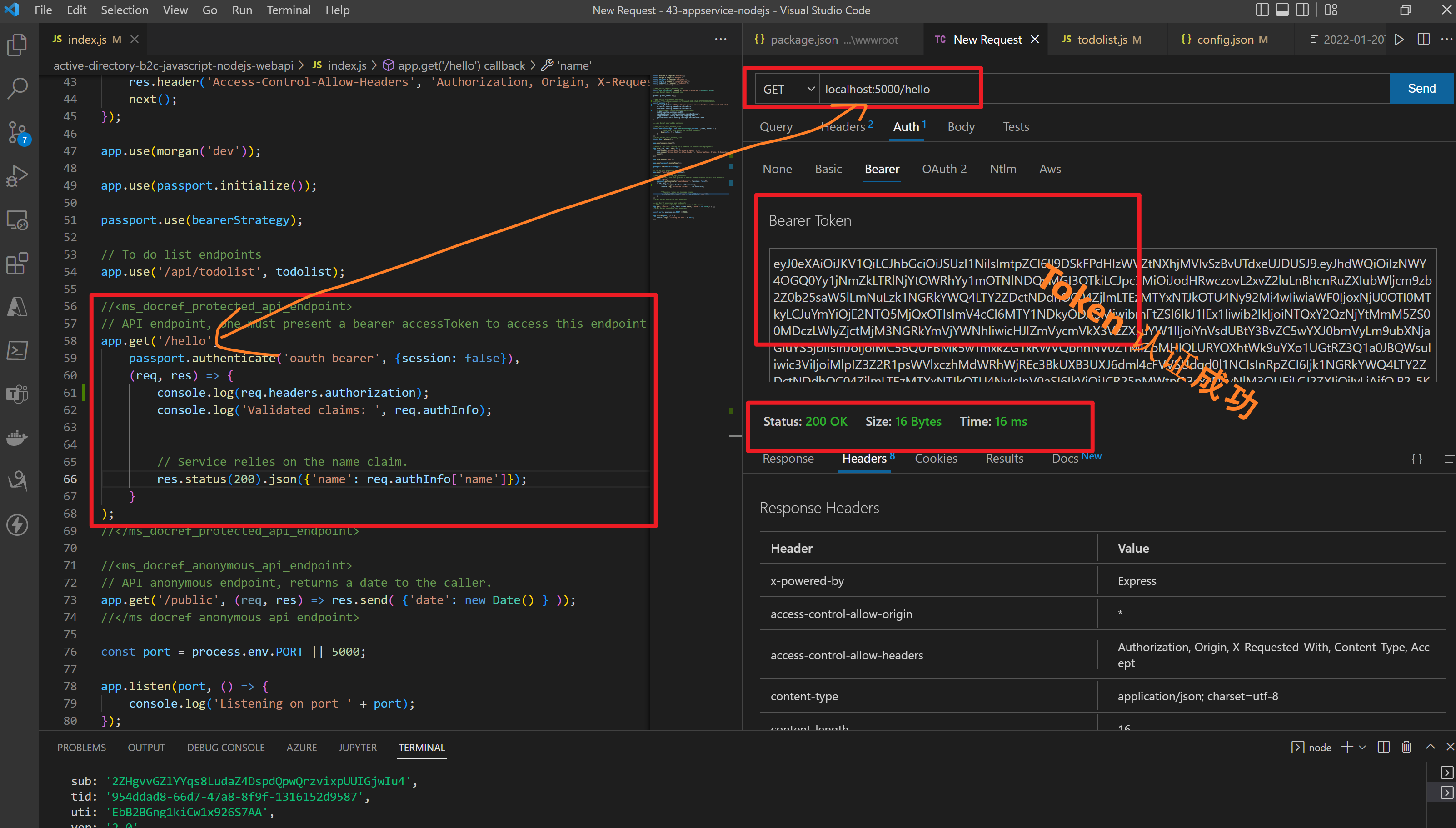

//</ms_docref_anonymous_api_endpoint> 驗證效果：
第四步：驗證 idToken 和 accessToken
在前端UI頁面通過登入後擷取到Token資訊， http://localhost:3000/auth
驗證展示動畫：
使用accessTokne的錯誤日志
{"name":"AzureAD: Bearer Strategy","hostname":"MININT-S4MGVOU","pid":17316,"level":30,"msg":"In Strategy.prototype.authenticate: received metadata","time":"2022-06-11T06:15:43.024Z","v":0}
{"name":"AzureAD: Bearer Strategy","hostname":"MININT-S4MGVOU","pid":17316,"level":30,"msg":"In Strategy.prototype.authenticate: we will validate the options","time":"2022-06-11T06:15:43.025Z","v":0}
{"name":"AzureAD: Bearer Strategy","hostname":"MININT-S4MGVOU","pid":17316,"level":30,"msg":"In Strategy.prototype.authenticate: access_token is received from request header","time":"2022-06-11T06:15:43.025Z","v":0}
{"name":"AzureAD: Bearer Strategy","hostname":"MININT-S4MGVOU","pid":17316,"level":30,"msg":"In Strategy.prototype.jwtVerify: token is decoded","time":"2022-06-11T06:15:43.027Z","v":0}
{"name":"AzureAD: Metadata Parser","hostname":"MININT-S4MGVOU","pid":17316,"level":30,"msg":"working on key","time":"2022-06-11T06:15:43.028Z","v":0}
{"name":"AzureAD: Bearer Strategy","hostname":"MININT-S4MGVOU","pid":17316,"level":30,"msg":"PEMkey generated","time":"2022-06-11T06:15:43.033Z","v":0}
{"name":"AzureAD: Bearer Strategy","hostname":"MININT-S4MGVOU","pid":17316,"level":30,"msg":"authentication failed due to: In Strategy.prototype.jwtVerify: cannot verify token","time":"2022-06-11T06:15:43.036Z","v":0}
GET /hello 401 1.556 ms - -
使用idToken的正确日志
{"name":"AzureAD: Bearer Strategy","hostname":"MININT-S4MGVOU","pid":17316,"level":30,"msg":"In Strategy.prototype.authenticate: received metadata","time":"2022-06-11T06:16:25.102Z","v":0}
{"name":"AzureAD: Bearer Strategy","hostname":"MININT-S4MGVOU","pid":17316,"level":30,"msg":"In Strategy.prototype.authenticate: we will validate the options","time":"2022-06-11T06:16:25.102Z","v":0}
{"name":"AzureAD: Bearer Strategy","hostname":"MININT-S4MGVOU","pid":17316,"level":30,"msg":"In Strategy.prototype.authenticate: access_token is received from request header","time":"2022-06-11T06:16:25.103Z","v":0}
{"name":"AzureAD: Bearer Strategy","hostname":"MININT-S4MGVOU","pid":17316,"level":30,"msg":"In Strategy.prototype.jwtVerify: token is decoded","time":"2022-06-11T06:16:25.104Z","v":0}
{"name":"AzureAD: Metadata Parser","hostname":"MININT-S4MGVOU","pid":17316,"level":30,"msg":"working on key","time":"2022-06-11T06:16:25.104Z","v":0}
{"name":"AzureAD: Bearer Strategy","hostname":"MININT-S4MGVOU","pid":17316,"level":30,"msg":"PEMkey generated","time":"2022-06-11T06:16:25.105Z","v":0}
{"name":"AzureAD: Bearer Strategy","hostname":"MININT-S4MGVOU","pid":17316,"level":30,"msg":"In Strategy.prototype.jwtVerify: token is verified","time":"2022-06-11T06:16:25.107Z","v":0}
{"name":"AzureAD: Bearer Strategy","hostname":"MININT-S4MGVOU","pid":17316,"level":30,"msg":"In Strategy.prototype.jwtVerify: We did not pass Req back to Callback","time":"2022-06-11T06:16:25.107Z","v":0}
Validated claims: {
aud: 'xxxxx-c6fd-xxx-9dac-xxxxxx',
iss: 'https://login.partner.microsoftonline.cn/xxxxx-c6fd-xxx-9dac-xxxxxx/v2.0',
iat: 1654924192,
nbf: 1654924192,
exp: 1654928092,
name: 'your name here',
oid: 'xxxxx-c6fd-xxx-9dac-xxxxxx',
preferred_username: '[email protected]',
rh: '0.xxxxxxxxx-xxxxxxxxxxxxxx.',
sub: 'xxxxxxxxxxxxxxxxxxxxxxxxxxxx',
tid: 'x-66d7-47a8-xx-xxx',
uti: 'xxxxxxxxxxxxxxxxxxxxxxxxx',
ver: '2.0'
}
GET /hello 200 11.557 ms - 16 [可選]第五步：修改AAD注冊應用的accessTokenAcceptedVersion
因為中國區AAD目前生成的Token為OAuth v1.0， 而在API應用中 identityMetadata 使用的是v2.0的openid-configration。是以需要在ADD中修改目前注冊應用的清單檔案(Mainfest）中
accessTokenAcceptedVersion 值為 2
- 登入Azure 門戶，選擇Azure AD。
- 點選 App registrations 并選擇自己的應用，如本示例中的“ExpressWebApp”
- 進入應用Overview頁面後，選擇左側導航中“Manifest”清單頁面。修改 accessTokenAcceptedVersion 的值為2，儲存即可。
參考資料
Configure authentication in a sample Node.js web API by using Azure Active Directory B2C: https://docs.microsoft.com/en-us/azure/active-directory-b2c/configure-authentication-in-sample-node-web-app-with-api#step-4-get-the-web-api-sample-code
Microsoft Azure Active Directory Passport.js Plug-In：https://github.com/AzureAD/passport-azure-ad#42-bearerstrategy
Tutorial: Sign in users and acquire a token for Microsoft Graph in a Node.js & Express web app: https://docs.microsoft.com/en-us/azure/active-directory/develop/tutorial-v2-nodejs-webapp-msal
Example: Acquiring tokens with ADAL Node vs. MSAL Node：https://docs.microsoft.com/en-us/azure/active-directory/develop/msal-node-migration#example-acquiring-tokens-with-adal-node-vs-msal-node
NodeJS Express + MSAL 應用實作AAD內建登入并部署在App Service Linux環境中的實作步驟：https://www.cnblogs.com/lulight/p/16353145.html
NodeJS Express + MSAL 應用實作AAD登入并擷取AccessToken -- cca.acquireTokenByCode(tokenRequest):https://www.cnblogs.com/lulight/p/16357246.html
當在複雜的環境中面臨問題，格物之道需：濁而靜之徐清，安以動之徐生。 雲中，恰是如此!
