SDN第二次上機作業

安裝使用Floodlight

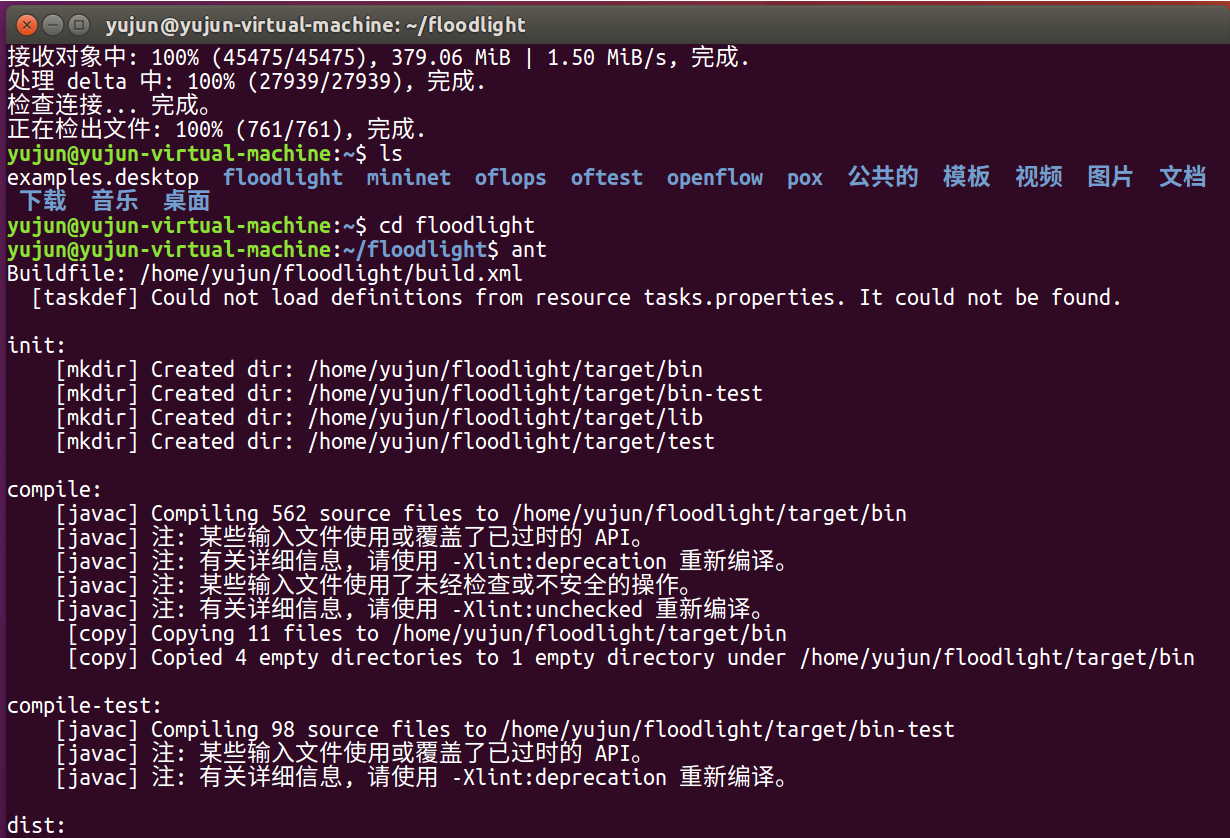

1.安裝floodlight

2.生成拓撲并連接配接控制器floodlight，利用控制器floodlight檢視圖形拓撲

生成拓撲代碼：

from mininet.topo import Topo

class MyTopo( Topo ):
    "Simple topology example."

    def __init__( self ):
        "Create custom topo."

        # Initialize topology
        Topo.__init__( self )

        # Add hosts and switches
        host1 = self.addHost( 'h1' )
        host2 = self.addHost( 'h2' )
        host3 = self.addHost( 'h3' )
        switch1 = self.addSwitch( 's1' )
        switch2 = self.addSwitch( 's2' )
        switch3 = self.addSwitch( 's3' )
        switch4 = self.addSwitch( 's4' )

        # Add links
        self.addLink( host1, switch2 )
        self.addLink( host2, switch3 )
        self.addLink( host3, switch4 )
        self.addLink( switch1, switch2 )
        self.addLink( switch1, switch3 )
        self.addLink( switch1, switch4 )


topos = { 'mytopo': ( lambda: MyTopo() ) }



運作代碼，測試連通性

floodlight檢視拓撲圖

3.利用字元界面下發流表，使得‘h1’和‘h2’ ping 不通

4.利用字元界面下發流表，通過測試‘h1’和‘h3’的聯通性，來驗證openflow的hardtime機制
