k8s：py項目釋出完整流程

k8s：py項目釋出流程

1. 編寫Dockerfile

# cat Dockerfile
FROM python:3.6-slim
USER root
RUN apt-get update && apt-get install gcc -y && \
    apt-get clean && \
    rm -rf /var/lib/apt/lists/*
ADD . /app
WORKDIR /app
RUN pip install -r requirement.txt
EXPOSE 8000
CMD [ "uvicorn", "main:app","--host", "0.0.0.0", "--port", "8000" ]


2. 驗證Docker鏡像

3. 編寫Pod資源清單

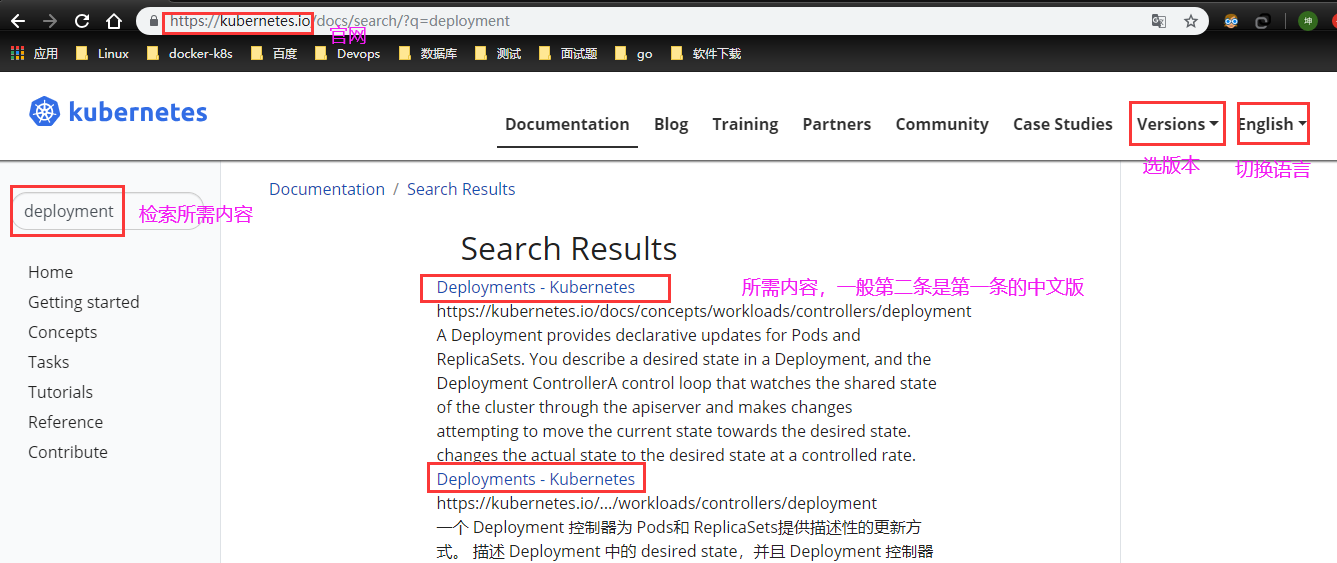

要學會借鑒官網！！！，示範一遍

首先要問清楚業務是有狀态還是無狀态，無狀态就選deployment，有狀态就選statefulset。我這裡是個小程式，無狀态應用。

Kubernetes版本變化很快，搞k8s一定要學會看官網。

官方案例

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deployment
  labels:
    app: nginx
spec:
  replicas: 3
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:1.14.2
        ports:
        - containerPort: 80


改：是要标簽對的上就OK了

##########################################################################
#Author:                     zisefeizhu
#QQ:                         2********0
#Date:                       2020-06-16
#FileName:                   delpoyment.yaml
#URL:                        https://www.cnblogs.com/zisefeizhu/
#Description:                The test script
#Copyright (C):              2020 All rights reserved
###########################################################################
apiVersion: apps/v1
kind: Deployment
metadata:
  name: businesscard-deployment
spec:
  selector:
    matchLabels:
      app: businesscard
  replicas: 2 # tells deployment to run 2 pods matching the template
  template:
    metadata:
      labels:
        app: businesscard
    spec:
      imagePullSecrets:
      - name: business-card
      containers:
      - name: businesscard
        imagePullPolicy: "IfNotPresent"
        image: xxxxxx/business-card:v1
        ports:
        - containerPort: 8000


4. 編寫Service清單

apiVersion: v1
kind: Service
metadata:
  name: my-service
spec:
  selector:
    app: MyApp
  ports:
    - protocol: TCP
      port: 80
      targetPort: 9376


改：标簽對的上就OK!

cat service.yaml
##########################################################################
#Author:                     zisefeizhu
#QQ:                         2********0
#Date:                       2020-06-16
#FileName:                   service.yaml
#URL:                        https://www.cnblogs.com/zisefeizhu/
#Description:                The test script
#Copyright (C):              2020 All rights reserved
###########################################################################
apiVersion: v1
kind: Service
metadata:
  name: businesscard
spec:
  #type: NodePort
  selector:
    app: businesscard
  ports:
    - protocol: TCP
      port: 8000



5. 編寫ingress清單

這塊就要根據不同的ingress-controller 編寫不同的ingress，比如nginx、traefik 等

##########################################################################
#Author:                     zisefeizhu
#QQ:                         2********0
#Date:                       2020-06-17
#FileName:                   nginx-ingress.yaml
#URL:                        https://www.cnblogs.com/zisefeizhu/
#Description:                The test script
#Copyright (C):              2020 All rights reserved
###########################################################################
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: businesscard
spec:
 # tls:
 # - hosts:
 #   - businesscard.stage.realibox.com
 #   secretName: businesscard-ingress-secret
  rules:
  - host: card.linux.com
    http:
      paths:
      - path: /
        backend:
          serviceName: businesscard
          servicePort: 8000


6. 驗證

資源pod、svc、ingress驗證

# kubectl get pods,svc,ingress
NAME                                          READY   STATUS    RESTARTS   AGE
pod/businesscard-deployment-f69768dd9-zc56p   1/1     Running   1          26h
pod/nginx-deployment-6b474476c4-4644v         1/1     Running   0          4h28m
pod/nginx-deployment-6b474476c4-b2dwh         1/1     Running   0          4h28m
pod/nginx-deployment-6b474476c4-hdsgv         1/1     Running   0          4h28m

NAME                   TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE
service/businesscard   ClusterIP   10.68.32.93     <none>        8000/TCP   25h
service/kubernetes     ClusterIP   10.68.0.1       <none>        443/TCP    3d11h
service/nginx          ClusterIP   10.68.185.184   <none>        80/TCP     4h28m

NAME                              CLASS    HOSTS              ADDRESS   PORTS   AGE
ingress.extensions/businesscard   <none>   card.linux.com               80      6h11m
ingress.extensions/ingress-test   <none>   test.ingress.com             80      24h
ingress.extensions/nginx          <none>   nginx.linux.com              80      4h28m


用戶端驗證

驗證成功。
