移植 Python 量化交易 TA-Lib 庫到函數計算

TA-Lib

，全稱“Technical Analysis Library”, 即技術分析庫，是 Python 金融量化的進階庫，涵蓋了 150 多種股票、期貨交易軟體中常用的技術分析名額，如 MACD、RSI、KDJ、動量名額、布林帶等等。

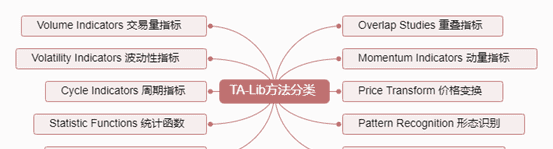

TA-Lib 可分為 10 個子闆塊：

• Overlap Studies(重疊名額)
• Momentum Indicators(動量名額)
• Volume Indicators(交易量名額)
• Cycle Indicators(周期名額)
• Price Transform(價格變換)
• Volatility Indicators(波動率名額)
• Pattern Recognition(模式識别)
• Statistic Functions(統計函數)
• Math Transform(數學變換)
• Math Operators(數學運算)

本文介紹通過 Funcraft 的模闆将 Python 量化交易庫 TA-lib 移植到

函數計算

。

依賴工具

本項目是在 MacOS 下開發的，涉及到的工具是平台無關的，對于 Linux 和 Windows 桌面系統應該也同樣适用。在開始本例之前請確定如下工具已經正确的安裝，更新到最新版本，并進行正确的配置。

• Docker
• Funcraft

對于 MacOS 使用者可以使用

homebrew

進行安裝：

brew cask install docker
brew tap vangie/formula
brew install fun

Windows 和 Linux 使用者安裝請參考：

https://github.com/aliyun/fun/blob/master/docs/usage/installation.md

安裝好後，記得先執行

fun config

初始化一下配置。

初始化

使用 fun init 指令可以快捷地将本模闆項目初始化到本地。

fun init vangie/ta-lib-example

安裝依賴

$ fun install
using template: template.yml
start installing function dependencies without docker

building ta-lib-example/ta-lib-example
Funfile exist, Fun will use container to build forcely
Step 1/5 : FROM registry.cn-beijing.aliyuncs.com/aliyunfc/runtime-python3.6:build-1.7.7
 ---> 373f5819463b
Step 2/5 : COPY ta-lib-0.4.0-src.tar.gz /tmp
 ---> Using cache
 ---> 64f9f85112b4
Step 3/5 : RUN cd /tmp; tar -xzf ta-lib-0.4.0-src.tar.gz
 ---> Using cache
 ---> 9f2d3f836de9
Step 4/5 : RUN cd /tmp/ta-lib/ ;     ./configure --prefix=/code/.fun/root/usr ;     make ; make install
 ---> Using cache
 ---> 7725836973d4
Step 5/5 : RUN TA_LIBRARY_PATH=/code/.fun/root/usr/lib     TA_INCLUDE_PATH=/code/.fun/root/usr/include     fun-install pip install TA-Lib
 ---> Using cache
 ---> a338e71895b7
sha256:a338e71895b74a0be98278f35da38c48545f04a54e19ec9e689bab976265350b
Successfully built a338e71895b7
Successfully tagged fun-cache-d4ac1d89-5b75-4429-933a-2260e2f7fbec:latest
copying function artifact to /Users/vangie/Workspace/ta-lib-example/{{ projectName }}

Install Success


Tips for next step
======================
* Invoke Event Function: fun local invoke
* Invoke Http Function: fun local start
* Build Http Function: fun build
* Deploy Resources: fun deploy

本地調用

$ fun local invoke
using template: template.yml

Missing invokeName argument, Fun will use the first function ta-lib-example/ta-lib-example as invokeName

skip pulling image aliyunfc/runtime-python3.6:1.7.7...
FunctionCompute python3 runtime inited.
FC Invoke Start RequestId: dc1495b2-13ec-4ecf-a2dc-a0026d82651a
FC Invoke End RequestId: dc1495b2-13ec-4ecf-a2dc-a0026d82651a
[
    "HT_DCPERIOD",
    "HT_DCPHASE",
    "HT_PHASOR",
    "HT_SINE",
    "HT_TRENDMODE"
]

RequestId: dc1495b2-13ec-4ecf-a2dc-a0026d82651a          Billed Duration: 350 ms         Memory Size: 1998 MB    Max Memory Used: 34 MB

部署

$ fun deploy
using template: template.yml
using region: cn-shanghai
using accountId: ***********4733
using accessKeyId: ***********EUz3
using timeout: 600

Waiting for service ta-lib-example to be deployed...
        Waiting for function ta-lib-example to be deployed...
                Waiting for packaging function ta-lib-example code...
                The function ta-lib-example has been packaged. A total of 39 files files were compressed and the final size was 3.23 MB
        function ta-lib-example deploy success
service ta-lib-example deploy success

執行

$ fun invoke
using template: template.yml

Missing invokeName argument, Fun will use the first function ta-lib-example/ta-lib-example as invokeName

========= FC invoke Logs begin =========
FC Invoke Start RequestId: 83e23eba-02b4-4380-bbca-daec6856bf4a
FC Invoke End RequestId: 83e23eba-02b4-4380-bbca-daec6856bf4a

Duration: 213.86 ms, Billed Duration: 300 ms, Memory Size: 128 MB, Max Memory Used: 43.50 MB
========= FC invoke Logs end =========

FC Invoke Result:
[
    "HT_DCPERIOD",
    "HT_DCPHASE",
    "HT_PHASOR",
    "HT_SINE",
    "HT_TRENDMODE"
]
