springboot + neo4j 圖形資料庫 整合（本地）

springboot + neo4j 圖形資料庫 整合（本地）：

一、Windows環境中安裝neo4j

1、安裝jdk，配置jdk環境變量（此處不講解jdk的安裝配置教程）

2、下載下傳neo4，neo4j社群下載下傳 [下載下傳位址](https://neo4j.com/download-center/)
  3.3.5版本
  連結：https://pan.baidu.com/s/1dfDfGYN1WEvj91F2MrYdxQ
  提取碼：1jqb

  解壓到指定目錄

3、配置neo4j環境變量

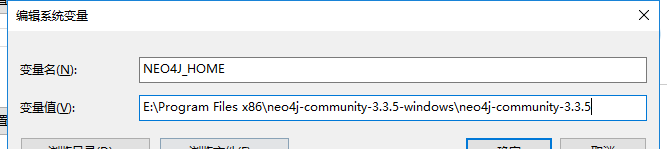

  主目錄設定為變量：

編輯path變量，在path變量值的最後輸入：
  %NEO4J_HOME%\bin

  （Neo4j支援三種網絡協定（Protocol），分别是Bolt，HTTP和HTTPS，預設的連接配接器配置有三種，為了使用這三個端口，需要在
  Windows防火牆中建立Inbound Rules，允許通過端口7687，7474和7473通路本機。）

4、啟動neo4j
  進入neo4j的安裝目錄，啟用DOS指令行視窗，輸入neo4j.bat console指令：

通路：http://localhost:7474/

預設的host是bolt://localhost:7687，預設的使用者是neo4j，預設的密碼是：neo4j，第一次成功connect到Neo4j伺服器之後，需要重置密碼。

以上本地安裝配置結束！


二、建立springboot項目 整合neo4j

使用gradle搭建，build.gradle配置如下：
1、springboot 相關jar包：

ext {
    springBootVersion = '2.0.2.RELEASE'
}
repositories {
    maven { url 'http://maven.aliyun.com/nexus/content/groups/public/' }
    jcenter()
}
dependencies {
    classpath("org.springframework.boot:spring-boot-gradle-plugin:${springBootVersion}")
}
}

apply plugin: 'java'
apply plugin: 'idea'
apply plugin: 'eclipse'
apply plugin: 'org.springframework.boot'
apply plugin: 'io.spring.dependency-management'

compileJava.options.encoding = 'UTF-8'

group = 'com.hbkj'
version = '0.0.1-SNAPSHOT'
sourceCompatibility = 1.8
archivesBaseName = "lobby-match"


repositories {
maven { url 'http://maven.aliyun.com/nexus/content/groups/public/' }
jcenter()
}

dependencies {
compile 'org.springframework.boot:spring-boot-starter-web'
testCompile 'org.springframework.boot:spring-boot-starter-test'
compile group: 'io.netty', name: 'netty-all', version: '4.1.15.Final'
testCompile group: 'junit', name: 'junit', version: '4.12'
}

2、neo4j 相關jar包

compile group: 'org.springframework.boot', name: 'spring-boot-starter-data-neo4j', version: '2.0.5.RELEASE'
  compile group: 'org.neo4j', name: 'neo4j-ogm-embedded-driver', version: '2.0.5'
  compile group: 'org.neo4j', name: 'neo4j-ogm-http-driver', version: '2.0.5'

  //lombok
  compileOnly group: 'org.projectlombok', name: 'lombok', version: '1.18.0'

3、配置application.yml

server:
  port: 8888

spring:
  data:
neo4j:
  uri: bolt://localhost:7687
  username: neo4j
  password: 123456

4、建立實體類

import lombok.Data;
import org.neo4j.ogm.annotation.GeneratedValue;
import org.neo4j.ogm.annotation.Id;
import org.neo4j.ogm.annotation.Index;
import org.neo4j.ogm.annotation.NodeEntity;

@Data
@NodeEntity
public class Student {
  @Id
  @GeneratedValue
  private Long id;

  @Index
  private long userId;
  private String name;
  private long age;

}


5、建立節點處理類 Cypher（注解方式編寫sql）

import com.luzz.domain.bean.Student;
import org.springframework.data.neo4j.annotation.Query;
import org.springframework.data.neo4j.repository.Neo4jRepository;
import org.springframework.data.repository.query.Param;
import org.springframework.stereotype.Repository;

import java.util.List;

/**
 * 節點處理類
 */
@Repository
public interface StudentRepository extends Neo4jRepository<Student, Long> {
  /**
   * 建立節點
   * @param userId
   * @param name
   * @param age
   */
  @Query("create (:Student {userId:{userId},name:{name},age:{age}})")
  void createNode(@Param("userId") long userId, @Param("name") String name, @Param("age") long age);

  /**
   * 查詢所有節點
   * @return
   */
  @Query("match (n:Student) return n;")
  List<Student> getAllStudentNode();

  /**
   * 查詢所有節點的所有關系
   * @return
   */
  @Query("match (a:Student)-[*1..]->(b:Student)return a,b;")
  List<Student> getAllStudentNodeRelation();

  /**
   * 建立2節點的關系 上下關系
   * @param superUserId
   * @param lowerUserId
   * @param time
   * @return
   */
  @Query("match (a:Student),(b:ResellerRelation) where a.userId = {superUserId} and b.userId = {lowerUserId} create (a) - [r:RESELLER_ACTED_IN{since:{time}}] -> (b) return a,b;")
  List<Student> addStudentNodeReseller(@Param("superUserId") long superUserId, @Param("lowerUserId") long lowerUserId, @Param("time") long time);
  /**
   * 根據id查詢單個節點
   * @param userId
   * @return
   */
  @Query("match (n:Student) where n.userId ={userId} return n")
  Student findByUserId(@Param("userId") long userId);

  /**
   * 根據userId查詢節點直屬 2級關系
   * @param userId
   * @return
   */
  @Query("match (a:Student)-[*1..1]->(b:Student) where a.userId = {userId} return a,b")
  List<Student> findAllDirectlyByUserId(@Param("userId") long userId);

  /**
   * 根據userId 查詢該節點的所有關系
   * @param userId
   * @return
   */
  @Query("match (a:Student)-[*1..]->(b:Student) where a.userId = {userId} return a,b")
  List<Student> findAllStudentByUserId(@Param("userId") long userId);

  /**
   * 根據userId 修改節點 屬性
   * @param userId
   * @param name
   * @return
   */
  @Query("match (n:Student) where n.userId = {userId} set n.name ={name} return n")
  Student updateStudentNode(@Param("userId") long userId, @Param("name") long name);


  /**
   * 删除節點關系
   * @param superUserId
   * @param lowerUserId
   */
  @Query("match (n1:Student),(n2:Student) where n1.userId={superUserId} AND n2.userId={lowerUserId} optional match (n1)-[r]-(n2) delete r;")
  void deleteStudentNodeRelation(@Param("superUserId") long superUserId, @Param("lowerUserId") long lowerUserId);
}


可繼承Neo4jRepository，可不繼承，Neo4jRepository方法如下：

可使用save方法來根據對象建立節點

6、建立業務層StudentService StudentServiceImpl

StudentService.java

import com.luzz.domain.bean.Student;

import java.util.List;

public interface StudentService {
  void createNode(Student student);
  /**
   * 查詢所有節點
   * @return
   */
  List<Student> getAllStudentNode();

  /**
   * 查詢所有節點的所有關系
   * @return
   */
  List<Student> getAllStudentNodeRelation();

  /**
   * 建立2節點的關系 上下關系
   * @param superUserId
   * @param lowerUserId
   * @param time
   * @return
   */
  List<Student> addStudentNodeReseller(long superUserId, long lowerUserId, long time);
  /**
   * 根據id查詢單個節點
   * @param userId
   * @return
   */
  Student findByUserId(long userId);

  /**
   * 根據userId查詢節點直屬 2級關系
   * @param userId
   * @return
   */
  List<Student> findAllDirectlyByUserId(long userId);

  /**
   * 根據userId 查詢該節點的所有關系
   * @param userId
   * @return
   */
  List<Student> findAllStudentByUserId(long userId);

  /**
   * 根據userId 修改節點 屬性
   * @param userId
   * @param name
   * @return
   */
  Student updateStudentNode(long userId, long name);


  /**
   * 删除節點關系
   * @param superUserId
   * @param lowerUserId
   */
  void deleteStudentNodeRelation(long superUserId, long lowerUserId);
}


StudentServiceImpl.java

import com.luzz.domain.bean.Student;
import com.luzz.domain.service.StudentRepository;
import com.luzz.domain.service.StudentService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;
@Service
public class StudentServiceImpl implements StudentService {
    @Autowired
    StudentRepository repository;

    @Override
    public void createNode(Student student) {
        repository.save(student);
    }

    @Override
    public List<Student> getAllStudentNode() {
        return null;
    }

    @Override
    public List<Student> getAllStudentNodeRelation() {
        return null;
    }

    @Override
    public List<Student> addStudentNodeReseller(long superUserId, long lowerUserId, long time) {
        return null;
    }

    @Override
    public Student findByUserId(long userId) {
        return repository.findByUserId(userId);
    }

    @Override
    public List<Student> findAllDirectlyByUserId(long userId) {
        return null;
    }

    @Override
    public List<Student> findAllStudentByUserId(long userId) {
        return null;
    }

    @Override
    public Student updateStudentNode(long userId, long name) {
        return null;
    }

    @Override
    public void deleteStudentNodeRelation(long superUserId, long lowerUserId) {

    }
}


7、測試Controller

import com.luzz.domain.bean.Student;
import com.luzz.domain.service.StudentService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("/studentRelation")
public class TestController {
  @Autowired
  StudentService service;

  @GetMapping("/test")
  public String test() {
      //建立節點
      Student student = new Student();
      student.setUserId(100005);
      student.setName("李七");
      student.setAge(23);
      service.createNode(student);

      Student st = service.findByUserId(100005);
      System.out.println("查詢結果：" + st);
      return st.toString();
  }
}



8、執行結果
