Flutter 66: 圖解基本限制 Box (一)

      小菜在學習過程中，為了調整或适配 Widget 大小時，會設定 Widget 或嵌套使用一些限制 Widget；小菜針對性學習一下這一系列的限制 Box；

SizedBox

源碼分析

class SizedBox extends SingleChildRenderObjectWidget {
  // 建立固定大小的限制Box
  const SizedBox({ Key key, this.width, this.height, Widget child })
    : super(key: key, child: child);

  // 建立父類允許最大尺寸的限制Box
  const SizedBox.expand({ Key key, Widget child })
    : width = double.infinity,
      height = double.infinity,
      super(key: key, child: child);

  // 建立父類允許最小尺寸的限制Box
  const SizedBox.shrink({ Key key, Widget child })
    : width = 0.0,
      height = 0.0,
      super(key: key, child: child);

  // 建立指定大小的限制Box
  SizedBox.fromSize({ Key key, Widget child, Size size })
    : width = size?.width,
      height = size?.height,
      super(key: key, child: child);
}

      分析源碼可知，SizeBox 繼承自 SingleChildRenderObjectWidget 僅提供子 Child 的存儲并不提供更新邏輯；且 SizedBox 提供了多種使用方法，小菜逐一嘗試；

案例嘗試

1. SizedBox({ Key key, this.width, this.height, Widget child })

      SizedBox 可自定義 width 和 height，當限制寬高時，子 Widget 無論寬高如何，均預設填充；通過設定 double.infinity 填充父類 Widget 寬高，注意此時父類要有限制，不可是無限寬高；當 width 和 height 未設定時，根據子 Widget 大小展示；

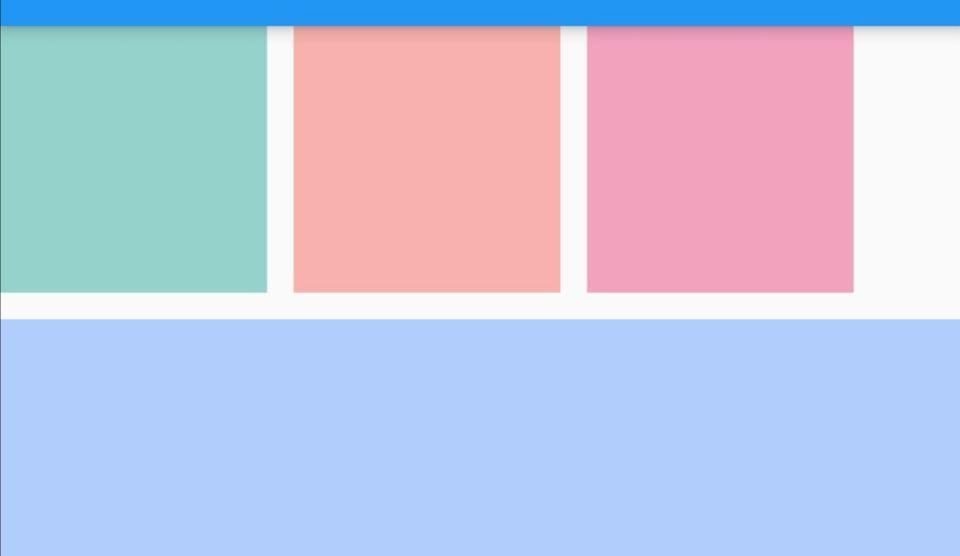

return SizedBox(width: 100.0, height: 100.0, child: Container(color: Colors.teal.withOpacity(0.4)));
return SizedBox(width: 100.0, height: 100.0, child: Container(color: Colors.red.withOpacity(0.4), width: 200.0, height: 200.0));
return SizedBox(width: 100.0, height: 100.0, child: Container(color: Colors.pink.withOpacity(0.4), width: 50.0, height: 50.0));
return SizedBox(width: double.infinity, height: 100.0, child: Container(color: Colors.blueAccent.withOpacity(0.4)));

2. SizedBox.expand({ Key key, Widget child })

      .expand 是便捷方法，預設 width 和 height 均為 double.infinity，填充整個父類 Widget；

return SizedBox.expand(child: Container(color: Colors.blueAccent.withOpacity(0.4)));

3. SizedBox.shrink({ Key key, Widget child })

      .shrink 同樣是便捷方法，但 width 和 height 均為 0.0，無論子 Widget 設定多少均不展示；小菜暫時未想出此類方法的應用場景；

return SizedBox.shrink(child: Container(color: Colors.pink.withOpacity(0.4)));

4. SizedBox.fromSize({ Key key, Widget child, Size size })

      .fromSize 便捷方式與基本的建構方式基本相同，隻是 width 和 height 由 Size 封裝，小菜用此方法實作與基本方式相同的效果；

return SizedBox.fromSize(size: Size(100.0, 100.0), child: Container(color: Colors.teal.withOpacity(0.4)));
return SizedBox.fromSize(size: Size(100.0, 100.0), child: Container(color: Colors.red.withOpacity(0.4), width: 200.0, height: 200.0));
return SizedBox.fromSize(size: Size(100.0, 100.0), child: Container(color: Colors.pink.withOpacity(0.4), width: 50.0, height: 50.0));
return SizedBox.fromSize(size: Size(double.infinity, 100.0), child: Container(color: Colors.blueAccent.withOpacity(0.4)));

ConstrainedBox

class ConstrainedBox extends SingleChildRenderObjectWidget {
  ConstrainedBox({
    Key key,
    @required this.constraints,
    Widget child,
  })
}

class BoxConstraints extends Constraints {
  // 用指定的限制大小建立架構大小
  const BoxConstraints({
    this.minWidth = 0.0,
    this.maxWidth = double.infinity,
    this.minHeight = 0.0,
    this.maxHeight = double.infinity,
  });

  // 僅用指定大小建立架構大小
  BoxConstraints.tight(Size size)
    : minWidth = size.width,
      maxWidth = size.width,
      minHeight = size.height,
      maxHeight = size.height;

  // 用指定的限制大小建立架構大小
  const BoxConstraints.tightFor({
    double width,
    double height,
  })

  // 建立需要給定寬度或高度的框限制，除非它們是無限的
  const BoxConstraints.tightForFinite({
    double width = double.infinity,
    double height = double.infinity,
  })

  // 建立禁止大小大于給定大小的框限制
  BoxConstraints.loose(Size size)
    : minWidth = 0.0,
      maxWidth = size.width,
      minHeight = 0.0,
      maxHeight = size.height;

  // 建立擴充為填充另一個框限制的框限制
  const BoxConstraints.expand({
    double width,
    double height,
  })
}

      分析源碼可知，ConstrainedBox 同樣是繼承自 SingleChildRenderObjectWidget；限制方式主要是對 constraints 的操作；相對于 SizedBox 限制更為靈活；

1. BoxConstraints()

      BoxConstraints 的構造方法可以設定最大最小寬度和高度四個屬性，在實際場景中可以靈活運用；其限制的大小按照 minWidth <= child.width <= maxWidth && minHeight <= child.Height <= maxHeight，當我們不設定寬高尺寸時，minWidth = 0.0 && minHeight = 0.0 && maxWidth = double.infinity && maxHeight = double.infinity;

return ConstrainedBox(constraints: BoxConstraints(), child: Container(color: Colors.pink.withOpacity(0.4), child: _textWid('ConstrainedBox')));
return ConstrainedBox(constraints: BoxConstraints(), child: Container(color: Colors.blueAccent.withOpacity(0.4), child: _textWid('ConstrainedBox: A widget that imposes additional constraints on its child.')));
return ConstrainedBox(constraints: BoxConstraints(minWidth: 100.0, minHeight: 100.0), child: Container(color: Colors.orange.withOpacity(0.4), child: _textWid('ConstrainedBox')));
return ConstrainedBox(constraints: BoxConstraints(maxHeight: 100.0, maxWidth: 100.0),  child: Container(color: Colors.teal.withOpacity(0.4), child: _textWid('ConstrainedBox: A widget that imposes additional constraints on its child.')));

2. BoxConstraints.tight(Size size)

      .tight 構造方法中需要傳一個固定尺寸的 Size 其中 minWidth == maxWidth == size.width && maxWidth == maxHeight == size.height；無論子 Widget 設定多大寬高均按照 Size 寬高限制；

return ConstrainedBox(constraints: BoxConstraints.tight(Size(110.0, 120.0)),
        child: Container(color: Colors.purple.withOpacity(0.4), child: _textWid('ConstrainedBox: A widget that imposes additional constraints on its child.')));

3. BoxConstraints.tightFor()

      小菜了解 .tightFor 方式是 .tight 方式的細化，可以自定義 width 和 height；若寬高未設定，則最大寬高為無限，最小寬高為 0.0；若設定寬高則以設定尺寸進行限制；

return ConstrainedBox(constraints: BoxConstraints.tightFor(height: 110.0),
        child: Container(color: Colors.teal.withOpacity(0.4), child: _textWid('ConstrainedBox: A widget that imposes additional constraints on its child.')));
return ConstrainedBox(constraints: BoxConstraints.tightFor(width: 110.0, height: 120.0),
        child: Container(color: Colors.purple.withOpacity(0.4), child: _textWid('ConstrainedBox: A widget that imposes additional constraints on its child.')));

4. BoxConstraints.tightForFinite()

      .tightForFinite 與 .tightFor 類似，預設最大寬高為無限，最小寬高為 0.0，其判斷的是設定寬高是否為無限，不是 double.infinity 則 minWidth == maxWidth == width && maxWidth == maxHeight == height 進行限制；

return ConstrainedBox(constraints: BoxConstraints.tightForFinite(),
        child: Container(color: Colors.teal.withOpacity(0.4), child: _textWid('ConstrainedBox: A widget that imposes additional constraints on its child.')));
return ConstrainedBox(constraints: BoxConstraints.tightForFinite(width: 110.0, height: 120.0),
        child: Container(color: Colors.purple.withOpacity(0.4), child: _textWid('ConstrainedBox: A widget that imposes additional constraints on its child.')));

5. BoxConstraints.loose()

      .loose 方式限制給定 Size 大小，minWidth / minHeight 均為 0.0，最大寬高為 Size 大小；其中整體限制由 Size 限制，實際展示與子 Widget 大小相關；

return ConstrainedBox(constraints: BoxConstraints.loose(Size(110.0, 150.0)),
        child: Container(color: Colors.purple.withOpacity(0.4), child: _textWid('ConstrainedBox: A widget that imposes additional constraints on its child.')));
return ConstrainedBox(constraints: BoxConstraints.loose(Size(110.0, 150.0)),
        child: Container(width: 200.0, height: 200.0, color: Colors.grey.withOpacity(0.6),
            child: _textWid('ConstrainedBox: A widget that imposes additional constraints on its child.')));
return ConstrainedBox(constraints: BoxConstraints.loose(Size(110.0, 120.0)),
        child: Container(width: 100.0, height: 100.0, color: Colors.green.withOpacity(0.6),
            child: _textWid('ConstrainedBox: A widget that imposes additional constraints on its child.')));

6. BoxConstraints.expand()

      大部分 .expand 方式是填充方式，預設填滿父 Widget，若不設定寬高，預設 minWidth == maxWidth == double.infinity && minHeight == maxHeight == double.infinity，使用時注意父類限制；

return ConstrainedBox(constraints: BoxConstraints.expand(),
    child: Container(color: Colors.teal.withOpacity(0.4), child: _textWid('ConstrainedBox: A widget that imposes additional constraints on its child.')));
return ConstrainedBox(constraints: BoxConstraints.expand(width: 110.0, height: 150.0),
    child: Container(color: Colors.purple.withOpacity(0.4), child: _textWid('ConstrainedBox: A widget that imposes additional constraints on its child.')));

      Flutter 提供了多種限制 Box，所謂條條大路通羅馬，同一種效果可以有多種實作方式，但小菜認為還是應該多多了解，盡量嘗試最優方案；小菜對 Box 系列的研究還很淺顯，有錯誤的地方請多多指導！

來源： 阿策小和尚
