WPF旋轉的界面實作

原文: WPF旋轉的界面實作

版權聲明：本文為部落客原創文章，未經部落客允許不得轉載。 https://blog.csdn.net/yangyisen0713/article/details/18215349

在WPF中可以做出旋轉的界面，這樣不僅效果好看，而且節省界面和代碼處理。

xaml代碼如下：

<Window x:Class="V3ViewApp.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:sys="clr-namespace:System;assembly=mscorlib"
        Title="旋轉界面" Height="360" Width="450" Background="Black" WindowState="Normal" WindowStartupLocation="CenterScreen">
    <Window.Resources>
        <sys:Double x:Key="grdSize">200</sys:Double>
    </Window.Resources>
    <Grid >
        <Viewport3D ClipToBounds="True" HorizontalAlignment="Center" VerticalAlignment="Center" Height="500" Width="500">
            <Viewport3D.Camera>
                <PerspectiveCamera LookDirection="0,0,-1" Position="0,0,300"/>
            </Viewport3D.Camera>
            <Viewport3D.Children>
                <ModelVisual3D>
                    <ModelVisual3D.Content>
                        <AmbientLight Color="Transparent"/>
                    </ModelVisual3D.Content>
                    <ModelVisual3D.Children>

                        <Viewport2DVisual3D>
                            <Viewport2DVisual3D.Geometry>
                                <MeshGeometry3D Positions="-50,50,-50  -50,-50,-50  -50,-50,50  -50,50,50"
                                                Normals="0,0,1  0,0,1  0,0,1  0,0,1"
                                                TriangleIndices="0,1,2  0,2,3"
                                                TextureCoordinates="0,0  0,1  1,1  1,0"/>
                            </Viewport2DVisual3D.Geometry>
                            <Viewport2DVisual3D.Material>
                                <DiffuseMaterial Brush="Transparent" Viewport2DVisual3D.IsVisualHostMaterial="True"/>
                            </Viewport2DVisual3D.Material>
                            <Viewport2DVisual3D.Visual>
                                <Grid Background="Yellow"  Width="{StaticResource grdSize}" Height="{StaticResource grdSize}">
                                    <Grid.RowDefinitions>
                                        <RowDefinition Height="auto"/>
                                        <RowDefinition Height="*"/>
                                        <RowDefinition Height="auto"/>
                                    </Grid.RowDefinitions>
                                </Grid>
                            </Viewport2DVisual3D.Visual>
                        </Viewport2DVisual3D>

                        <Viewport2DVisual3D>
                            <Viewport2DVisual3D.Geometry>
                                <MeshGeometry3D Positions="-50,50,50  -50,-50,50  50,-50,50  50,50,50"
                                                Normals="0,0,1  0,0,1  0,0,1  0,0,1"
                                                TriangleIndices="0,1,2  0,2,3"
                                                TextureCoordinates="0,0  0,1  1,1  1,0"/>
                            </Viewport2DVisual3D.Geometry>
                            <Viewport2DVisual3D.Material>
                                <DiffuseMaterial Brush="Transparent" Viewport2DVisual3D.IsVisualHostMaterial="True"/>
                            </Viewport2DVisual3D.Material>
                            <Viewport2DVisual3D.Visual>
                                <Grid Background="Red" Height="{StaticResource grdSize}" Width="{StaticResource grdSize}">
                                    <StackPanel Margin="4">

                                    </StackPanel>
                                </Grid>
                            </Viewport2DVisual3D.Visual>
                        </Viewport2DVisual3D>

                        <Viewport2DVisual3D>
                            <Viewport2DVisual3D.Geometry>
                                <MeshGeometry3D Positions="50,50,50  50,-50,50  50,-50,-50  50,50,-50"
                                                Normals="0,0,1  0,0,1  0,0,1  0,0,1"
                                                TriangleIndices="0,1,2  0,2,3"
                                                TextureCoordinates="0,0  0,1  1,1  1,0"/>
                            </Viewport2DVisual3D.Geometry>
                            <Viewport2DVisual3D.Material>
                                <DiffuseMaterial Brush="Transparent" Viewport2DVisual3D.IsVisualHostMaterial="True"/>
                            </Viewport2DVisual3D.Material>
                            <Viewport2DVisual3D.Visual>
                                <Grid Background="Green" Width="{StaticResource grdSize}" Height="{StaticResource grdSize}">
                                    <Canvas>
                                       <Ellipse />
                                    </Canvas>
                                </Grid>
                            </Viewport2DVisual3D.Visual>
                        </Viewport2DVisual3D>

                        <Viewport2DVisual3D>
                            <Viewport2DVisual3D.Geometry>
                                <MeshGeometry3D Positions="50,50,-50  50,-50,-50  -50,-50,-50  -50,50,-50"
                                                Normals="0,0,1  0,0,1  0,0,1  0,0,1"
                                                TriangleIndices="0,1,2  0,2,3"
                                                TextureCoordinates="0,0  0,1  1,1  1,0"/>
                            </Viewport2DVisual3D.Geometry>
                            <Viewport2DVisual3D.Material>
                                <DiffuseMaterial Brush="Transparent" Viewport2DVisual3D.IsVisualHostMaterial="True"/>
                            </Viewport2DVisual3D.Material>
                            <Viewport2DVisual3D.Visual>
                                <Grid Background="Blue" Height="{StaticResource grdSize}" Width="{StaticResource grdSize}">

                                </Grid>
                            </Viewport2DVisual3D.Visual>
                        </Viewport2DVisual3D>
                    </ModelVisual3D.Children>
                    <ModelVisual3D.Transform>
                        <RotateTransform3D  CenterX="0" CenterY="0" CenterZ="0">
                            <RotateTransform3D.Rotation>
                                <AxisAngleRotation3D Angle="0" Axis="0,1,0" x:Name="ar"/>
                            </RotateTransform3D.Rotation>
                        </RotateTransform3D>
                    </ModelVisual3D.Transform>
                </ModelVisual3D>
            </Viewport3D.Children>
        </Viewport3D>
    </Grid>
</Window>


CS代碼如下：

public MainWindow()
        {
            InitializeComponent();

            // 設定快捷鍵
            KeyBinding forwBind = new System.Windows.Input.KeyBinding();
            forwBind.Command = new ForwCommand();
            forwBind.CommandParameter = ar;
            forwBind.Key = System.Windows.Input.Key.Right;
            this.InputBindings.Add(forwBind);
            KeyBinding backBind = new System.Windows.Input.KeyBinding();
            backBind.Command = new BackCommand();
            backBind.CommandParameter = ar;
            backBind.Key = System.Windows.Input.Key.Left;
            this.InputBindings.Add(backBind);

            this.Loaded += (k, k2) =>
                {

                };
        }
    }

    /// <summary>
    /// 向前移動
    /// </summary>
    public class ForwCommand : ICommand
    {
        public bool CanExecute(object parameter)
        {
            if (parameter == null)
            {
                return false;
            }
            return true;
        }

        public event EventHandler CanExecuteChanged;

        public void Execute(object parameter)
        {
            AxisAngleRotation3D rot = parameter as AxisAngleRotation3D;
            DoubleAnimation d = new DoubleAnimation();
            d.Duration = new Duration(TimeSpan.FromMilliseconds(800));
            d.By = 90d;
            rot.BeginAnimation(AxisAngleRotation3D.AngleProperty, d, HandoffBehavior.Compose);
        }
    }

    /// <summary>
    /// 向後移動
    /// </summary>
    public class BackCommand : ICommand
    {
        public bool CanExecute(object parameter)
        {
            if (parameter == null)
            {
                return false;
            }
            return true;
        }

        public event EventHandler CanExecuteChanged;

        public void Execute(object parameter)
        {
            AxisAngleRotation3D rot = parameter as AxisAngleRotation3D;
            DoubleAnimation d = new DoubleAnimation();
            d.By = -90d;
            d.Duration = new Duration(TimeSpan.FromMilliseconds(800));
            rot.BeginAnimation(AxisAngleRotation3D.AngleProperty, d, HandoffBehavior.Compose);
        }
    }

最後用鍵盤左右鍵實作界面切換，之後可以自己改成别的快捷鍵進行切換。

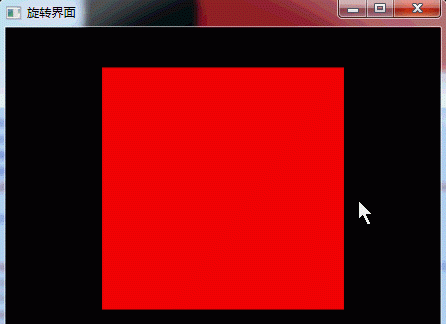

效果如圖：
