近期碰到需要使用密鑰登入的情況，不同的連接配接終端的情況不太一樣，是以對此總結一番
一、 密鑰對生成
注意：本地主機和目的主機需 ping 通
1）确認伺服器是否安裝有 ssh 以及openssh服務端
[zyy@kube-master ~]$ rpm -qa |grep openssh
openssh-6.6.1p1-25.el7_2.x86_64
openssh-clients-6.6.1p1-25.el7_2.x86_64
openssh-server-6.6.1p1-25.el7_2.x86_64
[zyy@kube-master ~]$
[zyy@kube-master ~]$
[zyy@kube-master ~]$ systemctl status sshd
● sshd.service - OpenSSH server daemon
Loaded: loaded (/usr/lib/systemd/system/sshd.service; enabled; vendor preset: enabled)
Active: active (running) since Mon 2018-05-21 17:40:41 CST; 22h ago
Docs: man:sshd(8)
man:sshd_config(5)
Main PID: 10690 (sshd)
CGroup: /system.slice/sshd.service
└─10690 /usr/sbin/sshd -D 2）在目的主機切換到需要使用密鑰登入的賬戶，生成密鑰對
[zyy@kube-master ~]$ ssh-keygen
Generating public/private rsa key pair.
Enter file in which to save the key (/home/zyy/.ssh/id_rsa):
Created directory '/home/zyy/.ssh'.
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /home/zyy/.ssh/id_rsa.
Your public key has been saved in /home/zyy/.ssh/id_rsa.pub.
The key fingerprint is:
1d:46:32:22:37:b3:ff:f1:14:d9:6f:3c:19:cb:4a:11 zyy@kube-master
The key's randomart image is:
+--[ RSA 2048]----+
| . = o . E |
| o = + o. |
| . o o... |
| . o . .oo+|
| S o .. =+|
| . +. ...|
| . .. |
| |
| |
+-----------------+ 3）檢視生成的密鑰、公鑰對，權限均設定為 600
[zyy@kube-master .ssh]$ ll
total 8
-rw------- 1 zyy zyy 1679 May 22 16:32 id_rsa # 私鑰
-rw-r--r-- 1 zyy zyy 397 May 22 16:32 id_rsa.pub # 公鑰 4）根據需要修改登入方式
修改 sshd 連接配接配置檔案 vim /etc/ssh/sshd_config
PasswordAuthentication no # 不允許密碼驗證登入
PubkeyAuthentication yes # 允許公鑰驗證登入
AuthorizedKeysFile .ssh/id_rsa.pub # 指定公鑰檔案路徑 5）将私鑰和公鑰導出來儲存備用
[zyy@kube-master .ssh]$ sz id_rsa id_rsa.pub 二、使用 Xshell 連接配接
打開連接配接終端，設定好主機名，然後設定好連接配接資訊
在連接配接過程中可能會出現如下錯誤資訊
這是因為在服務端沒有加入認證
将公鑰追加到一個檔案，命名為authorized_keys
[zyy@kube-master .ssh]$ cat id_rsa.pub >authorized_keys
将檔案權限設定為 600
[zyy@kube-master .ssh]$ chmod 600 authorized_keys
[zyy@kube-master .ssh]$
[zyy@kube-master .ssh]$ ll
total 12
-rw------- 1 zyy zyy 397 May 22 16:47 authorized_keys
-rw------- 1 zyy zyy 1679 May 22 16:32 id_rsa
-rw------- 1 zyy zyy 397 May 22 16:32 id_rsa.pub 然後我們重新進行連接配接就OK了
三、使用 SecureCRT 連接配接

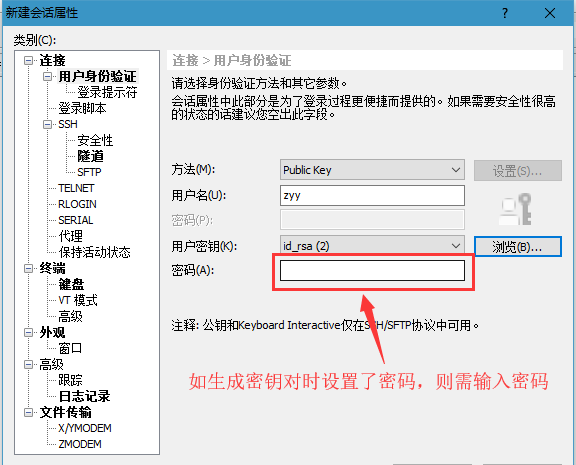

打開CRT，配置連接配接資訊，将密鑰認證設定為首選登入方式
然後導入公鑰
點選确認，成功連接配接
參考資料
