WPF 自定義柱狀圖 BarChart

原文: WPF 自定義柱狀圖 BarChart

WPF 自定義柱狀圖

目前的Telerik控件、DevExpress控件在圖表控件方面做得不錯，但是有時項目中需要特定的樣式，不是隻通過修改圖表的模闆和樣式就能實作的。

或者說，通過修改目前的第三方控件以達到項目中UI的界面效果，花費的時間遠比重新自定義一個控件要長得多！

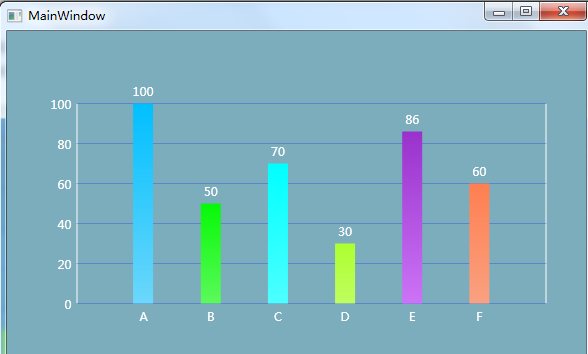

是以直接自定義柱狀圖吧~下面是柱狀圖的效果：

Git代碼下載下傳： https://github.com/Kybs0/BarChartControl 1、建立一個UserControl，在界面上添加一些簡單的布局

<UserControl x:Class="WpfApplication11.BarChartControl"
            xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
            xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
            xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
            xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
            mc:Ignorable="d"
            d:DesignHeight="100" d:DesignWidth="200" Loaded="BarChartControl_OnLoaded">
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"></RowDefinition>
            <RowDefinition Height="*"></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="Auto"></ColumnDefinition>
            <ColumnDefinition Width="*"></ColumnDefinition>
            <ColumnDefinition Width="Auto"></ColumnDefinition>
        </Grid.ColumnDefinitions>
        <Grid x:Name="HeaderGrid" Grid.Row="0" Grid.Column="1" Height="20">
        </Grid>

        <Grid x:Name="LeftGrid" Grid.Row="1" Grid.Column="0">
        </Grid>
        <Border x:Name="MainBorder" Grid.Row="1" Grid.Column="1" BorderThickness="2,0,2,0" BorderBrush="Black">
        </Border>
        <Grid x:Name="MainGridForRow1" Grid.Row="1" Grid.Column="1">

        </Grid>
        <Grid x:Name="MainGridFrom0To1" Grid.Row="0" Grid.Column="1" Grid.RowSpan="2">

        </Grid>
        <Grid x:Name="RightGrid" Grid.Row="1" Grid.Column="2">
        </Grid>

        <Grid x:Name="BottomGrid" Grid.Row="2" Grid.Column="1">
        </Grid>
    </Grid>
</UserControl>

View Code

2、UserControl的背景界面

通過添加一些依賴屬性，然後在背景生成界面。也可以把柱狀替換成RadioButton，實作柱狀圖選擇，添加選擇事件的委托方法。

/// <summary>
    /// BarChartControl.xaml 的互動邏輯
    /// </summary>
    public partial class BarChartControl : UserControl
    {
        public BarChartControl()
        {
            InitializeComponent();
        }

        public Brush BorderBrush
        {
            get { return (Brush)GetValue(BorderBrushProperty); }
            set { SetValue(BorderBrushProperty, value); }
        }

        public static readonly DependencyProperty BorderBrushProperty = DependencyProperty.Register("BorderBrush",
        typeof(Brush), typeof(BarChartControl),
        new PropertyMetadata(Brushes.Black));

        public Thickness BorderThickness
        {
            get { return (Thickness)GetValue(BorderThicknessProperty); }
            set { SetValue(BorderThicknessProperty, value); }
        }

        public static readonly DependencyProperty BorderThicknessProperty = DependencyProperty.Register("BorderThickness",
        typeof(Thickness), typeof(BarChartControl),
        new PropertyMetadata(new Thickness(1.0, 0.0, 1.0, 1.0)));

        public AxisYModel AxisY
        {
            get { return (AxisYModel)GetValue(AxisYProperty); }
            set { SetValue(AxisYProperty, value); }
        }

        public static readonly DependencyProperty AxisYProperty = DependencyProperty.Register("AxisY",
        typeof(AxisYModel), typeof(BarChartControl),
        new PropertyMetadata(new AxisYModel()));

        public AxisXModel AxisX
        {
            get { return (AxisXModel)GetValue(AxisXProperty); }
            set { SetValue(AxisXProperty, value); }
        }

        public static readonly DependencyProperty AxisXProperty = DependencyProperty.Register("AxisX",
        typeof(AxisXModel), typeof(BarChartControl),
        new PropertyMetadata(new AxisXModel()));
        public double HeaderHeight
        {
            get { return (double)GetValue(HeaderHeightProperty); }
            set { SetValue(HeaderHeightProperty, value); }
        }
        public static readonly DependencyProperty HeaderHeightProperty = DependencyProperty.Register("HeaderHeight",
        typeof(double), typeof(BarChartControl), new PropertyMetadata(10.0));
        public string Header
        {
            get { return (string)GetValue(HeaderProperty); }
            set { SetValue(HeaderProperty, value); }
        }
        public static readonly DependencyProperty HeaderProperty = DependencyProperty.Register("Header",
        typeof(string), typeof(BarChartControl), new PropertyMetadata());

        private void BarChartControl_OnLoaded(object sender, RoutedEventArgs e)
        {
            MainBorder.BorderBrush = BorderBrush;
            MainBorder.BorderThickness = BorderThickness;

            BottomGrid.Height = AxisX.Height;
            LeftGrid.Width = AxisY.Width;

            SetYTitlesContent();

            SetXDatasContent();
        }

        private void SetXDatasContent()
        {
            var axisXModel = AxisX;
            if (axisXModel.Datas.Count > 0)
            {
                int count = axisXModel.Datas.Count;
                for (int i = 0; i < count + 1; i++)
                {
                    BottomGrid.ColumnDefinitions.Add(new ColumnDefinition());
                    MainGridFrom0To1.ColumnDefinitions.Add(new ColumnDefinition());
                }
                int index = 0;
                foreach (var data in axisXModel.Datas)
                {
                    //底部
                    var textblock = new TextBlock();
                    textblock.Text = data.Name;
                    textblock.Foreground = axisXModel.ForeGround;
                    textblock.VerticalAlignment = VerticalAlignment.Top;
                    textblock.TextAlignment = TextAlignment.Center;
                    textblock.HorizontalAlignment = HorizontalAlignment.Right;
                    double textBlockWidth = data.LabelWidth;
                    textblock.Width = data.LabelWidth;
                    textblock.Margin = new Thickness(0, 5, -textBlockWidth / 2, 0);
                    Grid.SetColumn(textblock, index);
                    BottomGrid.Children.Add(textblock);


                    //主内容
                    var stackPanel = new StackPanel();
                    stackPanel.Orientation = Orientation.Vertical;

                    var tbl = new TextBlock();
                    tbl.Height = 15;
                    tbl.Margin = new Thickness(0, 0, 0, 5);
                    tbl.Text = data.Value.ToString();
                    tbl.Foreground = axisXModel.ForeGround;
                    tbl.HorizontalAlignment = HorizontalAlignment.Center;
                    stackPanel.Children.Add(tbl);

                    var rectangle = new Rectangle();
                    rectangle.Width = data.BarWidth;
                    double maxValue = AxisY.Titles.Max(i => i.Value);
                    rectangle.Height = (data.Value / maxValue) * (this.ActualHeight - BottomGrid.Height - HeaderHeight);
                    var linearBrush = new LinearGradientBrush()
                    {
                        StartPoint = new Point(1, 0),
                        EndPoint = new Point(1, 1),
                        GradientStops = new GradientStopCollection() {
                            new GradientStop()
                            {
                                Color = data.FillBrush, Offset = 0
                            }, new GradientStop()
                            {
                                Color = data.FillEndBrush, Offset = 1
                            }
                        }
                    };
                    rectangle.Fill = linearBrush;
                    rectangle.HorizontalAlignment = HorizontalAlignment.Center;

                    stackPanel.Children.Add(rectangle);
                    stackPanel.Margin = new Thickness(0, 0, -textBlockWidth / 2, 0);
                    stackPanel.VerticalAlignment = VerticalAlignment.Bottom;
                    stackPanel.HorizontalAlignment = HorizontalAlignment.Right;
                    Grid.SetColumn(stackPanel, index);
                    MainGridFrom0To1.Children.Add(stackPanel);
                    index++;
                }
            }
        }

        private void SetYTitlesContent()
        {
            var axisYModel = AxisY;
            if (axisYModel.Titles.Count > 0)
            {
                int gridRows = axisYModel.Titles.Count - 1;
                for (int i = 0; i < gridRows; i++)
                {
                    LeftGrid.RowDefinitions.Add(new RowDefinition());
                    MainGridForRow1.RowDefinitions.Add(new RowDefinition());
                }
                int index = 0;
                foreach (var title in axisYModel.Titles)
                {
                    var textblock = new TextBlock();
                    textblock.Text = title.Name;
                    textblock.Foreground = axisYModel.ForeGround;
                    textblock.HorizontalAlignment = HorizontalAlignment.Right;
                    textblock.Height = title.LabelHeight;
                    if (index < gridRows)
                    {
                        textblock.VerticalAlignment = VerticalAlignment.Bottom;
                        textblock.Margin = new Thickness(0, 0, 5, -title.LabelHeight / 2);//因為設定在行底部還不夠,必須往下移
                        Grid.SetRow(textblock, gridRows - index - 1);
                    }
                    else
                    {
                        textblock.VerticalAlignment = VerticalAlignment.Top;
                        textblock.Margin = new Thickness(0, -title.LabelHeight / 2, 5, 0);//最後一個,設定在頂部
                        Grid.SetRow(textblock, 0);
                    }
                    LeftGrid.Children.Add(textblock);

                    var border = new Border();
                    border.Height = title.LineHeight;
                    border.BorderBrush = title.LineBrush;
                    double thickness = Convert.ToDouble(title.LineHeight) / 2;
                    border.BorderThickness = new Thickness(0, thickness, 0, thickness);
                    if (index < gridRows)
                    {
                        border.VerticalAlignment = VerticalAlignment.Bottom;
                        border.Margin = new Thickness(0, 0, 0, -thickness);//因為設定在行底部還不夠,必須往下移
                        Grid.SetRow(border, gridRows - index - 1);
                    }
                    else
                    {
                        border.VerticalAlignment = VerticalAlignment.Top;
                        border.Margin = new Thickness(0, -thickness, 0, 0);//最後一個,設定在頂部
                        Grid.SetRow(border, 0);
                    }
                    Grid.SetColumn(border, 0);
                    Grid.SetColumnSpan(border, AxisX.Datas.Count + 1);
                    MainGridForRow1.Children.Add(border);
                    index++;
                }
            }
        }
        /// <summary>
        /// 設定分行
        /// </summary>
        /// <param name="leftGrid"></param>
        /// <param name="count"></param>
        private void SetGridRowDefinitions(Grid leftGrid, int count)
        {
            for (int i = 0; i < count; i++)
            {
                leftGrid.RowDefinitions.Add(new RowDefinition());
            }
        }
    }
    public class AxisXModel
    {
        private double _height = 20;
        /// <summary>
        /// 高度
        /// </summary>
        public double Height
        {
            get
            {
                return _height;
            }
            set { _height = value; }
        }

        private Brush _foreGround = Brushes.Black;
        /// <summary>
        /// 字型顔色
        /// </summary>
        public Brush ForeGround
        {
            get { return _foreGround; }
            set { _foreGround = value; }
        }

        List<AxisXDataModel> _datas = new List<AxisXDataModel>();
        /// <summary>
        /// 資料
        /// </summary>
        public List<AxisXDataModel> Datas
        {
            get { return _datas; }
            set { _datas = value; }
        }
    }
    public class AxisYModel
    {
        private double _width = 20;
        /// <summary>
        /// 寬度
        /// </summary>
        public double Width { get { return _width; } set { _width = value; } }

        private Brush _foreGround = Brushes.Black;
        /// <summary>
        /// 字型顔色
        /// </summary>
        public Brush ForeGround { get { return _foreGround; } set { _foreGround = value; } }

        List<AxisYDataModel> _titles = new List<AxisYDataModel>();
        /// <summary>
        /// 左側标題清單
        /// </summary>
        public List<AxisYDataModel> Titles
        {
            get { return _titles; }
            set { _titles = value; }
        }
    }
    public class AxisXDataModel : DataModel
    {
        private double _labelWidth = 20;
        /// <summary>
        /// 底部标簽-單個寬度
        /// </summary>
        public double LabelWidth
        {
            get { return _labelWidth; }
            set { _labelWidth = value; }
        }
        private double _barWidth = 20;
        /// <summary>
        /// Bar寬度
        /// </summary>
        public double BarWidth
        {
            get { return _barWidth; }
            set { _barWidth = value; }
        }

        private Color _fillBrush = Colors.Blue;
        /// <summary>
        /// Bar填充顔色
        /// </summary>
        public Color FillBrush
        {
            get
            {
                return _fillBrush;
            }
            set { _fillBrush = value; }
        }

        private Color _fillEndBrush = Colors.Blue;

        public Color FillEndBrush
        {
            get
            {
                return _fillEndBrush;
            }
            set { _fillEndBrush = value; }
        }
    }
    public class AxisYDataModel : DataModel
    {
        private double _labelHeight = 15;
        /// <summary>
        /// 左側标題欄-單個标題高度
        /// </summary>
        public double LabelHeight
        {
            get { return _labelHeight; }
            set { _labelHeight = value; }
        }
        private double _lineHeight = 0.2;
        /// <summary>
        /// GridLine高度
        /// </summary>
        public double LineHeight
        {
            get { return _lineHeight; }
            set { _lineHeight = value; }
        }

        private Brush _lineBrush = Brushes.Blue;
        /// <summary>
        /// Bar填充顔色
        /// </summary>
        public Brush LineBrush
        {
            get { return _lineBrush; }
            set { _lineBrush = value; }
        }
    }
    public class DataModel
    {
        /// <summary>
        /// 顯示名稱
        /// </summary>
        public string Name { get; set; }
        /// <summary>
        /// 值
        /// </summary>
        public double Value { get; set; }
    }

3、主界面引用

<Window
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:wpfApplication11="clr-namespace:WpfApplication11"
        x:Class="WpfApplication11.MainWindow"
        Title="MainWindow" Height="350" Width="600" Background="#FF7CADBD">
    <Grid>
        <wpfApplication11:BarChartControl BorderBrush="White" Width="500" Height="250" BorderThickness="2,0,2,0" HeaderHeight="20">
            <wpfApplication11:BarChartControl.AxisY>
                <wpfApplication11:AxisYModel Width="30" ForeGround="White">
                    <wpfApplication11:AxisYModel.Titles>
                        <wpfApplication11:AxisYDataModel Name="0" Value="0"></wpfApplication11:AxisYDataModel>
                        <wpfApplication11:AxisYDataModel Name="20" Value="20"></wpfApplication11:AxisYDataModel>
                        <wpfApplication11:AxisYDataModel Name="40" Value="40"></wpfApplication11:AxisYDataModel>
                        <wpfApplication11:AxisYDataModel Name="60" Value="60"></wpfApplication11:AxisYDataModel>
                        <wpfApplication11:AxisYDataModel Name="80" Value="80"></wpfApplication11:AxisYDataModel>
                        <wpfApplication11:AxisYDataModel Name="100" Value="100"></wpfApplication11:AxisYDataModel>
                    </wpfApplication11:AxisYModel.Titles>
                </wpfApplication11:AxisYModel>
            </wpfApplication11:BarChartControl.AxisY>
            <wpfApplication11:BarChartControl.AxisX>
                <wpfApplication11:AxisXModel Height="30" ForeGround="White">
                    <wpfApplication11:AxisXModel.Datas>
                        <wpfApplication11:AxisXDataModel Name="A" Value="100" FillBrush="DeepSkyBlue" FillEndBrush="#FF6CD7FB"></wpfApplication11:AxisXDataModel>
                        <wpfApplication11:AxisXDataModel Name="B" Value="50"  FillBrush="#FF06F906" FillEndBrush="#FF5CF95C"></wpfApplication11:AxisXDataModel>
                        <wpfApplication11:AxisXDataModel Name="C" Value="70"  FillBrush="Cyan" FillEndBrush="#FF4DFFFF"></wpfApplication11:AxisXDataModel>
                        <wpfApplication11:AxisXDataModel Name="D" Value="30" FillBrush="GreenYellow" FillEndBrush="#FFBFFD60"></wpfApplication11:AxisXDataModel>
                        <wpfApplication11:AxisXDataModel Name="E" Value="86" FillBrush="DarkOrchid" FillEndBrush="#FFCC73F7"></wpfApplication11:AxisXDataModel>
                        <wpfApplication11:AxisXDataModel Name="F" Value="60" FillBrush="Coral" FillEndBrush="#FFF9A181"></wpfApplication11:AxisXDataModel>
                    </wpfApplication11:AxisXModel.Datas>
                </wpfApplication11:AxisXModel>
            </wpfApplication11:BarChartControl.AxisX>
        </wpfApplication11:BarChartControl>
    </Grid>
</Window>

 以上是通過Grid均分布局來完成的。

之前也嘗試過用Canvas來布局，相對來說，在小範圍試用還是可以的，定義成控件還是不好，有點局限，比如寬度、高度等，有點死。

GitHub下載下傳位址：

https://github.com/Kybs0/WpfApplication9 https://github.com/Kybs0/WpfApplication9

1、UserControl界面

<UserControl x:Class="WpfApplication9.BarChartControl"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        mc:Ignorable="d" Height="200" Width="400"
        d:DesignHeight="200" d:DesignWidth="600" Loaded="BarChartControl_OnLoaded">
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="*"></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="Auto"></ColumnDefinition>
            <ColumnDefinition Width="*"></ColumnDefinition>
            <ColumnDefinition Width="Auto"></ColumnDefinition>
        </Grid.ColumnDefinitions>

        <Canvas x:Name="LeftCanvas" Grid.Row="0" Grid.Column="0" Width="30">
        </Canvas>
        <Border x:Name="MainBorder" Grid.Row="0" Grid.Column="1" BorderThickness="2,0,2,2" BorderBrush="Black" Padding="2,0,1,0">
            <Canvas x:Name="MainCanvas">

            </Canvas>
        </Border>
        <Canvas x:Name="RightCanvas" Grid.Row="0" Grid.Column="2">
        </Canvas>

        <Canvas x:Name="BottomCanvas" Grid.Row="1" Grid.Column="1" Height="30">
        </Canvas>
    </Grid>
</UserControl>

2、UserControl背景

public partial class BarChartControl : UserControl
    {
        public BarChartControl()
        {
            InitializeComponent();
        }

        public Brush BorderBrush
        {
            get { return (Brush) GetValue(BorderBrushProperty); }
            set { SetValue(BorderBrushProperty, value); }
        }

        public static readonly DependencyProperty BorderBrushProperty = DependencyProperty.Register("BorderBrush",
            typeof (Brush), typeof (BarChartControl),
            new PropertyMetadata(Brushes.Black));

        public Thickness BorderThickness
        {
            get { return (Thickness) GetValue(BorderThicknessProperty); }
            set { SetValue(BorderThicknessProperty, value); }
        }

        public static readonly DependencyProperty BorderThicknessProperty =
            DependencyProperty.Register("BorderThickness",
                typeof (Thickness), typeof (BarChartControl),
                new PropertyMetadata(new Thickness(1.0, 0.0, 1.0, 1.0)));

        public AxisYModel AxisY
        {
            get { return (AxisYModel) GetValue(AxisYProperty); }
            set { SetValue(AxisYProperty, value); }
        }

        public static readonly DependencyProperty AxisYProperty = DependencyProperty.Register("AxisY",
            typeof (AxisYModel), typeof (BarChartControl),
            new PropertyMetadata(new AxisYModel()));

        public AxisXModel AxisX
        {
            get { return (AxisXModel) GetValue(AxisXProperty); }
            set { SetValue(AxisXProperty, value); }
        }

        public static readonly DependencyProperty AxisXProperty = DependencyProperty.Register("AxisX",
            typeof (AxisXModel), typeof (BarChartControl),
            new PropertyMetadata(new AxisXModel()));

        private void BarChartControl_OnLoaded(object sender, RoutedEventArgs e)
        {
            MainBorder.BorderBrush = BorderBrush;
            MainBorder.BorderThickness = BorderThickness;

            SetYTitlesContent();

            SetXDatasContent();
        }

        private void SetXDatasContent()
        {
            var axisXModel = AxisX;
            if (axisXModel.Datas.Count > 0)
            {
                BottomCanvas.Height = axisXModel.Height;
                double width = MainBorder.ActualWidth;


                int count = axisXModel.Datas.Count;
                int index = 1;
                foreach (var data in axisXModel.Datas)
                {
                    var textblock = new TextBlock();
                    textblock.Text = data.Name;
                    textblock.Foreground = axisXModel.ForeGround;
                    textblock.TextAlignment = TextAlignment.Center;
                    //textblock.VerticalAlignment = VerticalAlignment.Top;
                    //textblock.Height = axisXModel.Height;
                    double textBlockWidth = axisXModel.LabelWidth;
                    textblock.Width = textBlockWidth;
                    //textblock.Padding = new Thickness(0, 0, 5, 0);
                    double leftLength = width*Convert.ToDouble(index)/(count + 1) - textBlockWidth/2;
                    Canvas.SetLeft(textblock, leftLength);
                    BottomCanvas.Children.Add(textblock);

                    var stackPanel = new StackPanel();
                    stackPanel.Orientation = Orientation.Vertical;

                    var tbl = new TextBlock();
                    tbl.Height = 15;
                    tbl.Margin = new Thickness(0, 0, 0, 5);
                    tbl.Text = data.Value.ToString();
                    stackPanel.Children.Add(tbl);

                    var rectangle = new Rectangle();
                    rectangle.Width = data.BarWidth;
                    double maxValue = AxisY.Titles.Max(i => i.Value);
                    rectangle.Height = (data.Value/maxValue)*MainCanvas.ActualHeight;
                    var linearBrush = new LinearGradientBrush()
                    {
                        StartPoint = new Point(1, 0),
                        EndPoint = new Point(1, 1),
                        GradientStops = new GradientStopCollection()
                        {
                            new GradientStop()
                            {
                                Color = data.FillBrush,
                                Offset = 0
                            },
                            new GradientStop()
                            {
                                Color = data.FillEndBrush,
                                Offset = 1
                            }
                        }
                    };
                    rectangle.Fill = linearBrush;
                    stackPanel.Children.Add(rectangle);

                    double leftBarLength = width*Convert.ToDouble(index)/(count + 1) - data.BarWidth/2;
                    Canvas.SetLeft(stackPanel, leftBarLength);

                    Canvas.SetTop(stackPanel, MainCanvas.ActualHeight - (rectangle.Height + 20));

                    MainCanvas.Children.Add(stackPanel);
                    index++;
                }
            }
        }

        private void SetYTitlesContent()
        {
            var axisYModel = AxisY;
            if (axisYModel.Titles.Count > 0)
            {
                LeftCanvas.Width = axisYModel.Width;
                double height = MainBorder.ActualHeight;

                int index = 0;
                int count = axisYModel.Titles.Count;
                foreach (var title in axisYModel.Titles)
                {
                    var textblock = new TextBlock();
                    textblock.Text = title.Name;
                    textblock.Foreground = axisYModel.ForeGround;
                    textblock.TextAlignment = TextAlignment.Right;
                    textblock.Width = axisYModel.Width;
                    double textBlockHeight = 18;
                    textblock.Height = textBlockHeight;
                    textblock.Padding = new Thickness(0, 0, 5, 0);
                    double topLength = height - height*Convert.ToDouble(index)/(count - 1) - textBlockHeight/2;
                    Canvas.SetTop(textblock, topLength);
                    LeftCanvas.Children.Add(textblock);

                    var path = new Path();
                    path.Stroke = Brushes.DodgerBlue;
                    path.StrokeThickness = 0.5;

                    var startPoint = new Point(0, height - height*Convert.ToDouble(index)/(count - 1));
                    var endPoint = new Point(MainCanvas.ActualWidth, height - height*Convert.ToDouble(index)/(count - 1));
                    path.Data = new PathGeometry()
                    {
                        Figures = new PathFigureCollection()
                        {
                            new PathFigure()
                            {
                                IsClosed = true,
                                StartPoint = startPoint,
                                Segments = new PathSegmentCollection()
                                {
                                    new LineSegment() {Point = endPoint}
                                }
                            }
                        }
                    };
                    MainCanvas.Children.Add(path);
                    index++;
                }
            }
        }
    }

    public class AxisXModel
    {
        public double Height { get; set; }

        private double _lableWidth = 50;

        public double LabelWidth
        {
            get { return _lableWidth; }
            set { _lableWidth = value; }
        }

        public Brush ForeGround { get; set; }
        private List<DataModel> _titles = new List<DataModel>();

        public List<DataModel> Datas
        {
            get { return _titles; }
            set { _titles = value; }
        }
    }

    public class AxisYModel
    {
        public double Width { get; set; }

        public Brush ForeGround { get; set; }

        private List<DataModel> _titles = new List<DataModel>();

        public List<DataModel> Titles
        {
            get { return _titles; }
            set { _titles = value; }
        }
    }

    public class DataModel
    {
        public string Name { get; set; }
        public double Value { get; set; }

        private double _barWidth = 20;

        public double BarWidth
        {
            get { return _barWidth; }
            set { _barWidth = value; }
        }

        public Color FillBrush { get; set; }
        public Color FillEndBrush { get; set; }
    }

3、引用

<Window x:Class="WpfApplication9.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:wpfApplication9="clr-namespace:WpfApplication9"
        Title="MainWindow" Height="350" Width="600" Background="LightGray">
    <Grid>
        <wpfApplication9:BarChartControl BorderBrush="White" Width="500" BorderThickness="2,0,2,0">
            <wpfApplication9:BarChartControl.AxisY>
                <wpfApplication9:AxisYModel Width="30" ForeGround="White">
                    <wpfApplication9:AxisYModel.Titles>
                        <wpfApplication9:DataModel Name="0" Value="0"></wpfApplication9:DataModel>
                        <wpfApplication9:DataModel Name="20" Value="20"></wpfApplication9:DataModel>
                        <wpfApplication9:DataModel Name="40" Value="40"></wpfApplication9:DataModel>
                        <wpfApplication9:DataModel Name="60" Value="60"></wpfApplication9:DataModel>
                        <wpfApplication9:DataModel Name="80" Value="80"></wpfApplication9:DataModel>
                        <wpfApplication9:DataModel Name="100" Value="100"></wpfApplication9:DataModel>
                        <wpfApplication9:DataModel Name="120" Value="120">
                        </wpfApplication9:DataModel>
                    </wpfApplication9:AxisYModel.Titles>
                </wpfApplication9:AxisYModel>
            </wpfApplication9:BarChartControl.AxisY>
            <wpfApplication9:BarChartControl.AxisX>
                <wpfApplication9:AxisXModel Height="30" ForeGround="White">
                    <wpfApplication9:AxisXModel.Datas>
                        <wpfApplication9:DataModel Name="A" Value="99" FillBrush="Red" FillEndBrush="#FFFD8585"></wpfApplication9:DataModel>
                        <wpfApplication9:DataModel Name="B" Value="20" FillBrush="Yellow" FillEndBrush="Yellow"></wpfApplication9:DataModel>
                        <wpfApplication9:DataModel Name="C" Value="40" FillBrush="Blue" FillEndBrush="Blue"></wpfApplication9:DataModel>
                        <wpfApplication9:DataModel Name="D" Value="60" FillBrush="Green" FillEndBrush="CornflowerBlue"></wpfApplication9:DataModel>
                        <wpfApplication9:DataModel Name="E" Value="80" FillBrush="DeepSkyBlue" FillEndBrush="CornflowerBlue"></wpfApplication9:DataModel>
                        <wpfApplication9:DataModel Name="F" Value="100" FillBrush="CornflowerBlue" FillEndBrush="CornflowerBlue"></wpfApplication9:DataModel>
                    </wpfApplication9:AxisXModel.Datas>
                </wpfApplication9:AxisXModel>
            </wpfApplication9:BarChartControl.AxisX>
        </wpfApplication9:BarChartControl>
    </Grid>
</Window>
