WPF 自定義BarChartControl（可左右滑動的柱狀圖）

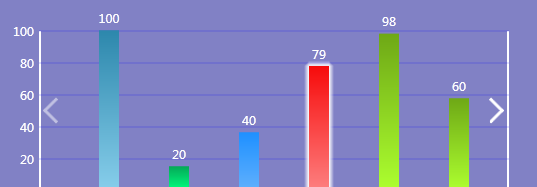

自定義可左右滑動、拖拽滑動的平面柱狀圖

在做這種樣式控件之前，可先浏覽我之前預研的控件：

A、

自定義左右滑動ScrollViewer(可拖動滑動） B、自定義Bar柱狀圖

OK，現在說下控件具體設計過程：

1）采用Grid布局，這樣可以将Y軸的标題設定平均高度，X軸的柱子也可以平均。

　　當然X軸也會存在一個問題，當資料較少時，隻有倆個柱子難道就布滿界面？

　　很簡單，在Grid中多添加一個ColumnDefinition就行了，柱子的寬度設定成可配置，額外的一個設定成預設填充。

2）Bar采用RadioButton,因為有Checked屬性，之後整個控件SelectionChanged的事件源可以從這來

3）滑動條容器，我這邊比較熟悉DevExpress控件，是以用的是ScrollBox，然後修改其中的模闆。

其它的一些設定比較簡單，就不說了，直接看代碼

1、UserControl界面

WPF 自定義BarChartControl（可左右滑動的柱狀圖）

<UserControl x:Class="BarChartControlDemo.BarChartControl"
            xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
            xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
            xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
            xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
            xmlns:dxlc="http://schemas.devexpress.com/winfx/2008/xaml/layoutcontrol"
            mc:Ignorable="d"
            d:DesignHeight="100" d:DesignWidth="200" Loaded="BarChartControl_OnLoaded">
    <UserControl.Resources>
        <Style x:Key="ScrollBarStyle1" TargetType="{x:Type ScrollBar}">
            <Setter Property="Template">
                <Setter.Value>
                    <ControlTemplate TargetType="{x:Type ScrollBar}">
                        <Grid Height="0"></Grid>
                    </ControlTemplate>
                </Setter.Value>
            </Setter>
        </Style>
        <ControlTemplate x:Key="LightedBtnTemplate" TargetType="RadioButton">
            <Grid>
                <Grid.RowDefinitions>
                    <RowDefinition Height="5"></RowDefinition>
                    <RowDefinition></RowDefinition>
                    <RowDefinition Height="5"></RowDefinition>
                </Grid.RowDefinitions>
                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="5"></ColumnDefinition>
                    <ColumnDefinition></ColumnDefinition>
                    <ColumnDefinition Width="5"></ColumnDefinition>
                </Grid.ColumnDefinitions>
                <Rectangle Grid.Row="1" Grid.Column="1" Fill="{TemplateBinding Background}"></Rectangle>

                <Grid x:Name="Grid_00" Grid.Row="0" Grid.Column="0"></Grid>
                <Grid x:Name="Grid_02" Grid.Row="0" Grid.Column="2"></Grid>
                <Grid x:Name="Grid_20" Grid.Row="2" Grid.Column="0"></Grid>
                <Grid x:Name="Grid_22" Grid.Row="2" Grid.Column="2"></Grid>
                <Grid x:Name="Grid_Top" Grid.Row="0" Grid.Column="1"></Grid>
                <Grid x:Name="Grid_Bottom" Grid.Row="2" Grid.Column="1"></Grid>
                <Grid x:Name="Grid_Left" Grid.Row="1" Grid.Column="0"></Grid>
                <Grid x:Name="Grid_Right" Grid.Row="1" Grid.Column="2"></Grid>
            </Grid>
            <ControlTemplate.Triggers>
                <Trigger Property="IsChecked" Value="True">
                    <Setter TargetName="Grid_00" Property="Background">
                        <Setter.Value>
                            <LinearGradientBrush StartPoint="1,1" EndPoint="0,0">
                                <GradientStop Color="White" Offset="0"></GradientStop>
                                <GradientStop Color="Transparent" Offset="0.5"></GradientStop>
                            </LinearGradientBrush>
                        </Setter.Value>
                    </Setter>
                    <Setter TargetName="Grid_02" Property="Background">
                        <Setter.Value>
                            <LinearGradientBrush StartPoint="0,1" EndPoint="1,0">
                                <GradientStop Color="White" Offset="0"></GradientStop>
                                <GradientStop Color="Transparent" Offset="0.5"></GradientStop>
                            </LinearGradientBrush>

                        </Setter.Value>
                    </Setter>
                    <Setter TargetName="Grid_20" Property="Background">
                        <Setter.Value>
                            <LinearGradientBrush StartPoint="1,0" EndPoint="0,1">
                                <GradientStop Color="White" Offset="0"></GradientStop>
                                <GradientStop Color="Transparent" Offset="0.5"></GradientStop>
                            </LinearGradientBrush>
                        </Setter.Value>
                    </Setter>
                    <Setter TargetName="Grid_22" Property="Background">
                        <Setter.Value>
                            <LinearGradientBrush StartPoint="0,0" EndPoint="1,1">
                                <GradientStop Color="White" Offset="0"></GradientStop>
                                <GradientStop Color="Transparent" Offset="0.5"></GradientStop>
                            </LinearGradientBrush>
                        </Setter.Value>
                    </Setter>
                    <Setter TargetName="Grid_Top" Property="Background">
                        <Setter.Value>
                            <LinearGradientBrush StartPoint="1,1" EndPoint="1,0">
                                <GradientStop Color="White" Offset="0"></GradientStop>
                                <GradientStop Color="Transparent" Offset="1"></GradientStop>
                            </LinearGradientBrush>
                        </Setter.Value>
                    </Setter>
                    <Setter TargetName="Grid_Bottom" Property="Background">
                        <Setter.Value>
                            <LinearGradientBrush StartPoint="1,0" EndPoint="1,1">
                                <GradientStop Color="White" Offset="0"></GradientStop>
                                <GradientStop Color="Transparent" Offset="1"></GradientStop>
                            </LinearGradientBrush>
                        </Setter.Value>
                    </Setter>
                    <Setter TargetName="Grid_Left" Property="Background">
                        <Setter.Value>
                            <LinearGradientBrush StartPoint="1,1" EndPoint="0,1">
                                <GradientStop Color="White" Offset="0"></GradientStop>
                                <GradientStop Color="Transparent" Offset="1"></GradientStop>
                            </LinearGradientBrush>
                        </Setter.Value>
                    </Setter>
                    <Setter TargetName="Grid_Right" Property="Background">
                        <Setter.Value>
                            <LinearGradientBrush StartPoint="0,1" EndPoint="1,1">
                                <GradientStop Color="White" Offset="0"></GradientStop>
                                <GradientStop Color="Transparent" Offset="1"></GradientStop>
                            </LinearGradientBrush>
                        </Setter.Value>
                    </Setter>
                </Trigger>
            </ControlTemplate.Triggers>
        </ControlTemplate>
    </UserControl.Resources>
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"></RowDefinition>
            <RowDefinition Height="*"></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="Auto"></ColumnDefinition>
            <ColumnDefinition Width="*"></ColumnDefinition>
            <ColumnDefinition Width="Auto"></ColumnDefinition>
        </Grid.ColumnDefinitions>
        <Grid x:Name="HeaderGrid" Grid.Row="0" Grid.Column="1" Height="20">
        </Grid>

        <Grid x:Name="LeftGrid" Grid.Row="1" Grid.Column="0" Width="20">
        </Grid>
        <Border x:Name="MainBorder" Grid.Row="1" Grid.Column="1" BorderThickness="2,0,2,0" BorderBrush="Black">
        </Border>
        <Grid x:Name="MainGridForRow1" Grid.Row="1" Grid.Column="1">

        </Grid>

        <Grid x:Name="MainGridFrom0To1Content" Grid.Row="0" Grid.RowSpan="3" Grid.Column="1">
            <dxlc:ScrollBox x:Name="MyScrollBoxFrom0To1" HorizontalScrollBarStyle="{StaticResource ScrollBarStyle1}" Padding="0" Margin="0">
                <Grid x:Name="MainBarContent" VerticalAlignment="Stretch">

                </Grid>
            </dxlc:ScrollBox>
            <Button x:Name="BtnLeft" Height="30" Margin="5" Opacity="0.5" Click="BtnLeft_OnClick" Background="Transparent" Content="向左滑" HorizontalAlignment="Left" Visibility="Visible">
                <Button.Template>
                    <ControlTemplate>
                        <Grid VerticalAlignment="Center">
                            <Path Stroke="White" StrokeThickness="3" Data="m0,13 L13,0"></Path>
                            <Path Stroke="White" StrokeThickness="3" Data="m0,11 L13,24"></Path>
                        </Grid>
                    </ControlTemplate>
                </Button.Template>
            </Button>
            <Button x:Name="BtnRight" Height="25" Margin="5" Click="BtnRight_OnClick" Background="Transparent" Content="向右滑" HorizontalAlignment="Right" Visibility="Visible">
                <Button.Template>
                    <ControlTemplate>
                        <Grid VerticalAlignment="Center">
                            <Path Stroke="White" StrokeThickness="3" Data="m13,13 L0,0"></Path>
                            <Path Stroke="White" StrokeThickness="3" Data="m13,11 L0,24"></Path>
                        </Grid>
                    </ControlTemplate>
                </Button.Template>
            </Button>
        </Grid>

        <!--<Grid x:Name="RightGrid" Grid.Row="1" Grid.Column="2">
            </Grid>-->

        <Grid x:Name="BottomGrid" Grid.Row="2" Grid.Column="1" Height="20">
        </Grid>
    </Grid>
</UserControl>

View Code

2、UserControl背景

WPF 自定義BarChartControl（可左右滑動的柱狀圖）

public partial class BarChartControl : UserControl
    {
        public BarChartControl()
        {
            InitializeComponent();
        }

        public Brush BorderBrush
        {
            get { return (Brush)GetValue(BorderBrushProperty); }
            set { SetValue(BorderBrushProperty, value); }
        }

        public static readonly DependencyProperty BorderBrushProperty = DependencyProperty.Register("BorderBrush",
        typeof(Brush), typeof(BarChartControl),
        new PropertyMetadata(Brushes.Black));

        public Thickness BorderThickness
        {
            get { return (Thickness)GetValue(BorderThicknessProperty); }
            set { SetValue(BorderThicknessProperty, value); }
        }

        public static readonly DependencyProperty BorderThicknessProperty = DependencyProperty.Register("BorderThickness",
        typeof(Thickness), typeof(BarChartControl),
        new PropertyMetadata(new Thickness(1.0, 0.0, 1.0, 1.0)));

        public AxisYModel AxisY
        {
            get { return (AxisYModel)GetValue(AxisYProperty); }
            set { SetValue(AxisYProperty, value); }
        }

        public static readonly DependencyProperty AxisYProperty = DependencyProperty.Register("AxisY",
        typeof(AxisYModel), typeof(BarChartControl),
        new PropertyMetadata(new AxisYModel()));

        public AxisXModel AxisX
        {
            get { return (AxisXModel)GetValue(AxisXProperty); }
            set { SetValue(AxisXProperty, value); }
        }

        public static readonly DependencyProperty AxisXProperty = DependencyProperty.Register("AxisX",
        typeof(AxisXModel), typeof(BarChartControl),
        new PropertyMetadata(new AxisXModel()));
        public double HeaderHeight
        {
            get { return (double)GetValue(HeaderHeightProperty); }
            set { SetValue(HeaderHeightProperty, value); }
        }
        public static readonly DependencyProperty HeaderHeightProperty = DependencyProperty.Register("HeaderHeight",
        typeof(double), typeof(BarChartControl), new PropertyMetadata(10.0));
        public string Header
        {
            get { return (string)GetValue(HeaderProperty); }
            set { SetValue(HeaderProperty, value); }
        }
        public static readonly DependencyProperty HeaderProperty = DependencyProperty.Register("Header",
        typeof(string), typeof(BarChartControl), new PropertyMetadata());

        private void BarChartControl_OnLoaded(object sender, RoutedEventArgs e)
        {
            MainBorder.BorderBrush = BorderBrush;
            MainBorder.BorderThickness = BorderThickness;

            HeaderGrid.Height = HeaderHeight;
            MainBarContent.Height = MyScrollBoxFrom0To1.ActualHeight - 17;
            LeftGrid.Width = AxisY.Width;

            SetYTitlesContent();

            SetXDatasContent();
        }

        private void SetXDatasContent()
        {
            var axisXModel = AxisX;
            if (axisXModel.Datas.Count > 0)
            {
                int count = axisXModel.Datas.Count;
                double barArea = axisXModel.BarWidth + axisXModel.MarginWidth * 2;

                for (int i = 0; i < count + 1; i++)
                {
                    MainBarContent.ColumnDefinitions.Add(new ColumnDefinition()
                    {
                        Width = new GridLength(barArea)
                    });
                }
                int index = 0;
                foreach (var data in axisXModel.Datas)
                {
                    //主内容
                    var stackPanel = new StackPanel();
                    stackPanel.Orientation = Orientation.Vertical;

                    var tbl = new TextBlock();
                    tbl.Height = 15;
                    tbl.Text = data.Value.ToString();
                    tbl.Foreground = axisXModel.ForeGround;
                    tbl.HorizontalAlignment = HorizontalAlignment.Center;
                    stackPanel.Children.Add(tbl);

                    var radioButton = new RadioButton();
                    radioButton.Template = (ControlTemplate)this.Resources["LightedBtnTemplate"];
                    radioButton.Width = axisXModel.BarWidth;
                    double maxValue = AxisY.Titles.Max(i => i.Value);
                    radioButton.Height = (data.Value / maxValue) * (this.ActualHeight - BottomGrid.Height - HeaderHeight + 10);
                    var linearBrush = new LinearGradientBrush()
                    {
                        StartPoint = new Point(1, 0),
                        EndPoint = new Point(1, 1),
                        GradientStops = new GradientStopCollection() {
                                            new GradientStop()
                                            {
                                                Color = data.FillBrush, Offset = 0
                                            }, new GradientStop()
                                            {
                                                Color = data.FillEndBrush, Offset = 1
                                            }
                                        }
                    };
                    radioButton.Background = linearBrush;
                    radioButton.HorizontalAlignment = HorizontalAlignment.Center;
                    radioButton.Click += RadioButton_OnClick;
                    stackPanel.Children.Add(radioButton);

                    //底部
                    var bottomTbl = new TextBlock();
                    bottomTbl.Text = data.Name;
                    bottomTbl.Foreground = axisXModel.ForeGround;
                    bottomTbl.VerticalAlignment = VerticalAlignment.Center;
                    bottomTbl.TextAlignment = TextAlignment.Center;
                    bottomTbl.HorizontalAlignment = HorizontalAlignment.Center;
                    double textBlockWidth = axisXModel.LabelWidth;
                    bottomTbl.Width = axisXModel.LabelWidth;

                    stackPanel.Children.Add(bottomTbl);
                    Grid.SetColumn(stackPanel, index);
                    stackPanel.Margin = new Thickness(0, 0, -textBlockWidth / 2, -17);
                    stackPanel.VerticalAlignment = VerticalAlignment.Bottom;
                    stackPanel.HorizontalAlignment = HorizontalAlignment.Right;

                    MainBarContent.Children.Add(stackPanel);
                    MainBarContent.Background = Brushes.Transparent;
                    index++;
                }
                double mainBarContentWidth = count * barArea;
                if (mainBarContentWidth > MainGridFrom0To1Content.ActualWidth)
                {
                    BtnLeft.Visibility = Visibility.Visible;
                    BtnRight.Visibility = Visibility.Visible;
                }
            }

        }

        public delegate void BarSelectionChangedEventArgs(object sender, RoutedEventArgs e);

        public event BarSelectionChangedEventArgs BarSelectionChanged;
        private void RadioButton_OnClick(object sender, RoutedEventArgs e)
        {
            var currentButton = sender as RadioButton;
            foreach (var element in MainBarContent.Children)
            {
                var stackPanel = element as StackPanel;
                var button = stackPanel.Children[1] as RadioButton;
                if (button != currentButton)
                {
                    button.IsChecked = false;
                }
            }
            if (BarSelectionChanged!=null)
            {
                BarSelectionChanged(sender, e);
            }
        }
        private void SetYTitlesContent()
        {
            var axisYModel = AxisY;
            if (axisYModel.Titles.Count > 0)
            {
                int gridRows = axisYModel.Titles.Count - 1;
                for (int i = 0; i < gridRows; i++)
                {
                    LeftGrid.RowDefinitions.Add(new RowDefinition());
                    MainGridForRow1.RowDefinitions.Add(new RowDefinition());
                }
                int index = 0;
                foreach (var title in axisYModel.Titles)
                {
                    var textblock = new TextBlock();
                    textblock.Text = title.Name;
                    textblock.Foreground = axisYModel.ForeGround;
                    textblock.HorizontalAlignment = HorizontalAlignment.Right;
                    textblock.Height = axisYModel.LabelHeight;
                    if (index < gridRows)
                    {
                        textblock.VerticalAlignment = VerticalAlignment.Bottom;
                        textblock.Margin = new Thickness(0, 0, 5, -axisYModel.LabelHeight / 2);//因為設定在行底部還不夠,必須往下移
                        Grid.SetRow(textblock, gridRows - index - 1);
                    }
                    else
                    {
                        textblock.VerticalAlignment = VerticalAlignment.Top;
                        textblock.Margin = new Thickness(0, -axisYModel.LabelHeight / 2, 5, 0);//最後一個,設定在頂部
                        Grid.SetRow(textblock, 0);
                    }
                    LeftGrid.Children.Add(textblock);

                    var border = new Border();
                    border.Height = axisYModel.LineHeight;
                    border.BorderBrush = axisYModel.LineBrush;
                    double thickness = Convert.ToDouble(axisYModel.LineHeight) / 2;
                    border.BorderThickness = new Thickness(0, thickness, 0, thickness);
                    if (index < gridRows)
                    {
                        border.VerticalAlignment = VerticalAlignment.Bottom;
                        border.Margin = new Thickness(0, 0, 0, -thickness);//因為設定在行底部還不夠,必須往下移
                        Grid.SetRow(border, gridRows - index - 1);
                    }
                    else
                    {
                        border.VerticalAlignment = VerticalAlignment.Top;
                        border.Margin = new Thickness(0, -thickness, 0, 0);//最後一個,設定在頂部
                        Grid.SetRow(border, 0);
                    }
                    Grid.SetColumn(border, 0);
                    Grid.SetColumnSpan(border, AxisX.Datas.Count + 1);
                    MainGridForRow1.Children.Add(border);
                    index++;
                }
            }
        }
        /// <summary>
        /// 設定分行
        /// </summary>
        /// <param name="leftGrid"></param>
        /// <param name="count"></param>
        private void SetGridRowDefinitions(Grid leftGrid, int count)
        {
            for (int i = 0; i < count; i++)
            {
                leftGrid.RowDefinitions.Add(new RowDefinition());
            }
        }
        /// <summary>
        /// 向左滑動
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void BtnLeft_OnClick(object sender, RoutedEventArgs e)
        {
            var startOffset = MyScrollBoxFrom0To1.HorizontalOffset;
            if (startOffset <= _lastHorizontalOffset)
            {
                MyScrollBoxFrom0To1.HorizontalOffset = startOffset - 100;
                _lastHorizontalOffset = startOffset - 100;
            }
            else if (startOffset > _lastHorizontalOffset)
            {
                BtnLeft.Opacity = 0.5;
            }
            BtnRight.Opacity = 1;
        }

        private double _lastHorizontalOffset = 0;
        /// <summary>
        /// 向右滑動
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void BtnRight_OnClick(object sender, RoutedEventArgs e)
        {
            var startOffset = MyScrollBoxFrom0To1.HorizontalOffset;
            if (startOffset >= _lastHorizontalOffset)
            {
                MyScrollBoxFrom0To1.HorizontalOffset = startOffset + 100;
                _lastHorizontalOffset = startOffset + 100;
            }
            else if (startOffset < _lastHorizontalOffset)
            {
                BtnRight.Opacity = 0.5;
            }
            BtnLeft.Opacity = 1;
        }
    }
    #region XDataModel
    public class AxisXModel
    {
        private double _labelWidth = 20;
        /// <summary>
        /// 底部标簽-單個寬度
        /// </summary>
        public double LabelWidth
        {
            get { return _labelWidth; }
            set { _labelWidth = value; }
        }
        private double _marginWidth = 20;
        /// <summary>
        /// Bar間隔寬度
        /// </summary>
        public double MarginWidth
        {
            get { return _marginWidth; }
            set { _marginWidth = value; }
        }
        private double _height = 20;
        /// <summary>
        /// 高度
        /// </summary>
        public double Height
        {
            get
            {
                return _height;
            }
            set { _height = value; }
        }

        private Brush _foreGround = Brushes.Black;
        /// <summary>
        /// 字型顔色
        /// </summary>
        public Brush ForeGround
        {
            get { return _foreGround; }
            set { _foreGround = value; }
        }
        private double _barWidth = 30;
        /// <summary>
        /// Bar寬度
        /// </summary>
        public double BarWidth
        {
            get { return _barWidth; }
            set { _barWidth = value; }
        }
        List<AxisXDataModel> _datas = new List<AxisXDataModel>();
        /// <summary>
        /// 資料
        /// </summary>
        public List<AxisXDataModel> Datas
        {
            get { return _datas; }
            set { _datas = value; }
        }
    }
    public class AxisXDataModel : DataModel
    {

        private Color _fillBrush = Colors.Blue;
        /// <summary>
        /// Bar填充顔色
        /// </summary>
        public Color FillBrush
        {
            get
            {
                return _fillBrush;
            }
            set { _fillBrush = value; }
        }

        private Color _fillEndBrush = Colors.Blue;

        public Color FillEndBrush
        {
            get
            {
                return _fillEndBrush;
            }
            set { _fillEndBrush = value; }
        }
    }
    #endregion

    #region YDataModel
    public class AxisYModel
    {
        private double _width = 20;
        /// <summary>
        /// 寬度
        /// </summary>
        public double Width { get { return _width; } set { _width = value; } }

        private Brush _foreGround = Brushes.Black;
        /// <summary>
        /// 字型顔色
        /// </summary>
        public Brush ForeGround { get { return _foreGround; } set { _foreGround = value; } }

        private double _labelHeight = 15;
        /// <summary>
        /// 左側标題欄-單個标題高度
        /// </summary>
        public double LabelHeight
        {
            get { return _labelHeight; }
            set { _labelHeight = value; }
        }
        private double _lineHeight = 0.2;
        /// <summary>
        /// GridLine高度
        /// </summary>
        public double LineHeight
        {
            get { return _lineHeight; }
            set { _lineHeight = value; }
        }


        private Brush _lineBrush = Brushes.Blue;
        /// <summary>
        /// Bar填充顔色
        /// </summary>
        public Brush LineBrush
        {
            get { return _lineBrush; }
            set { _lineBrush = value; }
        }

        List<AxisYDataModel> _titles = new List<AxisYDataModel>();
        /// <summary>
        /// 左側标題清單
        /// </summary>
        public List<AxisYDataModel> Titles
        {
            get { return _titles; }
            set { _titles = value; }
        }
    }
    public class AxisYDataModel : DataModel
    {

    }
    #endregion

    public class DataModel
    {
        /// <summary>
        /// 顯示名稱
        /// </summary>
        public string Name { get; set; }

        /// <summary>
        /// 值
        /// </summary>
        public double Value { get; set; }
    }

3、控件引用

WPF 自定義BarChartControl（可左右滑動的柱狀圖）

<barChartControlDemo:BarChartControl BorderBrush="White" Width="500" Height="200" BorderThickness="2,0,2,0" HeaderHeight="20" BarSelectionChanged="BarChartControl_OnBarSelectionChanged">
        <barChartControlDemo:BarChartControl.AxisY>
            <barChartControlDemo:AxisYModel Width="30" ForeGround="White">
                <barChartControlDemo:AxisYModel.Titles>
                    <barChartControlDemo:AxisYDataModel Name="0" Value="0"></barChartControlDemo:AxisYDataModel>
                    <barChartControlDemo:AxisYDataModel Name="20" Value="20"></barChartControlDemo:AxisYDataModel>
                    <barChartControlDemo:AxisYDataModel Name="40" Value="40"></barChartControlDemo:AxisYDataModel>
                    <barChartControlDemo:AxisYDataModel Name="60" Value="60"></barChartControlDemo:AxisYDataModel>
                    <barChartControlDemo:AxisYDataModel Name="80" Value="80"></barChartControlDemo:AxisYDataModel>
                    <barChartControlDemo:AxisYDataModel Name="100" Value="100"></barChartControlDemo:AxisYDataModel>
                </barChartControlDemo:AxisYModel.Titles>
            </barChartControlDemo:AxisYModel>
        </barChartControlDemo:BarChartControl.AxisY>
        <barChartControlDemo:BarChartControl.AxisX>
            <barChartControlDemo:AxisXModel Height="30" ForeGround="White" LabelWidth="60">
                <barChartControlDemo:AxisXModel.Datas>
                    <barChartControlDemo:AxisXDataModel Name="C#" Value="100" FillBrush="#FF2C87AC" FillEndBrush="SkyBlue"></barChartControlDemo:AxisXDataModel>
                    <barChartControlDemo:AxisXDataModel Name="Java" Value="20" FillBrush="#FF04A856" FillEndBrush="SpringGreen"></barChartControlDemo:AxisXDataModel>
                    <barChartControlDemo:AxisXDataModel Name="Php" Value="40" FillBrush="DodgerBlue" FillEndBrush="#FF60B0FD"></barChartControlDemo:AxisXDataModel>
                    <barChartControlDemo:AxisXDataModel Name="Winform" Value="79" FillBrush="#FFF70B0B" FillEndBrush="#FFFD7F7F"></barChartControlDemo:AxisXDataModel>
                    <barChartControlDemo:AxisXDataModel Name="Silverlight" Value="98" FillBrush="#FF6EA816" FillEndBrush="GreenYellow"></barChartControlDemo:AxisXDataModel>
                    <barChartControlDemo:AxisXDataModel Name="Mvc" Value="60" FillBrush="#FF6EA816" FillEndBrush="GreenYellow"></barChartControlDemo:AxisXDataModel>
                    <barChartControlDemo:AxisXDataModel Name="Python" Value="81" FillBrush="#FFF70B0B" FillEndBrush="#FFFD7F7F"></barChartControlDemo:AxisXDataModel>
                    <barChartControlDemo:AxisXDataModel Name="Ruby" Value="0" FillBrush="DodgerBlue" FillEndBrush="#FF60B0FD"></barChartControlDemo:AxisXDataModel>
                    <barChartControlDemo:AxisXDataModel Name="Linux" Value="99" FillBrush="DodgerBlue" FillEndBrush="#FF60B0FD"></barChartControlDemo:AxisXDataModel>
                    <barChartControlDemo:AxisXDataModel Name="VB" Value="45" FillBrush="DodgerBlue" FillEndBrush="#FF60B0FD"></barChartControlDemo:AxisXDataModel>
                </barChartControlDemo:AxisXModel.Datas>
            </barChartControlDemo:AxisXModel>
        </barChartControlDemo:BarChartControl.AxisX>
    </barChartControlDemo:BarChartControl>

GitHub下載下傳位址：

https://github.com/Kybs0/BarChartControlDemo/

如果需要不同的柱狀圖疊加：

Demo如下

UserControl：

WPF 自定義BarChartControl（可左右滑動的柱狀圖）

<UserControl x:Class="BarChartControlDemo.BarChartControl"
            xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
            xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
            xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
            xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
            xmlns:dxlc="http://schemas.devexpress.com/winfx/2008/xaml/layoutcontrol"
            mc:Ignorable="d"
            d:DesignHeight="100" d:DesignWidth="200" Loaded="BarChartControl_OnLoaded">
    <UserControl.Resources>
        <Style x:Key="ScrollBarStyle1" TargetType="{x:Type ScrollBar}">
            <Setter Property="Template">
                <Setter.Value>
                    <ControlTemplate TargetType="{x:Type ScrollBar}">
                        <Grid Height="0"></Grid>
                    </ControlTemplate>
                </Setter.Value>
            </Setter>
        </Style>
        <ControlTemplate x:Key="LightedBtnTemplate" TargetType="RadioButton">
            <Grid Margin="-5">
                <Grid.RowDefinitions>
                    <RowDefinition Height="5"></RowDefinition>
                    <RowDefinition></RowDefinition>
                    <RowDefinition Height="5"></RowDefinition>
                </Grid.RowDefinitions>
                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="5"></ColumnDefinition>
                    <ColumnDefinition></ColumnDefinition>
                    <ColumnDefinition Width="5"></ColumnDefinition>
                </Grid.ColumnDefinitions>
                <Rectangle Grid.Row="1" Grid.Column="1" Fill="{TemplateBinding Background}"></Rectangle>

                <Grid x:Name="Grid_00" Grid.Row="0" Grid.Column="0"></Grid>
                <Grid x:Name="Grid_02" Grid.Row="0" Grid.Column="2"></Grid>
                <Grid x:Name="Grid_20" Grid.Row="2" Grid.Column="0"></Grid>
                <Grid x:Name="Grid_22" Grid.Row="2" Grid.Column="2"></Grid>
                <Grid x:Name="Grid_Top" Grid.Row="0" Grid.Column="1"></Grid>
                <Grid x:Name="Grid_Bottom" Grid.Row="2" Grid.Column="1"></Grid>
                <Grid x:Name="Grid_Left" Grid.Row="1" Grid.Column="0"></Grid>
                <Grid x:Name="Grid_Right" Grid.Row="1" Grid.Column="2"></Grid>
            </Grid>
            <ControlTemplate.Triggers>
                <Trigger Property="IsChecked" Value="True">
                    <Setter TargetName="Grid_00" Property="Background">
                        <Setter.Value>
                            <LinearGradientBrush StartPoint="1,1" EndPoint="0,0">
                                <GradientStop Color="White" Offset="0"></GradientStop>
                                <GradientStop Color="Transparent" Offset="0.5"></GradientStop>
                            </LinearGradientBrush>
                        </Setter.Value>
                    </Setter>
                    <Setter TargetName="Grid_02" Property="Background">
                        <Setter.Value>
                            <LinearGradientBrush StartPoint="0,1" EndPoint="1,0">
                                <GradientStop Color="White" Offset="0"></GradientStop>
                                <GradientStop Color="Transparent" Offset="0.5"></GradientStop>
                            </LinearGradientBrush>

                        </Setter.Value>
                    </Setter>
                    <Setter TargetName="Grid_20" Property="Background">
                        <Setter.Value>
                            <LinearGradientBrush StartPoint="1,0" EndPoint="0,1">
                                <GradientStop Color="White" Offset="0"></GradientStop>
                                <GradientStop Color="Transparent" Offset="0.5"></GradientStop>
                            </LinearGradientBrush>
                        </Setter.Value>
                    </Setter>
                    <Setter TargetName="Grid_22" Property="Background">
                        <Setter.Value>
                            <LinearGradientBrush StartPoint="0,0" EndPoint="1,1">
                                <GradientStop Color="White" Offset="0"></GradientStop>
                                <GradientStop Color="Transparent" Offset="0.5"></GradientStop>
                            </LinearGradientBrush>
                        </Setter.Value>
                    </Setter>
                    <Setter TargetName="Grid_Top" Property="Background">
                        <Setter.Value>
                            <LinearGradientBrush StartPoint="1,1" EndPoint="1,0">
                                <GradientStop Color="White" Offset="0"></GradientStop>
                                <GradientStop Color="Transparent" Offset="1"></GradientStop>
                            </LinearGradientBrush>
                        </Setter.Value>
                    </Setter>
                    <Setter TargetName="Grid_Bottom" Property="Background">
                        <Setter.Value>
                            <LinearGradientBrush StartPoint="1,0" EndPoint="1,1">
                                <GradientStop Color="White" Offset="0"></GradientStop>
                                <GradientStop Color="Transparent" Offset="1"></GradientStop>
                            </LinearGradientBrush>
                        </Setter.Value>
                    </Setter>
                    <Setter TargetName="Grid_Left" Property="Background">
                        <Setter.Value>
                            <LinearGradientBrush StartPoint="1,1" EndPoint="0,1">
                                <GradientStop Color="White" Offset="0"></GradientStop>
                                <GradientStop Color="Transparent" Offset="1"></GradientStop>
                            </LinearGradientBrush>
                        </Setter.Value>
                    </Setter>
                    <Setter TargetName="Grid_Right" Property="Background">
                        <Setter.Value>
                            <LinearGradientBrush StartPoint="0,1" EndPoint="1,1">
                                <GradientStop Color="White" Offset="0"></GradientStop>
                                <GradientStop Color="Transparent" Offset="1"></GradientStop>
                            </LinearGradientBrush>
                        </Setter.Value>
                    </Setter>
                </Trigger>
            </ControlTemplate.Triggers>
        </ControlTemplate>
    </UserControl.Resources>
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"></RowDefinition>
            <RowDefinition Height="*"></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="Auto"></ColumnDefinition>
            <ColumnDefinition Width="*"></ColumnDefinition>
            <ColumnDefinition Width="Auto"></ColumnDefinition>
        </Grid.ColumnDefinitions>
        <Grid x:Name="HeaderGrid" Grid.Row="0" Grid.Column="1" Height="20">
        </Grid>

        <Grid x:Name="LeftGrid" Grid.Row="1" Grid.Column="0" Width="20">
        </Grid>
        <Border x:Name="MainBorder" Grid.Row="1" Grid.Column="1" BorderThickness="2,0,2,0" BorderBrush="Black">
        </Border>
        <Grid x:Name="MainGridForRow1" Grid.Row="1" Grid.Column="1">

        </Grid>

        <Grid x:Name="MainGridFrom0To1Content" Grid.Row="0" Grid.RowSpan="3" Grid.Column="1">
            <dxlc:ScrollBox x:Name="MyScrollBoxFrom0To1" HorizontalScrollBarStyle="{StaticResource ScrollBarStyle1}" Padding="0" Margin="0">
                <Grid x:Name="MainBarContent" VerticalAlignment="Stretch">

                </Grid>
            </dxlc:ScrollBox>
            <Button x:Name="BtnLeft" Height="30" Margin="5" Opacity="0.5" Click="BtnLeft_OnClick" Background="Transparent" Content="向左滑" HorizontalAlignment="Left" Visibility="Visible">
                <Button.Template>
                    <ControlTemplate>
                        <Grid VerticalAlignment="Center">
                            <Path Stroke="White" StrokeThickness="3" Data="m0,13 L13,0"></Path>
                            <Path Stroke="White" StrokeThickness="3" Data="m0,11 L13,24"></Path>
                        </Grid>
                    </ControlTemplate>
                </Button.Template>
            </Button>
            <Button x:Name="BtnRight" Height="25" Margin="5" Click="BtnRight_OnClick" Background="Transparent" Content="向右滑" HorizontalAlignment="Right" Visibility="Visible">
                <Button.Template>
                    <ControlTemplate>
                        <Grid VerticalAlignment="Center">
                            <Path Stroke="White" StrokeThickness="3" Data="m13,13 L0,0"></Path>
                            <Path Stroke="White" StrokeThickness="3" Data="m13,11 L0,24"></Path>
                        </Grid>
                    </ControlTemplate>
                </Button.Template>
            </Button>
        </Grid>

        <!--<Grid x:Name="RightGrid" Grid.Row="1" Grid.Column="2">
            </Grid>-->

        <Grid x:Name="BottomGrid" Grid.Row="2" Grid.Column="1" Height="20">
        </Grid>
    </Grid>
</UserControl>

WPF 自定義BarChartControl（可左右滑動的柱狀圖）

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;

namespace BarChartControlDemo
{
    /// <summary>
    /// Interaction logic for BarChartControl.xaml
    /// </summary>
    public partial class BarChartControl : UserControl
    {
        public BarChartControl()
        {
            InitializeComponent();
        }

        public Brush BorderBrush
        {
            get { return (Brush)GetValue(BorderBrushProperty); }
            set { SetValue(BorderBrushProperty, value); }
        }

        public static readonly DependencyProperty BorderBrushProperty = DependencyProperty.Register("BorderBrush",
        typeof(Brush), typeof(BarChartControl),
        new PropertyMetadata(Brushes.Black));

        public Thickness BorderThickness
        {
            get { return (Thickness)GetValue(BorderThicknessProperty); }
            set { SetValue(BorderThicknessProperty, value); }
        }

        public static readonly DependencyProperty BorderThicknessProperty = DependencyProperty.Register("BorderThickness",
        typeof(Thickness), typeof(BarChartControl),
        new PropertyMetadata(new Thickness(1.0, 0.0, 1.0, 1.0)));

        public AxisYModel AxisY
        {
            get { return (AxisYModel)GetValue(AxisYProperty); }
            set { SetValue(AxisYProperty, value); }
        }

        public static readonly DependencyProperty AxisYProperty = DependencyProperty.Register("AxisY",
        typeof(AxisYModel), typeof(BarChartControl),
        new PropertyMetadata(new AxisYModel()));

        public AxisXModel AxisX
        {
            get { return (AxisXModel)GetValue(AxisXProperty); }
            set { SetValue(AxisXProperty, value); }
        }

        public static readonly DependencyProperty AxisXProperty = DependencyProperty.Register("AxisX",
        typeof(AxisXModel), typeof(BarChartControl),
        new PropertyMetadata(new AxisXModel()));
        public double HeaderHeight
        {
            get { return (double)GetValue(HeaderHeightProperty); }
            set { SetValue(HeaderHeightProperty, value); }
        }
        public static readonly DependencyProperty HeaderHeightProperty = DependencyProperty.Register("HeaderHeight",
        typeof(double), typeof(BarChartControl), new PropertyMetadata(10.0));
        public string Header
        {
            get { return (string)GetValue(HeaderProperty); }
            set { SetValue(HeaderProperty, value); }
        }
        public static readonly DependencyProperty HeaderProperty = DependencyProperty.Register("Header",
        typeof(string), typeof(BarChartControl), new PropertyMetadata());

        private void BarChartControl_OnLoaded(object sender, RoutedEventArgs e)
        {
            MainBorder.BorderBrush = BorderBrush;
            MainBorder.BorderThickness = BorderThickness;

            HeaderGrid.Height = HeaderHeight;
            MainBarContent.Height = MyScrollBoxFrom0To1.ActualHeight - 17;
            LeftGrid.Width = AxisY.Width;

            SetYTitlesContent();

            SetXDatasContent();
        }

        private void SetXDatasContent()
        {
            var axisXModel = AxisX;
            if (axisXModel.Datas.Count > 0)
            {
                int count = axisXModel.Datas[0].Datas.Count;
                double barArea = axisXModel.BarWidth + axisXModel.MarginWidth * 2;

                for (int i = 0; i < count + 1; i++)
                {
                    MainBarContent.ColumnDefinitions.Add(new ColumnDefinition()
                    {
                        Width = new GridLength(barArea)
                    });
                }
                for (int index = 0; index < axisXModel.Datas[0].Datas.Count; index++)
                {
                    //主内容
                    var stackPanel = new StackPanel();
                    stackPanel.Orientation = Orientation.Vertical;

                    var tbl = new TextBlock();
                    tbl.Height = 15;
                    tbl.Text = string.Empty;
                    if (axisXModel.Datas.Count<=1)
                    {
                        tbl.Text = axisXModel.Datas[0].Datas[index].ToString();
                    }
                    tbl.Foreground = axisXModel.ForeGround;
                    tbl.HorizontalAlignment = HorizontalAlignment.Center;
                    tbl.Margin=new Thickness(0,0,0,5);
                    stackPanel.Children.Add(tbl);

                    double allChartHeight = this.ActualHeight - BottomGrid.Height - HeaderHeight;
                    foreach (var data in axisXModel.Datas)
                    {
                        var currentChartData = data.Datas[index];
                        var radioButton = new RadioButton();
                        radioButton.Template = (ControlTemplate)this.Resources["LightedBtnTemplate"];
                        radioButton.Width = axisXModel.BarWidth;
                        double maxValue = AxisY.Titles.Max(i => i.Value);
                        radioButton.Height = (currentChartData.Value / maxValue) * allChartHeight;
                        var linearBrush = new LinearGradientBrush()
                        {
                            StartPoint = new Point(1, 0),
                            EndPoint = new Point(1, 1),
                            GradientStops = new GradientStopCollection() {
                                                new GradientStop()
                                                {
                                                    Color = currentChartData.FillBrush, Offset = 0
                                                }, new GradientStop()
                                                {
                                                    Color = currentChartData.FillEndBrush, Offset = 1
                                                }
                                            }
                        };
                        radioButton.Background = linearBrush;
                        radioButton.HorizontalAlignment = HorizontalAlignment.Center;
                        radioButton.Click += RadioButton_OnClick;
                        stackPanel.Children.Add(radioButton);
                    }


                    //底部
                    var bottomTbl = new TextBlock();
                    bottomTbl.Text = axisXModel.Datas[0].Datas[index].Name;
                    bottomTbl.Foreground = axisXModel.ForeGround;
                    bottomTbl.VerticalAlignment = VerticalAlignment.Center;
                    bottomTbl.TextAlignment = TextAlignment.Center;
                    bottomTbl.HorizontalAlignment = HorizontalAlignment.Center;
                    double textBlockWidth = axisXModel.LabelWidth;
                    bottomTbl.Width = axisXModel.LabelWidth;
                    bottomTbl.Margin = new Thickness(0, 5, 0, 0);

                    stackPanel.Children.Add(bottomTbl);
                    Grid.SetColumn(stackPanel, index);
                    stackPanel.Margin = new Thickness(0, 0, -textBlockWidth / 2, -17);
                    stackPanel.VerticalAlignment = VerticalAlignment.Bottom;
                    stackPanel.HorizontalAlignment = HorizontalAlignment.Right;

                    MainBarContent.Children.Add(stackPanel);
                    MainBarContent.Background = Brushes.Transparent;
                }



                double mainBarContentWidth = count * barArea;
                if (mainBarContentWidth > MainGridFrom0To1Content.ActualWidth)
                {
                    BtnLeft.Visibility = Visibility.Visible;
                    BtnRight.Visibility = Visibility.Visible;
                }
            }

        }

        public delegate void BarSelectionChangedEventArgs(object sender, RoutedEventArgs e);

        public event BarSelectionChangedEventArgs BarSelectionChanged;
        private void RadioButton_OnClick(object sender, RoutedEventArgs e)
        {
            var currentButton = sender as RadioButton;
            foreach (var element in MainBarContent.Children)
            {
                var stackPanel = element as StackPanel;
                foreach (var child in stackPanel.Children)
                {
                    if (child is RadioButton&& child !=currentButton)
                    {
                        (child as RadioButton).IsChecked = false;
                    }
                }
            }
            if (BarSelectionChanged!=null)
            {
                BarSelectionChanged(sender, e);
            }
        }
        private void SetYTitlesContent()
        {
            var axisYModel = AxisY;
            if (axisYModel.Titles.Count > 0)
            {
                int gridRows = axisYModel.Titles.Count - 1;
                for (int i = 0; i < gridRows; i++)
                {
                    LeftGrid.RowDefinitions.Add(new RowDefinition());
                    MainGridForRow1.RowDefinitions.Add(new RowDefinition());
                }
                int index = 0;
                foreach (var title in axisYModel.Titles)
                {
                    var textblock = new TextBlock();
                    textblock.Text = title.Name;
                    textblock.Foreground = axisYModel.ForeGround;
                    textblock.HorizontalAlignment = HorizontalAlignment.Right;
                    textblock.Height = axisYModel.LabelHeight;
                    if (index < gridRows)
                    {
                        textblock.VerticalAlignment = VerticalAlignment.Bottom;
                        textblock.Margin = new Thickness(0, 0, 5, -axisYModel.LabelHeight / 2);//因為設定在行底部還不夠,必須往下移
                        Grid.SetRow(textblock, gridRows - index - 1);
                    }
                    else
                    {
                        textblock.VerticalAlignment = VerticalAlignment.Top;
                        textblock.Margin = new Thickness(0, -axisYModel.LabelHeight / 2, 5, 0);//最後一個,設定在頂部
                        Grid.SetRow(textblock, 0);
                    }
                    LeftGrid.Children.Add(textblock);

                    var border = new Border();
                    border.Height = axisYModel.LineHeight;
                    border.BorderBrush = axisYModel.LineBrush;
                    double thickness = Convert.ToDouble(axisYModel.LineHeight) / 2;
                    border.BorderThickness = new Thickness(0, thickness, 0, thickness);
                    if (index < gridRows)
                    {
                        border.VerticalAlignment = VerticalAlignment.Bottom;
                        border.Margin = new Thickness(0, 0, 0, -thickness);//因為設定在行底部還不夠,必須往下移
                        Grid.SetRow(border, gridRows - index - 1);
                    }
                    else
                    {
                        border.VerticalAlignment = VerticalAlignment.Top;
                        border.Margin = new Thickness(0, -thickness, 0, 0);//最後一個,設定在頂部
                        Grid.SetRow(border, 0);
                    }
                    Grid.SetColumn(border, 0);
                    Grid.SetColumnSpan(border, AxisX.Datas.Count + 1);
                    MainGridForRow1.Children.Add(border);
                    index++;
                }
            }
        }
        /// <summary>
        /// 設定分行
        /// </summary>
        /// <param name="leftGrid"></param>
        /// <param name="count"></param>
        private void SetGridRowDefinitions(Grid leftGrid, int count)
        {
            for (int i = 0; i < count; i++)
            {
                leftGrid.RowDefinitions.Add(new RowDefinition());
            }
        }
        /// <summary>
        /// 向左滑動
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void BtnLeft_OnClick(object sender, RoutedEventArgs e)
        {
            var startOffset = MyScrollBoxFrom0To1.HorizontalOffset;
            if (startOffset <= _lastHorizontalOffset)
            {
                MyScrollBoxFrom0To1.HorizontalOffset = startOffset - 100;
                _lastHorizontalOffset = startOffset - 100;
            }
            else if (startOffset > _lastHorizontalOffset)
            {
                BtnLeft.Opacity = 0.5;
            }
            BtnRight.Opacity = 1;
        }

        private double _lastHorizontalOffset = 0;
        /// <summary>
        /// 向右滑動
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void BtnRight_OnClick(object sender, RoutedEventArgs e)
        {
            var startOffset = MyScrollBoxFrom0To1.HorizontalOffset;
            if (startOffset >= _lastHorizontalOffset)
            {
                MyScrollBoxFrom0To1.HorizontalOffset = startOffset + 100;
                _lastHorizontalOffset = startOffset + 100;
            }
            else if (startOffset < _lastHorizontalOffset)
            {
                BtnRight.Opacity = 0.5;
            }
            BtnLeft.Opacity = 1;
        }
    }
    #region XDataModel
    public class AxisXModel
    {
        private double _labelWidth = 20;
        /// <summary>
        /// 底部标簽-單個寬度
        /// </summary>
        public double LabelWidth
        {
            get { return _labelWidth; }
            set { _labelWidth = value; }
        }
        private double _marginWidth = 20;
        /// <summary>
        /// Bar間隔寬度
        /// </summary>
        public double MarginWidth
        {
            get { return _marginWidth; }
            set { _marginWidth = value; }
        }
        private double _height = 20;
        /// <summary>
        /// 高度
        /// </summary>
        public double Height
        {
            get
            {
                return _height;
            }
            set { _height = value; }
        }

        private Brush _foreGround = Brushes.Black;
        /// <summary>
        /// 字型顔色
        /// </summary>
        public Brush ForeGround
        {
            get { return _foreGround; }
            set { _foreGround = value; }
        }
        private double _barWidth = 30;
        /// <summary>
        /// Bar寬度
        /// </summary>
        public double BarWidth
        {
            get { return _barWidth; }
            set { _barWidth = value; }
        }
        List<AxisXData> _datas = new List<AxisXData>();
        /// <summary>
        /// 資料集合
        /// </summary>
        public List<AxisXData> Datas
        {
            get { return _datas; }
            set { _datas = value; }
        }
    }
    /// <summary>
    /// 一組資料
    /// </summary>
    public class AxisXData
    {
        public string Name { get; set; }
        List<AxisXDataModel> _dataModels = new List<AxisXDataModel>();
        /// <summary>
        /// 資料
        /// </summary>
        public List<AxisXDataModel> Datas
        {
            get { return _dataModels; }
            set { _dataModels = value; }
        }
    }
    public class AxisXDataModel : DataModel
    {

        private Color _fillBrush = Colors.Blue;
        /// <summary>
        /// Bar填充顔色
        /// </summary>
        public Color FillBrush
        {
            get
            {
                return _fillBrush;
            }
            set { _fillBrush = value; }
        }

        private Color _fillEndBrush = Colors.Blue;

        public Color FillEndBrush
        {
            get
            {
                return _fillEndBrush;
            }
            set { _fillEndBrush = value; }
        }
    }
    #endregion

    #region YDataModel
    public class AxisYModel
    {
        private double _width = 20;
        /// <summary>
        /// 寬度
        /// </summary>
        public double Width { get { return _width; } set { _width = value; } }

        private Brush _foreGround = Brushes.Black;
        /// <summary>
        /// 字型顔色
        /// </summary>
        public Brush ForeGround { get { return _foreGround; } set { _foreGround = value; } }

        private double _labelHeight = 15;
        /// <summary>
        /// 左側标題欄-單個标題高度
        /// </summary>
        public double LabelHeight
        {
            get { return _labelHeight; }
            set { _labelHeight = value; }
        }
        private double _lineHeight = 0.2;
        /// <summary>
        /// GridLine高度
        /// </summary>
        public double LineHeight
        {
            get { return _lineHeight; }
            set { _lineHeight = value; }
        }


        private Brush _lineBrush = Brushes.Blue;
        /// <summary>
        /// Bar填充顔色
        /// </summary>
        public Brush LineBrush
        {
            get { return _lineBrush; }
            set { _lineBrush = value; }
        }

        List<AxisYDataModel> _titles = new List<AxisYDataModel>();
        /// <summary>
        /// 左側标題清單
        /// </summary>
        public List<AxisYDataModel> Titles
        {
            get { return _titles; }
            set { _titles = value; }
        }
    }
    public class AxisYDataModel : DataModel
    {

    }
    #endregion

    public class DataModel
    {
        /// <summary>
        /// 顯示名稱
        /// </summary>
        public string Name { get; set; }

        /// <summary>
        /// 值
        /// </summary>
        public double Value { get; set; }
    }
}

界面引用：

WPF 自定義BarChartControl（可左右滑動的柱狀圖）

<Window
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:barChartControlDemo="clr-namespace:BarChartControlDemo"
    x:Class="BarChartControlDemo.MainWindow"
Title="MainWindow" Height="350" Width="600" Background="#FF8181C5">
    <Grid>
    <barChartControlDemo:BarChartControl BorderBrush="White" Width="500" Height="200" BorderThickness="2,0,2,0" HeaderHeight="20" BarSelectionChanged="BarChartControl_OnBarSelectionChanged">
        <barChartControlDemo:BarChartControl.AxisY>
            <barChartControlDemo:AxisYModel Width="30" ForeGround="White">
                <barChartControlDemo:AxisYModel.Titles>
                    <barChartControlDemo:AxisYDataModel Name="0" Value="0"></barChartControlDemo:AxisYDataModel>
                    <barChartControlDemo:AxisYDataModel Name="20" Value="20"></barChartControlDemo:AxisYDataModel>
                    <barChartControlDemo:AxisYDataModel Name="40" Value="40"></barChartControlDemo:AxisYDataModel>
                    <barChartControlDemo:AxisYDataModel Name="60" Value="60"></barChartControlDemo:AxisYDataModel>
                    <barChartControlDemo:AxisYDataModel Name="80" Value="80"></barChartControlDemo:AxisYDataModel>
                    <barChartControlDemo:AxisYDataModel Name="100" Value="100"></barChartControlDemo:AxisYDataModel>
                </barChartControlDemo:AxisYModel.Titles>
            </barChartControlDemo:AxisYModel>
        </barChartControlDemo:BarChartControl.AxisY>
        <barChartControlDemo:BarChartControl.AxisX>
            <barChartControlDemo:AxisXModel Height="30" ForeGround="White" LabelWidth="60">
                <barChartControlDemo:AxisXModel.Datas>
                        <barChartControlDemo:AxisXData Name="第一組資料">
                            <barChartControlDemo:AxisXData.Datas>
                                <barChartControlDemo:AxisXDataModel Name="C#" Value="100" FillBrush="#FF2C87AC" FillEndBrush="SkyBlue"></barChartControlDemo:AxisXDataModel>
                                <barChartControlDemo:AxisXDataModel Name="Java" Value="20" FillBrush="#FF04A856" FillEndBrush="SpringGreen"></barChartControlDemo:AxisXDataModel>
                                <barChartControlDemo:AxisXDataModel Name="Php" Value="40" FillBrush="DodgerBlue" FillEndBrush="#FF60B0FD"></barChartControlDemo:AxisXDataModel>
                                <barChartControlDemo:AxisXDataModel Name="Winform" Value="79" FillBrush="#FFF70B0B" FillEndBrush="#FFFD7F7F"></barChartControlDemo:AxisXDataModel>
                                <barChartControlDemo:AxisXDataModel Name="Silverlight" Value="98" FillBrush="#FF6EA816" FillEndBrush="GreenYellow"></barChartControlDemo:AxisXDataModel>
                                <barChartControlDemo:AxisXDataModel Name="Mvc" Value="60" FillBrush="#FF6EA816" FillEndBrush="GreenYellow"></barChartControlDemo:AxisXDataModel>
                                <barChartControlDemo:AxisXDataModel Name="Python" Value="81" FillBrush="#FFF70B0B" FillEndBrush="#FFFD7F7F"></barChartControlDemo:AxisXDataModel>
                                <barChartControlDemo:AxisXDataModel Name="Ruby" Value="0" FillBrush="DodgerBlue" FillEndBrush="#FF60B0FD"></barChartControlDemo:AxisXDataModel>
                                <barChartControlDemo:AxisXDataModel Name="Linux" Value="99" FillBrush="DodgerBlue" FillEndBrush="#FF60B0FD"></barChartControlDemo:AxisXDataModel>
                                <barChartControlDemo:AxisXDataModel Name="VB" Value="45" FillBrush="DodgerBlue" FillEndBrush="#FF60B0FD"></barChartControlDemo:AxisXDataModel>
                            </barChartControlDemo:AxisXData.Datas>
                        </barChartControlDemo:AxisXData>
                        <barChartControlDemo:AxisXData Name="第二組資料">
                            <barChartControlDemo:AxisXData.Datas>
                                <barChartControlDemo:AxisXDataModel Name="C#" Value="0" FillBrush="#FFF70B0B" FillEndBrush="#FFFD7F7F"></barChartControlDemo:AxisXDataModel>
                                <barChartControlDemo:AxisXDataModel Name="Java" Value="20" FillBrush="DodgerBlue" FillEndBrush="#FF60B0FD"></barChartControlDemo:AxisXDataModel>
                                <barChartControlDemo:AxisXDataModel Name="Php" Value="40"  FillBrush="#FF6EA816" FillEndBrush="GreenYellow"></barChartControlDemo:AxisXDataModel>
                                <barChartControlDemo:AxisXDataModel Name="Winform" Value="10" FillBrush="DodgerBlue" FillEndBrush="#FF60B0FD"></barChartControlDemo:AxisXDataModel>
                                <barChartControlDemo:AxisXDataModel Name="Silverlight" Value="1" FillBrush="DodgerBlue" FillEndBrush="#FF60B0FD"></barChartControlDemo:AxisXDataModel>
                                <barChartControlDemo:AxisXDataModel Name="Mvc" Value="0"  FillBrush="DodgerBlue" FillEndBrush="#FF60B0FD"></barChartControlDemo:AxisXDataModel>
                                <barChartControlDemo:AxisXDataModel Name="Python" Value="2" FillBrush="DodgerBlue" FillEndBrush="#FF60B0FD"></barChartControlDemo:AxisXDataModel>
                                <barChartControlDemo:AxisXDataModel Name="Ruby" Value="20" FillBrush="Blue" FillEndBrush="CadetBlue"></barChartControlDemo:AxisXDataModel>
                                <barChartControlDemo:AxisXDataModel Name="Linux" Value="1" FillBrush="BlueViolet" FillEndBrush="PaleVioletRed"></barChartControlDemo:AxisXDataModel>
                                <barChartControlDemo:AxisXDataModel Name="VB" Value="20"  FillBrush="CornflowerBlue" FillEndBrush="PowderBlue"></barChartControlDemo:AxisXDataModel>
                            </barChartControlDemo:AxisXData.Datas>
                        </barChartControlDemo:AxisXData>
                    </barChartControlDemo:AxisXModel.Datas>
            </barChartControlDemo:AxisXModel>
        </barChartControlDemo:BarChartControl.AxisX>
    </barChartControlDemo:BarChartControl>
    </Grid>
</Window>

注：此案例需要下載下傳DevExpress控件~

作者：

唐宋元明清2188

出處：

http://www.cnblogs.com/kybs0/

本文版權歸作者和部落格園共有，歡迎轉載，但未經作者同意必須在文章頁面給出原文連接配接，否則保留追究法律責任的權利。

WPF 自定義BarChartControl（可左右滑動的柱狀圖）

繼續閱讀

samba伺服器的功能

AOP程式設計_Android優雅權限架構(1)概念基礎，2021金三銀四前言正文大綱正文

php 去掉字元串的最後一個字元及截取原字元串1,2,3,4,5,6,

Effective Java 8:通用程式設計

【Linux】UDP廣播封包接收速率問題

php——水印

OOM三種類型

工廠模式-三種類型

【python】netconf協定對接管理裝置

「Python 網絡自動化」NETCONF —— Python 使用 NETCONF 管理配置 H3C 網絡裝置

【遞歸】高效率求2的n次幂

win10本地scala和spark安裝安裝scala安裝spark

Linux裝置模型（中）之上層容器

scala (3) Function 和 Method

PowerPC平台 Linux移植三

在python中建立excel并寫入
